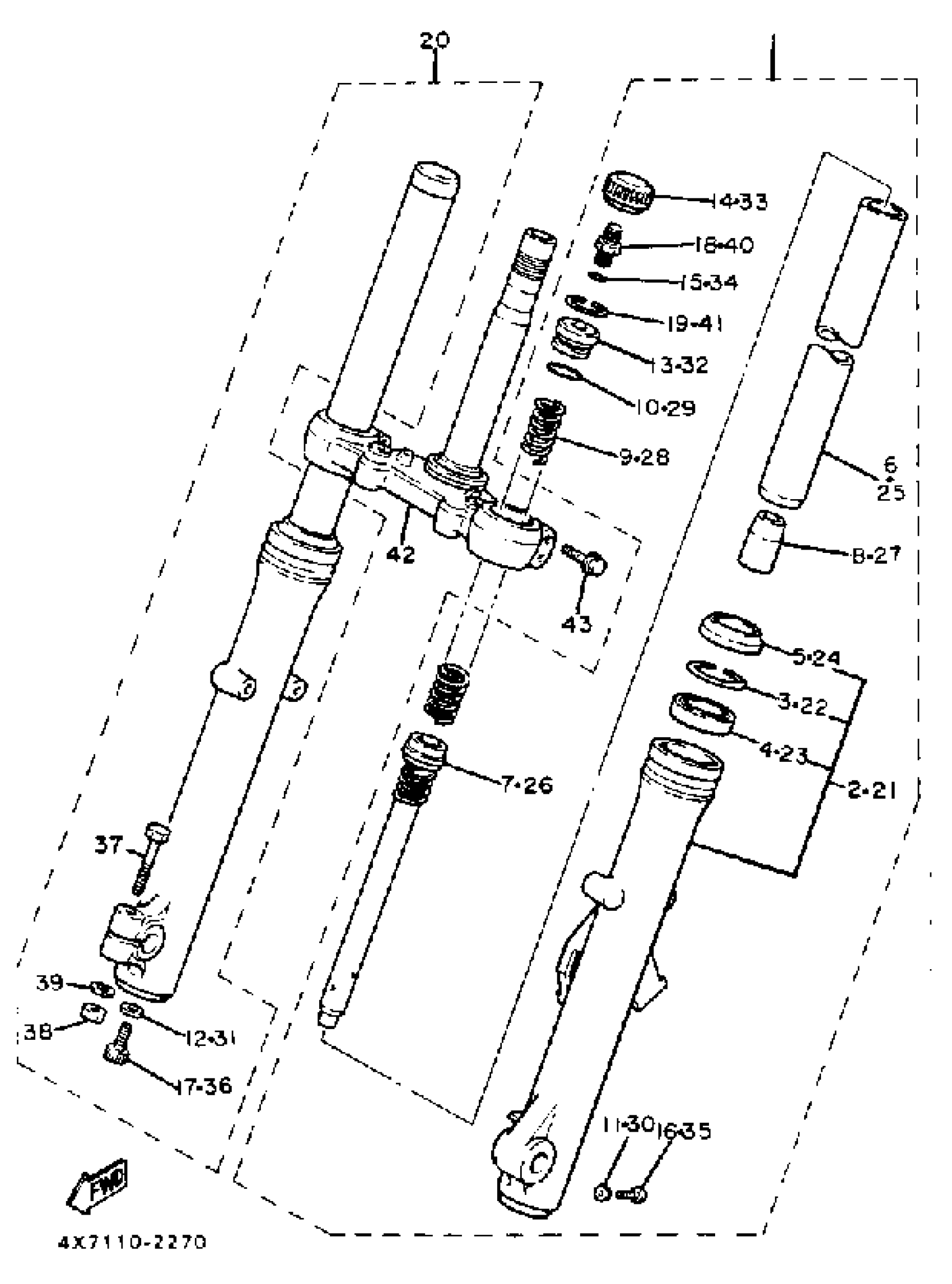

Yamaha XV750J (VIRAGO 750) 1982 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

(4X7-23102-00-00)

Unavailable

2

. TUBE, OUTER 1

4H7-23126-00-00

Unavailable

3

RING, SNAP

4A1-23156-00-00

$4.44

4

OIL SEAL

4ES-23145-00-00

$17.34

5

SEAL, DUST

33M-23144-00-00

$22.50

6

. INNER TUBE 1

4X7-23110-00-00

Unavailable

7

. CYLINDER, FRTFRK

4K0-23170-00-00

Unavailable

8

TAPER SPINDLE

1W1-23173-L0-00

$15.74

9

SPRING, FRONT FORK

(4X7-23141-00-00)

Unavailable

10

O-RING

3J2-23114-00-00

$7.03

11

GASKET, DRAIN PLUG

122-23129-00-00

$5.20

12

GASKET

509-23158-L0-00

$13.39

13

. BOLT, CAP

3J2-23111-00-00

Unavailable

14

. CAP, FRONT FORK

4X7-23168-00-00

Unavailable

15

O-RING

3J2-23147-00-00

$8.11

16

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

17

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

18

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

19

RING, SNAP

3J2-23183-00-00

Unavailable

20

FRONT FORK ASSEMBLY R

4X7-23103-00-00

Unavailable

21

. TUBE, OUTER 2

22U-23136-01-38

Unavailable

22

RING, SNAP

4A1-23156-00-00

$4.44

23

OIL SEAL

4ES-23145-00-00

$17.34

24

SEAL, DUST

33M-23144-00-00

$22.50

25

. INNER TUBE 1

4X7-23110-00-00

Unavailable

26

. CYLINDER, FRTFRK

4K0-23170-00-00

Unavailable

27

TAPER SPINDLE

1W1-23173-L0-00

$15.74

28

SPRING, FRONT FORK

(4X7-23141-00-00)

Unavailable

29

O-RING

3J2-23114-00-00

$7.03

30

GASKET, DRAIN PLUG

122-23129-00-00

$5.20

31

GASKET

509-23158-L0-00

$13.39

32

. BOLT, CAP

3J2-23111-00-00

Unavailable

33

. CAP, FRONT FORK

4X7-23168-00-00

Unavailable

34

O-RING

3J2-23147-00-00

$8.11

35

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

36

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

37

BOLT

97013-08045-00

Unavailable

38

NUT(6L2)

95333-08600-00

Unavailable

39

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

40

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

41

RING, SNAP

3J2-23183-00-00

Unavailable

42

UNDER BRACKET (4X7-23340-00-33)

5G5-23340-00-33

Unavailable

43

BOLT, AXLE HOLDER

18G-23128-00-00

Unavailable
