1981 Yamaha Virago 750 (XV750H) Meter Diagram

← All diagrams

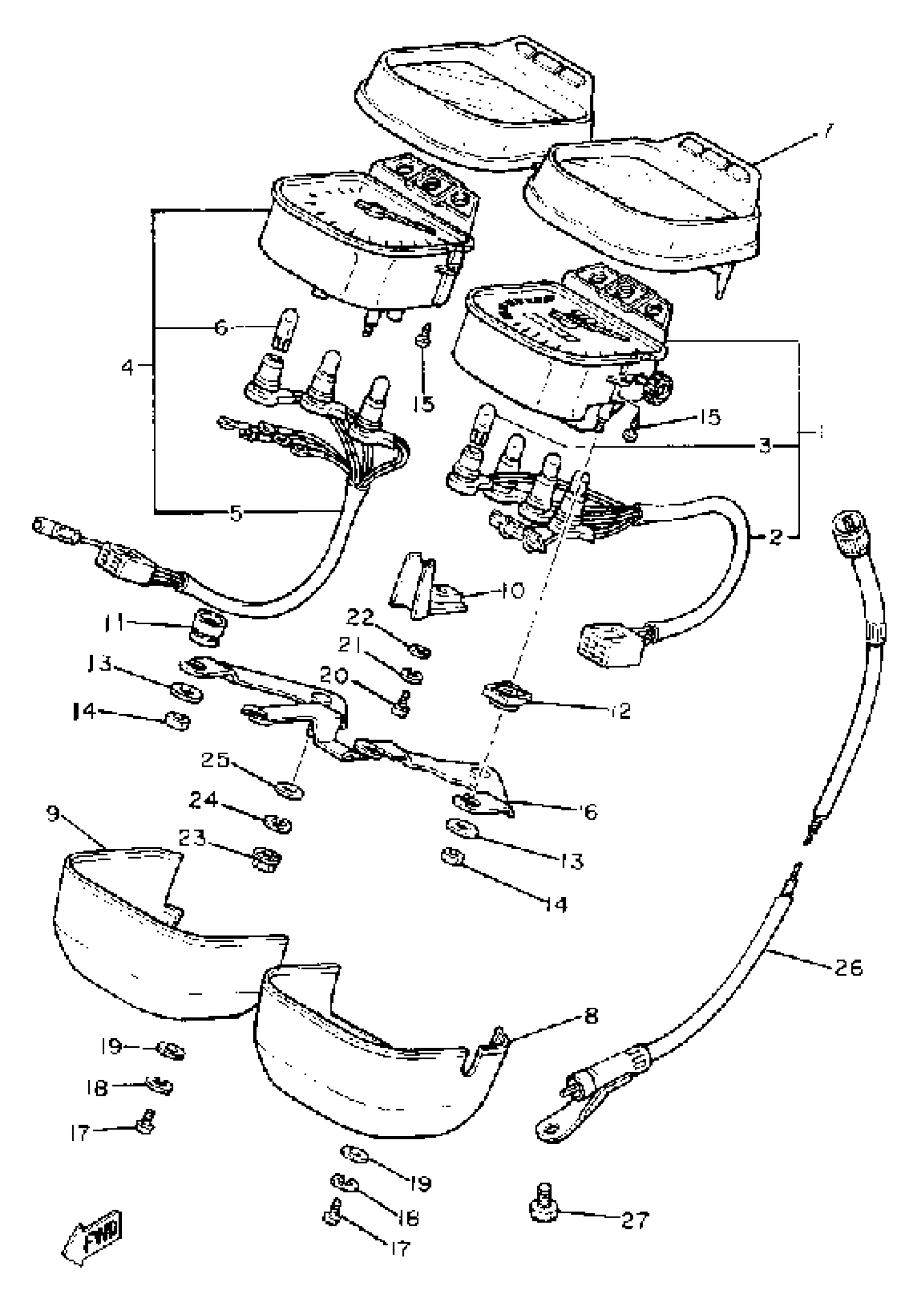

Find the part on the Meter diagram for your 1981 Yamaha Virago 750 (XV750H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha Virago 750 (XV750H) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

4X7-83570-A0-00

1
Out of stock

2

. SOCKET, METER

4X7-83536-00-00

1
Out of stock

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

4

TACHOMETER ASSEMBLY (4X7-83540-00)

5E5-83540-00-00

1
Out of stock

5

. SOCKET CORD ASSEMBLY

4X7-83520-00-00

1
Out of stock

6

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

7

COVER, METER

4X7-83559-A0-00

1
Out of stock

8

COVER, SPEEDOMETER

4X7-83507-00-00

1
Out of stock

9

COVER, TACHOMETER

4X7-83508-00-00

1
Out of stock

10

COVER, METER 2

4X7-83579-00-00

1
Out of stock

11

DAMPER

4X7-83523-00-00

1
Out of stock

12

DAMPER

4H7-83523-00-00

1
Out of stock

13

WASHER PLATE 803835240000

90201-05032-00

—
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

1
Out of stock

15

SCREW, TAPPING

4H7-83616-00-00

—
Out of stock

16

BRACKET, METER

4X7-83519-00-00

1
Out of stock

17

SCREW, PAN HEAD (E56)

98580-04010-00

—
Out of stock

18

YBS67-4 WASHER, SPRING

92990-04100-00

—
Out of stock

19

WASHER, PLAIN (646)

92990-04600-00

—
Out of stock

20

SCREW, PAN HEAD(JG1)

98507-04008-00

—
Out of stock

21

WASHER(6TA)

92907-04100-00

—
Out of stock

22

WASHER(JF2)

92907-04600-00

—
Out of stock

23

NUT(6TA)

95317-06600-00

—
Out of stock

24

WASHER, SPRING

92907-06100-00

—
Out of stock

25

WASHER(6TA)

92907-06200-00

—
Out of stock

26

SPEEDOMETER CABLE

20X-83550-00-00

1
Out of stock

27

SCREW, HEXAGON

90153-06004-00

1
Out of stock
