1981 Yamaha Virago 750 (XV750H) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1981 Yamaha Virago 750 (XV750H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

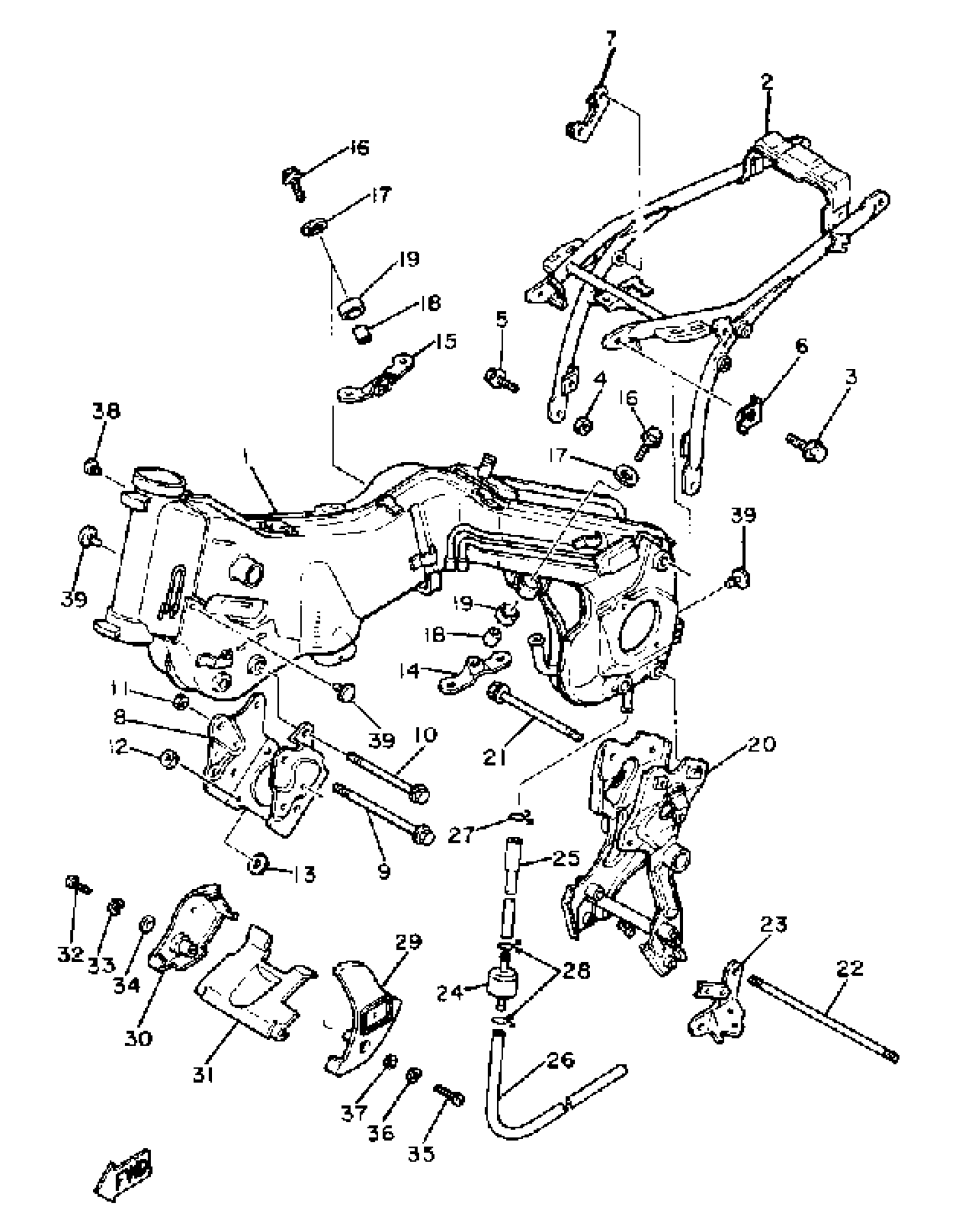

1981 Yamaha Virago 750 (XV750H) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(4X7-21110-00-33)

1
Out of stock

2

FRAME, REAR

4X7-21190-00-33

1
Out of stock

3

BOLT, FLANGE

95817-10035-00

1

$6.85

In stock

4

1

$6.02

In stock

5

BOLT (583)

90101-10303-00

1

$6.25

In stock

6

WASHER, LOCK

90215-10192-00

1
Out of stock

7

BRACKET 2

4X7-2138L-00-00

1
Out of stock

8

STAY, ENGINE 4

4X7-21317-00-00

1
Out of stock

9

BOLT, WASHER BASED (5E3)

90105-10183-00

1

$10.25

In stock

10

BOLT, WASHER BASED (2H7)

90105-10105-00

1
Out of stock

11

NUT(4KG)

90179-10658-00

1

$7.49

In stock

12

NUT(3EF)

90179-12657-00

1

$5.32

In stock

13

WASHER, PLATE (5E3)

90201-125A3-00

1
Out of stock

14

STAY, ENGINE 2

(4X7-21315-00-00)

1
Out of stock

15

STAY, ENGINE 3

(4X7-21316-00-00)

1
Out of stock

16

BOLT (4W3)

90105-10186-00

1
Out of stock

17

WASHER, PLATE(42X)

90201-105H3-00

—

$5.68

In stock

18

COLLAR (5E3)

90387-100E2-00

—
Out of stock

19

DAMPER, RUBBER 1

4X7-21485-00-00

1
Out of stock

20

BRACKET, REAR ARM

4X7-21430-00-00

1
Out of stock

21

BOLT

90101-10074-00

1
Out of stock

22

BOLT, STUD

90116-10343-00

1
Out of stock

23

BRACKET, SIDE STAND

(4X7-21458-01-00)

1
Out of stock

24

FILTER ASSY

4X7-2149Y-00-00

—

$17.23

In stock

25

HOSE

(90445-11545-00)

1
Out of stock

26

HOSE (L198)

90445-11293-00

—

$6.97

In stock

27

CLIP(6M6)

90467-13M13-00

1

$6.92

In stock

28

CLIP(1JH)

90467-11106-00

—
Out of stock

29

SCOOP, AIR 1

4X7-2137W-00-98

1
Out of stock

30

SCOOP, AIR 2

4X7-2137X-00-98

1
Out of stock

31

GUIDE, AIR

4X7-2137Y-00-98

1
Out of stock

32

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

33

WASHER, SPRING

92907-06100-00

—
Out of stock

34

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

35

SCREW, PAN

98507-06040-00

—

$2.25

In stock

36

WASHER, SPRING

92907-06100-00

—
Out of stock

37

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

38

PLUG, SPEC''L SHAPE

(90338-03116-00)

1
Out of stock

39

PLUG 288833190000

90338-07043-00

—

$5.35

In stock
