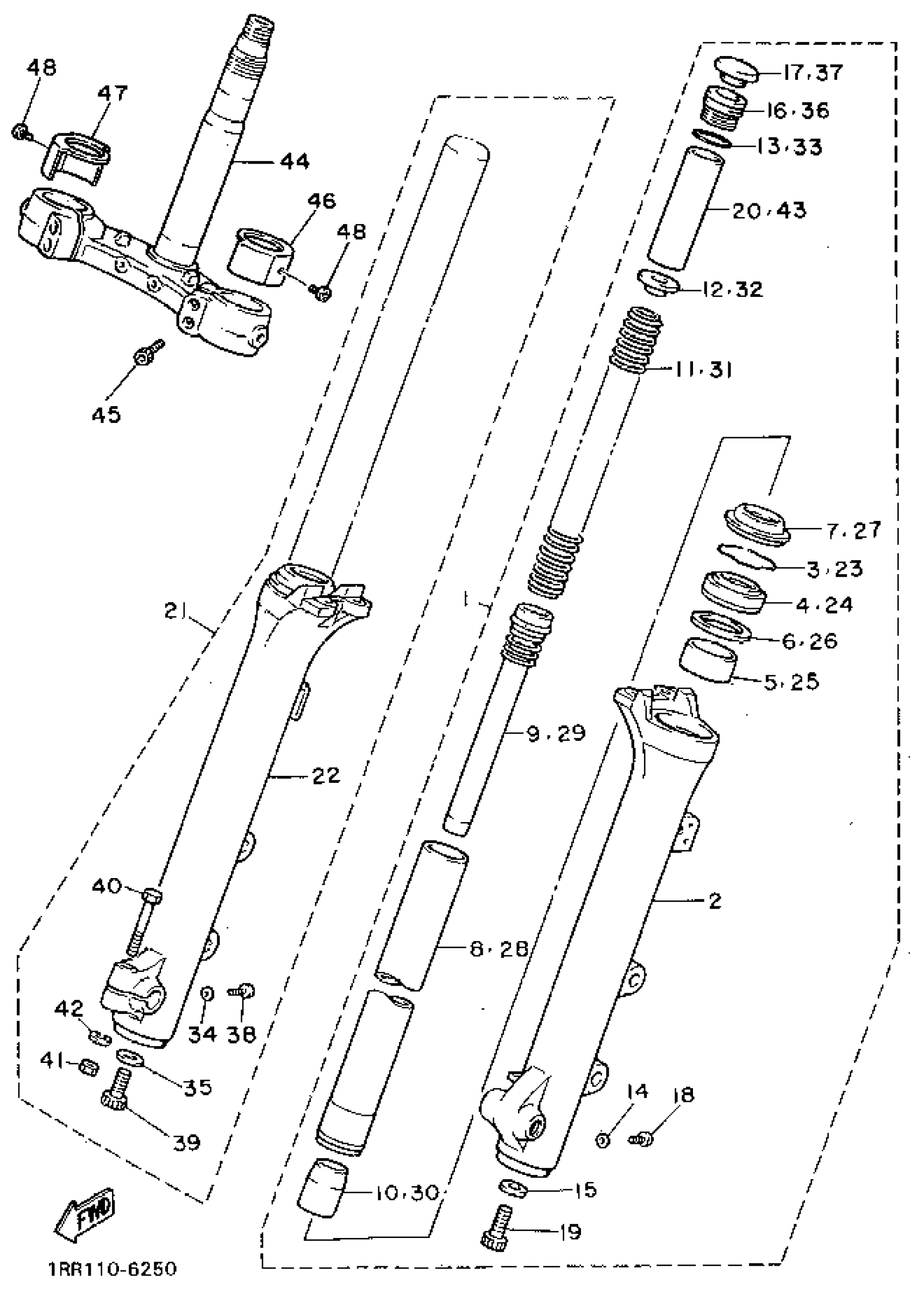

Yamaha XV750DC (VIRAGO 750 CA) 1992 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASS''Y (L.H)

3JL-23102-00-00

Unavailable

2

TUBE,OUTER 1

3JL-23126-10-00

Unavailable

3

RING, SNAP

3R4-23153-00-00

$7.18

4

OIL SEAL

3EN-23145-00-00

$21.93

5

METAL, SLIDE 1

2YK-23125-00-00

$37.47

6

WASHER

4V2-23146-L0-00

$23.98

7

SEAL, DUST

42X-23144-01-00

Unavailable

8

INNER TUBE 1

99999-02981-00

Unavailable

9

. CYLINDER COMP, FRONT FORK

33M-23170-00-00

Unavailable

10

TAPER SPINDLE

1W1-23173-L0-00

$15.74

11

. SPRING, FRONT FORK

42H-23141-00-00

Unavailable

12

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

13

O-RING

1W1-23114-L0-00

$8.31

14

GASKET, DRAIN PLUG

122-23129-00-00

$5.60

15

GASKET

509-23158-L0-00

$13.67

16

. BOLT, CAP

31A-23111-31-00

Unavailable

17

CAP, FRONT FORK

42H-23168-00-00

Unavailable

18

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.88

19

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

20

. SPACER

42-X2311-80-00

Unavailable

21

FRONT FORK ASS''Y (R.H)

3JL-23103-00-00

Unavailable

22

TUBE,OUTER 2

3JL-23136-10-00

Unavailable

23

RING, SNAP

3R4-23153-00-00

$7.18

24

OIL SEAL

3EN-23145-00-00

$21.93

25

METAL, SLIDE 1

2YK-23125-00-00

$37.47

26

WASHER

4V2-23146-L0-00

$23.98

27

SEAL, DUST

42X-23144-01-00

Unavailable

28

INNER TUBE 1

99999-02981-00

Unavailable

29

. CYLINDER COMP, FRONT FORK

33M-23170-00-00

Unavailable

30

TAPER SPINDLE

1W1-23173-L0-00

$15.74

31

. SPRING, FRONT FORK

42H-23141-00-00

Unavailable

32

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

33

O-RING

1W1-23114-L0-00

$8.31

34

GASKET, DRAIN PLUG

122-23129-00-00

$5.60

35

GASKET

509-23158-L0-00

$13.67

36

. BOLT, CAP

31A-23111-31-00

Unavailable

37

CAP, FRONT FORK

42H-23168-00-00

Unavailable

38

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.88

39

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

40

BOLT (1E6)

90101-08340-00

Unavailable

41

NUT(6L2)

95333-08600-00

Unavailable

42

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

43

. SPACER

42-X2311-80-00

Unavailable

44

UNDER BRACKET COMP.

2AE-23340-30-00

Unavailable

45

BOLT,SOCKET

91314-08030-00

Unavailable

46

COVER (L.H)

1RM-23132-00-00

Unavailable

47

COVER (R.H)

1RM-23132-10-00

Unavailable

48

SCREW,PANHEAD (EG9)

98580-05006-00

Unavailable
