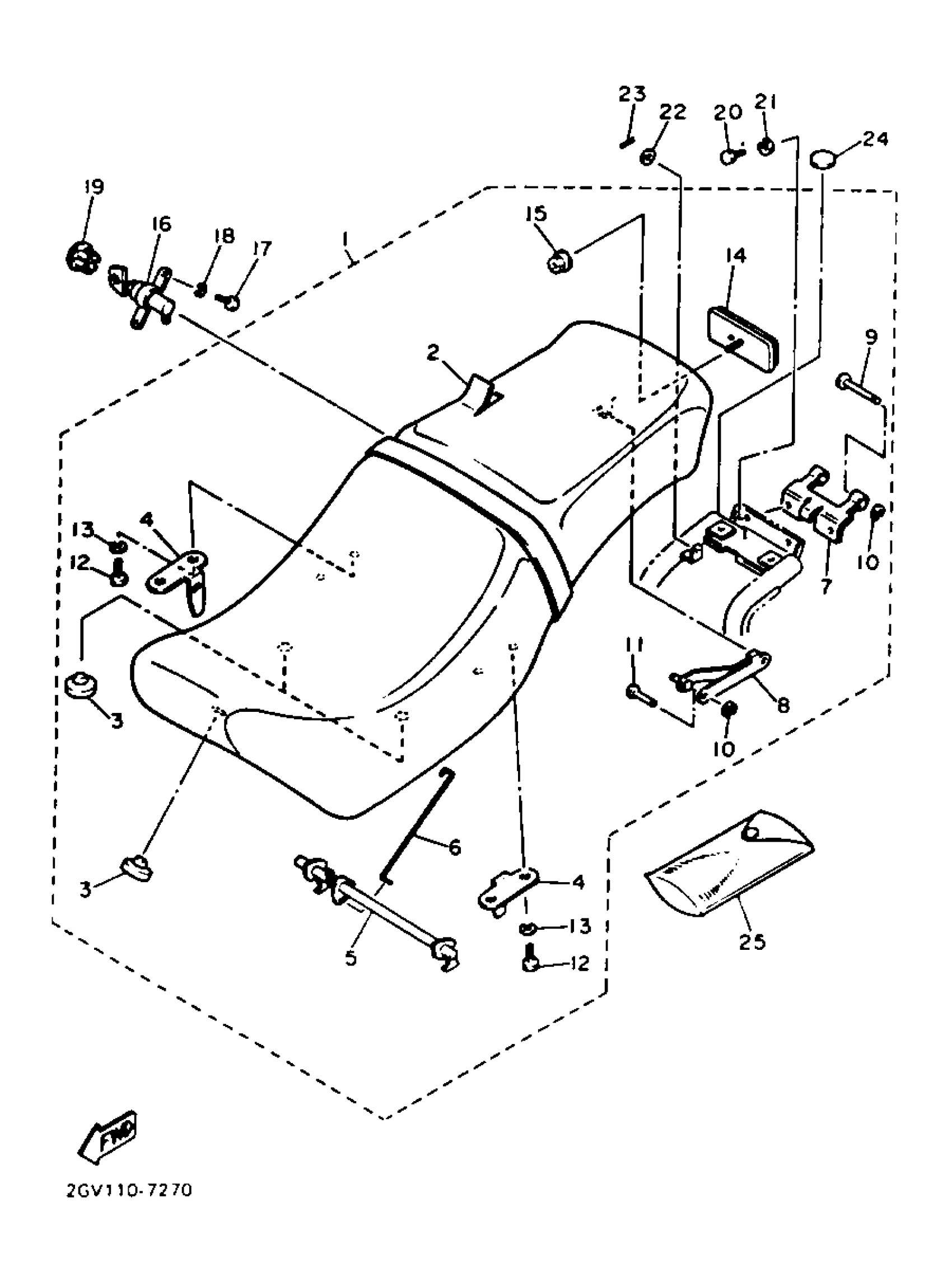

Yamaha XV535TC (VIRAGO 535 CA) 1987 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASSEMBLY

2GV-24730-00-00

Unavailable

2

. COVER, DOUBLE SEAT

2GV-24731-00-00

Unavailable

3

STOPPER, MAIN STAND

102-27114-A0-00

Unavailable

4

. BRACKET, SEAT

2GV-24718-00-00

Unavailable

5

. LEVER, SEAT

2GV-24776-00-00

Unavailable

6

. ROD, CONNECTING

2GV-2478F-00-00

Unavailable

7

. HINGE ASSEMBLY

[2G-V2477-20-00

Unavailable

8

. STOPPER

2GV-24768-00-00

Unavailable

9

. PIN, CLEVIS (2GV)

90249-05198-00

Unavailable

10

CIRCLIP (EU0)

99080-04600-00

Unavailable

11

. PIN, CLEVIS (2GV)

90249-05197-00

Unavailable

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

WASHER, SPRING

92995-06100-00

Unavailable

14

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

15

NUT, FLANGE(3GM)

95707-05500-00

$8.49

16

SEAT LOCK ASSY

47X-24705-00-00

Unavailable

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

18

WASHER, SPRING

92995-06100-00

Unavailable

19

COVER

51Y-24796-00-00

Unavailable

20

BOLT(8CP)

97017-06014-00

Unavailable

21

WASHER, SPRING

92907-06100-00

Unavailable

22

WASHER, PLAIN (646)

92990-05600-00

Unavailable

23

CLIP (156-83525-00)

90468-10050-00

Unavailable

24

DAMPER

4A0-85547-00-00

Unavailable

25

TOOL KIT

2GV-28100-00-00

Unavailable
