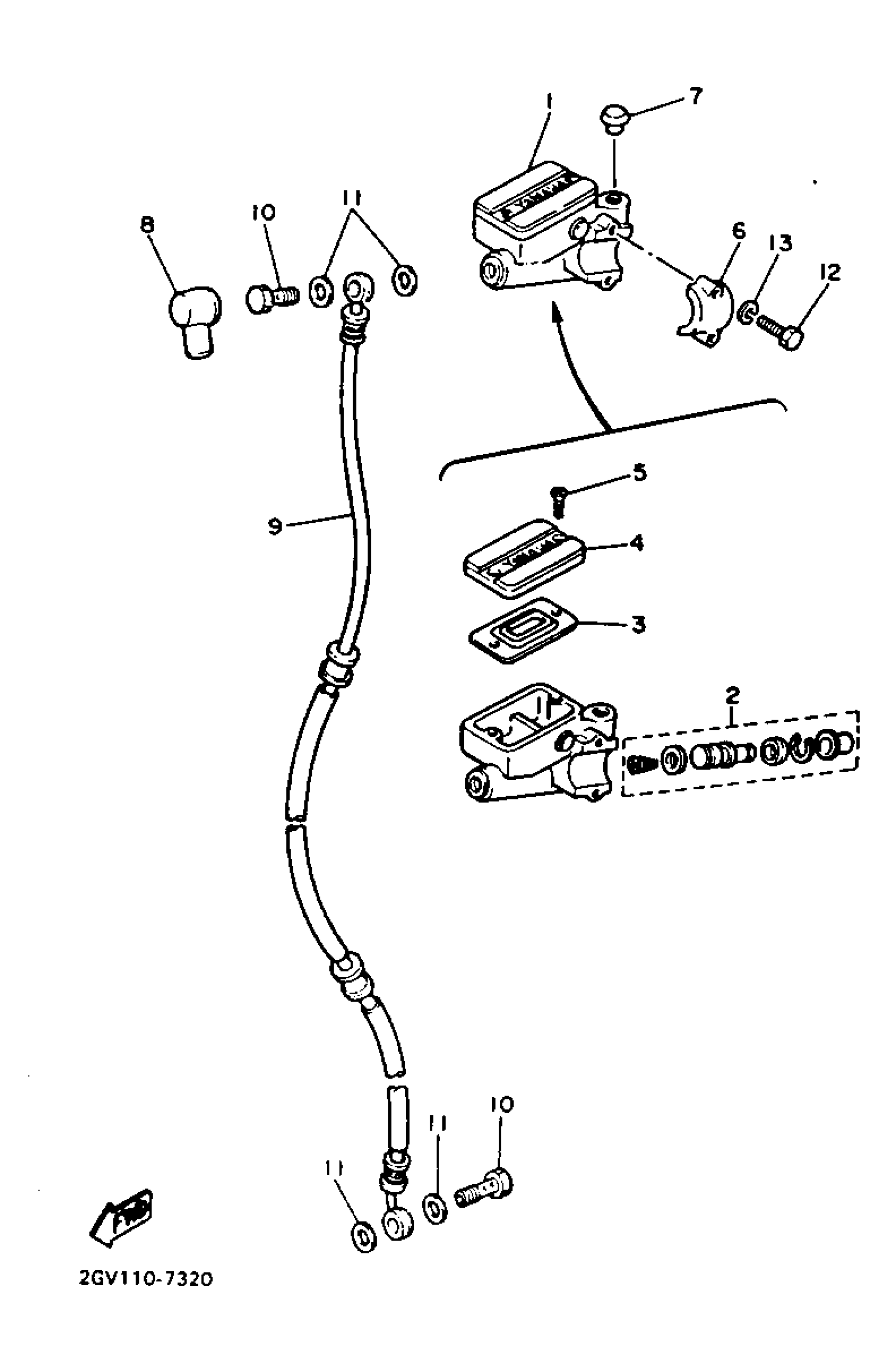

Yamaha XV535TC (VIRAGO 535 CA) 1987 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER ASSEMBLY

4H7-25850-02-00

Unavailable

CYLINDER KIT, MASTER

4H7-W0041-00-00

$88.99

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

CAP, RESERVOIR

4H7-25852-00-00

$39.99

SCREW, FLAT

98707-04010-00

$8.49

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

PLUG (341-26329-00)

90338-09012-00

$9.49

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

BRAKE HOSE SET(4FT)

99999-02512-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

$11.49

WASHER, PLATE(481)

90201-10118-00

Unavailable

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER, SPRING

92907-06100-00

$4.25
