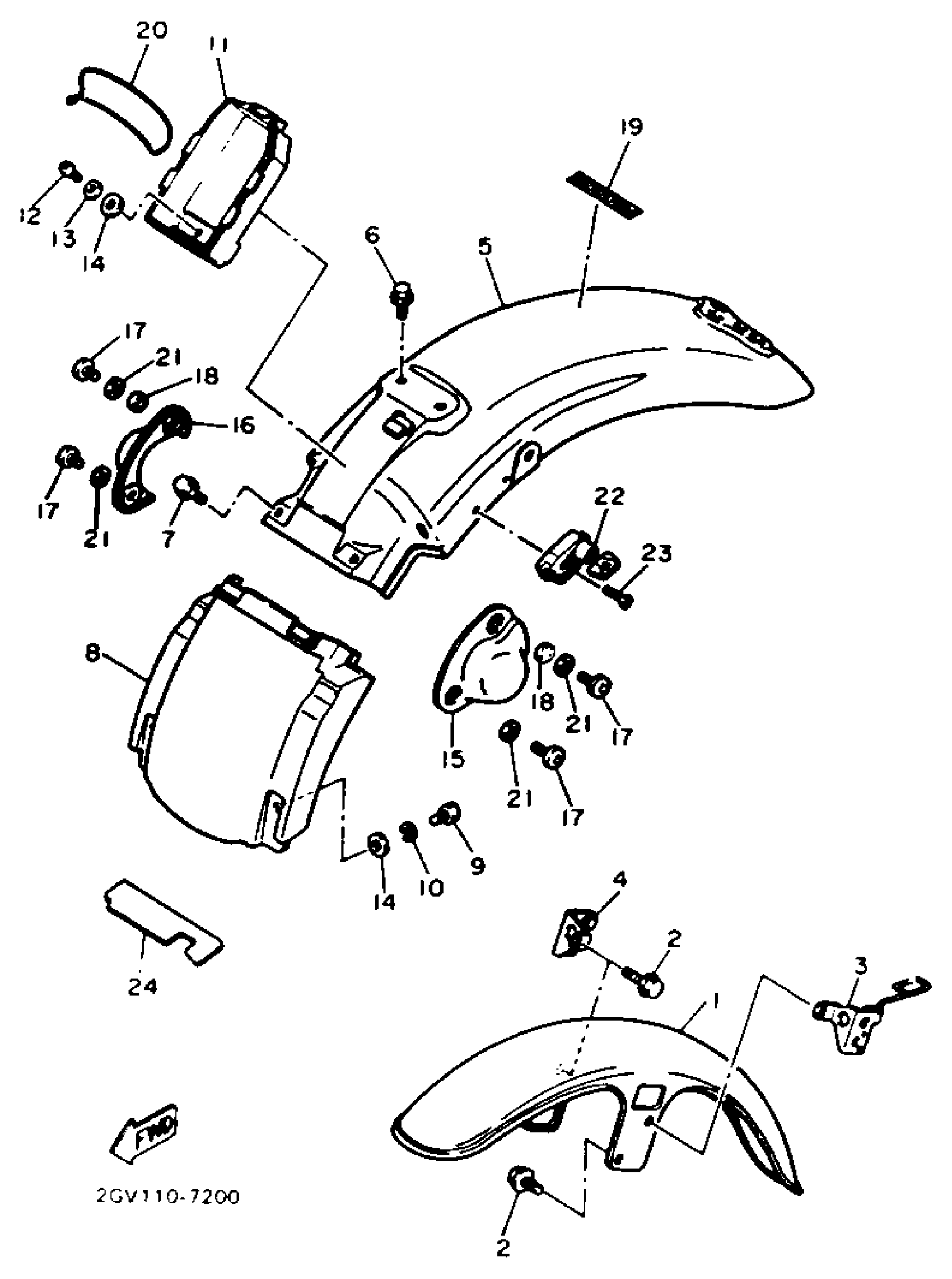

Yamaha XV535TC (VIRAGO 535 CA) 1987 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

2GV-21510-00-KU

Unavailable

1

FENDER, FRONTCOMP

2GV-21510-00-RL

Unavailable

2

BOLT, FLANGE(2UJ)

95024-08012-00

$8.49

3

HOLDER, WIRE 1

2GV-21597-00-00

Unavailable

4

HOLDER, WIRE 2

2GV-21598-00-00

Unavailable

5

REAR FENDER COMP.

2GV-21610-00-KU

Unavailable

5

REAR FENDER COMP.

2GV-21610-00-RL

Unavailable

6

BOLT, FLANGE

95817-08012-00

$5.49

7

BOLT, FLANGE

95817-06010-00

$4.73

8

GUARD, MUD

(2GV-21629-00-KU)

Unavailable

8

GUARD, MUD

2GV-21629-00-RL

Unavailable

9

BOLT(8CP)

97017-06014-00

$8.49

10

WASHER, SPRING

92907-06100-00

$4.25

11

BOX

2GV-2160E-00-00

Unavailable

12

SCREW, PAN

98507-06014-00

$8.49

13

WASHER(6TA)

92907-06600-00

Unavailable

14

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

15

COVER, REAR FENDER 1

2GV-2163A-00-00

Unavailable

16

COVER, REAR FENDER 2

2GV-2163E-00-00

Unavailable

17

SCREW, BINDING HEAD (3XW7)

98904-08014-00

Unavailable

18

SPACER(2GV)

90560-08326-00

Unavailable

19

EMBLEM, YAMAHA

99245-00080-00

Unavailable

20

O-RING (2H7)

93210-71360-00

Unavailable

21

WASHER, PLAIN

92990-08200-00

Unavailable

22

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

23

SCREW, FLAT

98707-06030-00

Unavailable

24

CVR, RR FENDER 3

2GV-2163F-00-00

Unavailable
