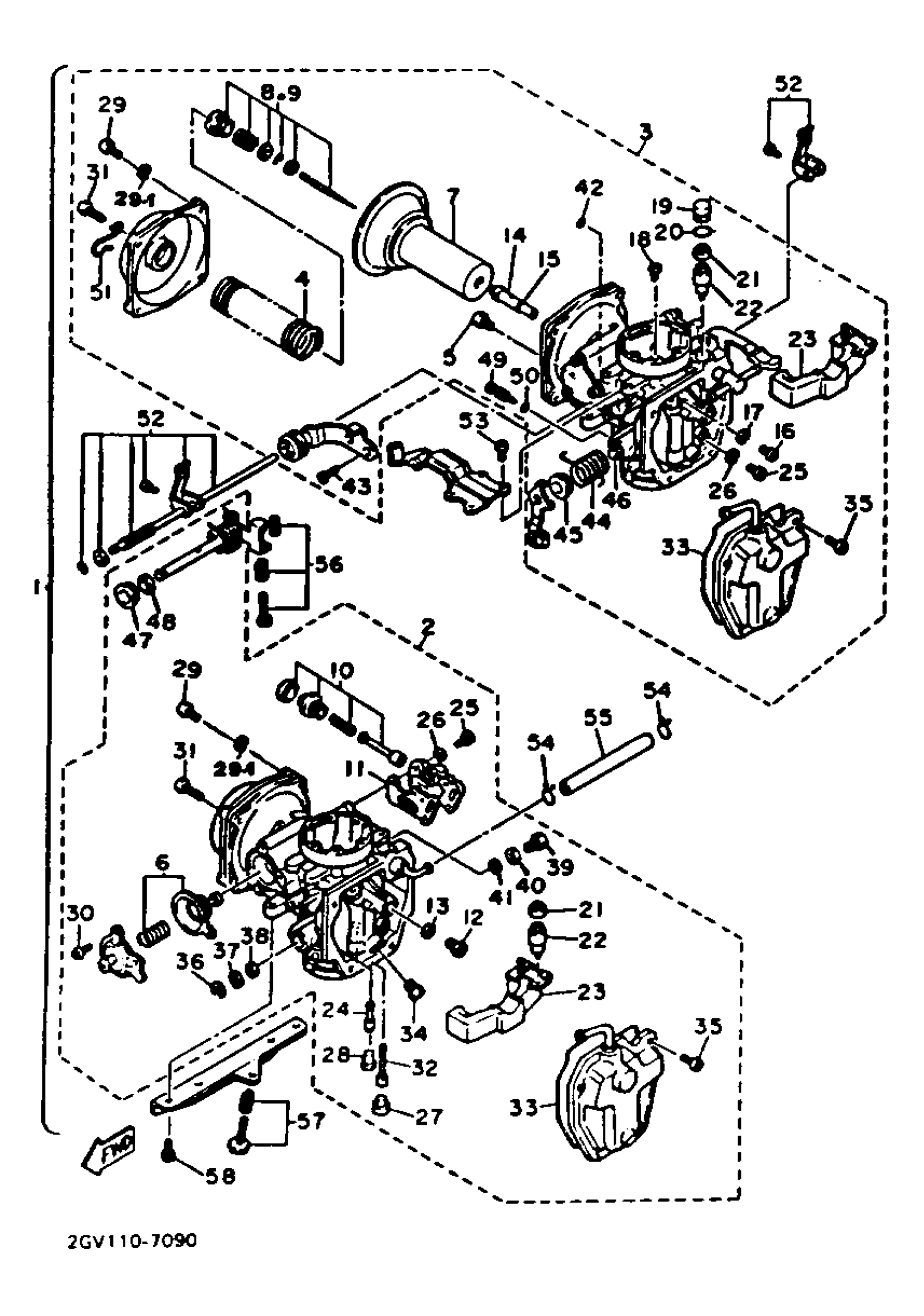

Yamaha XV535TC (VIRAGO 535 CA) 1987 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY
2GV-14900-00-00
Unavailable
1
CARBURETOR ASSEMBLY
[2J-V1490-00-00
Unavailable
2
CARBURETOR ASY 1
2JU-14901-02-00
Unavailable
3
CARBURETOR ASY 2
2JU-14902-02-00
Unavailable
5
JET, MAIN (#160)
3G2-14231-32-00
Unavailable
6
DIAPHRAGM SET 5
22U-1490H-00-00
Unavailable
7
DIAPHRAGM ASSY
2GV-14940-00-00
Unavailable
11
GASKET
3JB-14536-00-00
Unavailable
12
SCREW
22U-14565-00-00
Unavailable
14
NOZZLE, MAIN
2JU-14141-90-00
Unavailable
15
O-RING
22U-14147-00-00
Unavailable
16
SCREW, PAN HEAD
98507-04018-00
Unavailable
18
JET, MAIN (# 60)
3G2-14231-12-00
Unavailable
19
.. CAP
[41-R1411-80-10
Unavailable
20
O-RING
1FK-14147-00-00
Unavailable
21
NET, FILTER
1J7-14994-00-00
Unavailable
22
NEEDLE VALVE ASSY
22U-14190-15-00
Unavailable
23
.. FLOAT
22U-14985-00-00
Unavailable
24
JET, PILOT (#32.5)
4G0-14142-32-A0
Unavailable
25
SCREW, PAN HEAD
98511-04012-00
Unavailable
27
CAP
22U-14968-00-00
Unavailable
28
CAP
22V-14968-00-00
Unavailable
29
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
30
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
31
SCREW, PAN HEAD(1FK)
90157-05050-00
Unavailable
32
.. PIPE, MAIN BLEED
22U-1414G-00-00
Unavailable
33
O-RING
22V-14147-00-00
Unavailable
34
JET,MAIN #137.5
3G2-1423A-78-00
Unavailable
35
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
36
CLIP
812-14137-00-00
Unavailable
37
WASHER (3H1)
1A8-14953-00-00
Unavailable
38
.. SEAL
[22-U1499-70-00
Unavailable
39
.. PLUG, SCREW
341-14991-00-00
Unavailable
40
.. WASHER
26H-14952-00-00
Unavailable
41
.. WASHER
[22-U1495-20-00
Unavailable
42
O-RING (248)
93210-03119-00
Unavailable
43
SCREW,FLAT HEAD
98780-06010-00
Unavailable
44
.. SPRING, THROTTLE 2
[22-U1493-20-00
Unavailable
45
.. BODY, FLOAT CHAMBER
[4U-81491-80-00
Unavailable
46
.. JET, MAIN
[22-U1494-30-00
Unavailable
47
.. WASHER
341-14954-00-00
Unavailable
48
.. RING
4U8-14194-00-00
Unavailable
49
SCREW
2L1-14191-00-00
Unavailable
50
O-RING
214-14147-00-00
Unavailable
51
.. CLIP
[2J-U1493-70-00
Unavailable
52
. STARTER LEVER SET, 1
2JU-1490L-00-00
Unavailable
53
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
54
CLIP
90467-100A1-00
Unavailable
55
HOSE
31H-14987-00-00
Unavailable
56
. UNAVAILABLE IN PRICE BOOK
[22-U1490-K0-00
Unavailable
57
. THROTTLE SCREW SET
[22-U1410-30-00
Unavailable
58
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
