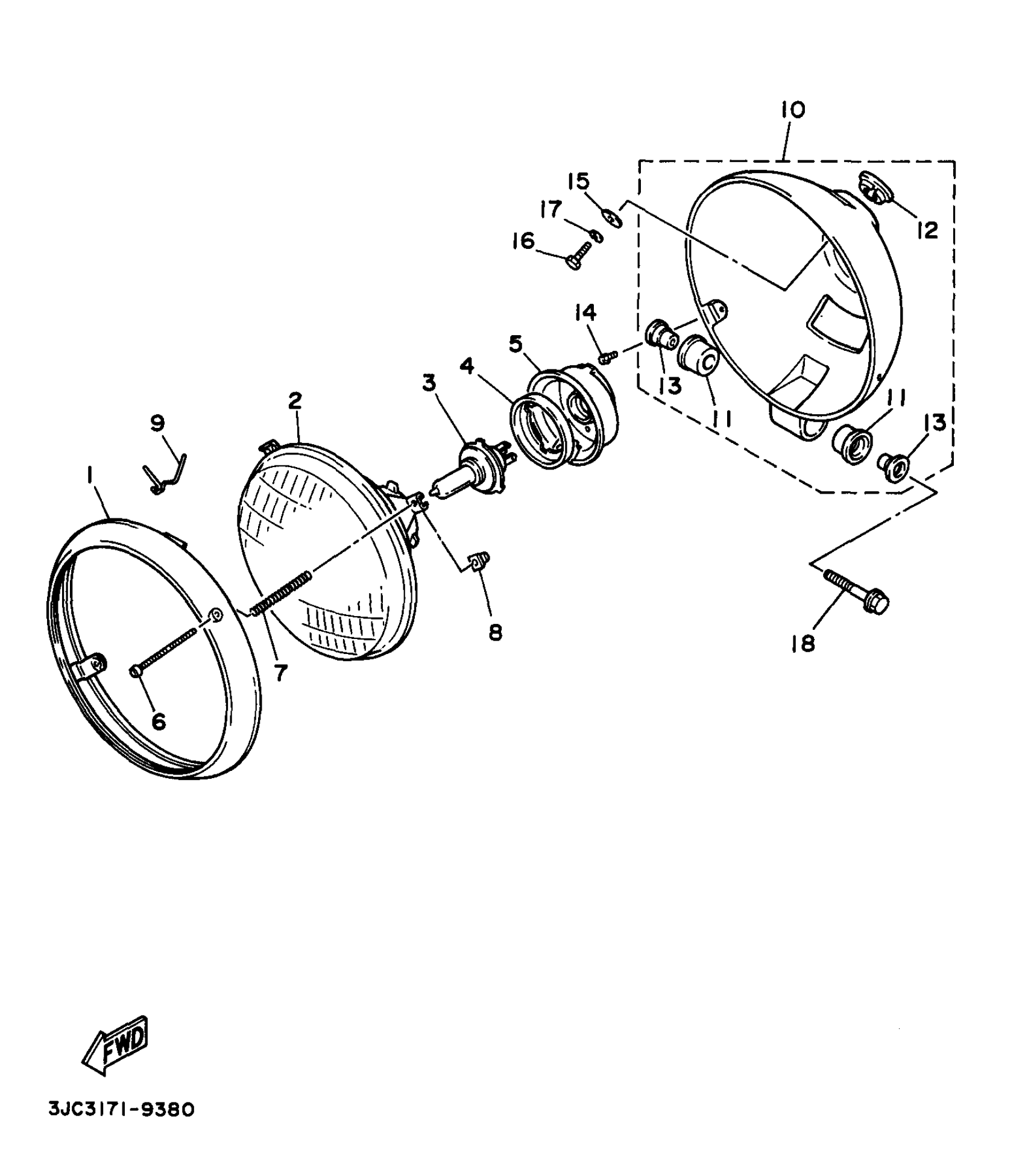

Yamaha XV535SJC (VIRAGO 535 CA) 1997 HEADLIGHT Diagram

#

Description
Price

1

RIM, HEADLIGHT

42X-84315-01-00

$111.64

2

LENS ASSEMBLY

2GV-84321-A0-00

Unavailable

3

BULB, HEADLIGHT

46B-84314-00-00

Unavailable

4

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

5

COVER, SOCKET

2F9-84397-01-00

$27.39

6

SCREW 214841316100

90157-04001-00

$5.00

7

SPRING, COMPRESSION (ITALY)

447-84332-60-00

$8.61

8

NUT, ADJUST

198-84334-60-00

$5.99

9

SPRING, SET

42X-84124-60-00

$6.33

10

BODY ASSY

42X-84330-01-00

$204.26

11

DAMPER, HEADLIGHT

42X-84345-00-00

$4.91

12

DAMPER, HEADLIGHT 1

42X-84366-00-00

$18.38

13

. COLLAR BODY FITTING

42X-84338-00-00

Unavailable

14

SCREW, PAN HEAD(1AA)

90157-05084-00

$3.44

15

WASHER, PLATE

90201-06086-00

$5.47

16

BOLT, HEXAGON

97017-06016-00

Unavailable

17

WASHER, SPRING

92907-06100-00

Unavailable

18

BOLT, FLANGE(4MY)

95027-08040-00

Unavailable
