1998 Yamaha Virago 535 CA (XV535KC) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1998 Yamaha Virago 535 CA (XV535KC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

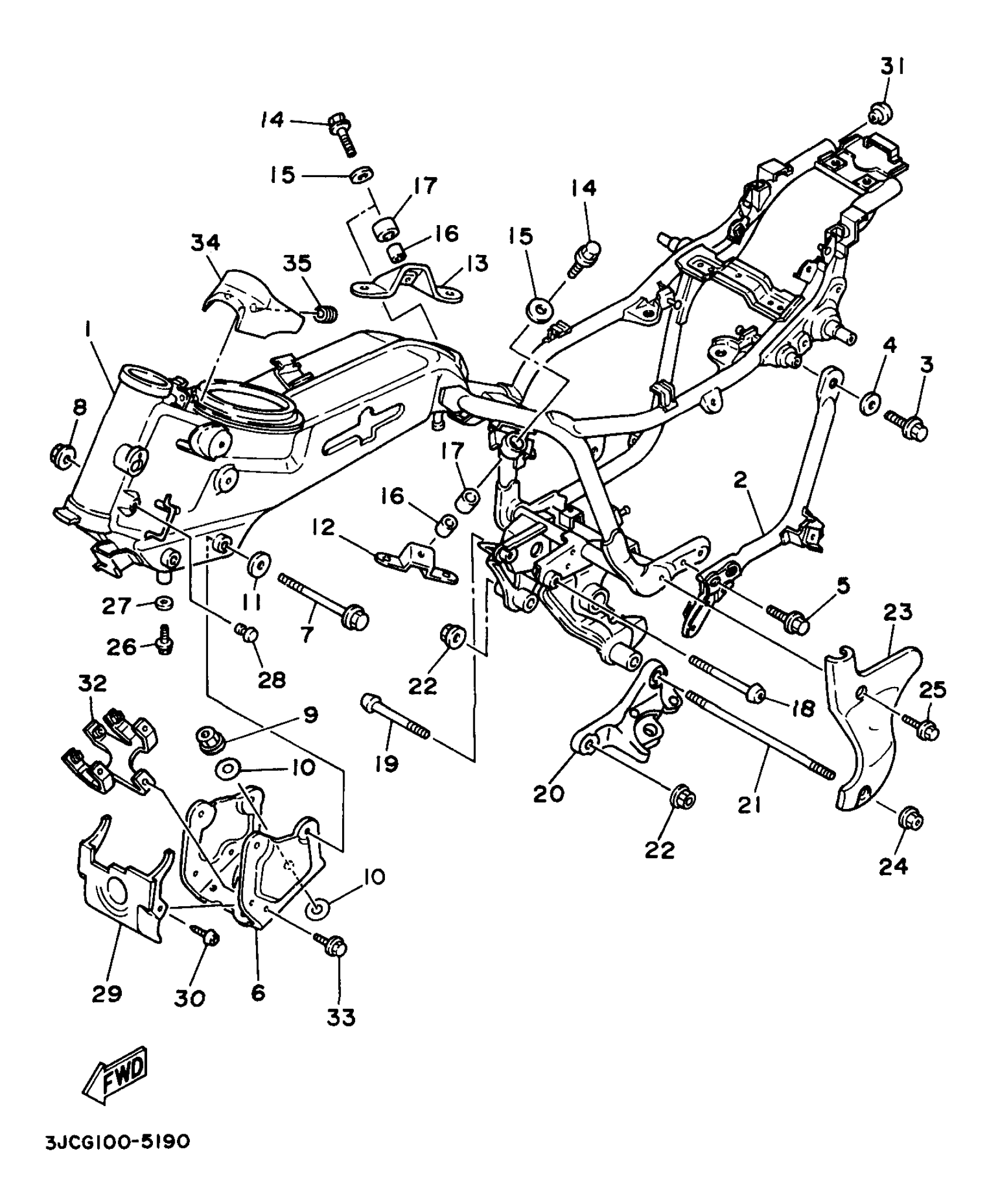

1998 Yamaha Virago 535 CA (XV535KC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

3JC-21110-10-33

1
Out of stock

2

BACK STAY SUB COMP. 1

3JB-21105-00-33

1
Out of stock

3

BOLT WASHER BASED (1J7)

90105-08066-00

—
Out of stock

4

WASHER (853)

90201-08326-00

1
Out of stock

5

BOLT,HEX. SOCKET BUTTON

90111-08084-00

1
Out of stock

6

STAY, ENGINE 3

2GV-21317-00-00

1
Out of stock

7

BOLT, WASHER BASED (5E3)

90105-10183-00

1
Out of stock

8

NUT(4KG)

90179-10658-00

1
Out of stock

9

NUT (2Y5)

90179-10279-00

1
Out of stock

10

WASHER PLATE 256111740000

90201-10131-00

1
Out of stock

11

WASHER, PLATE(3BM)

90201-105R9-00

1
Out of stock

12

STAY, ENGINE 2

22U-21315-00-00

1
Out of stock

13

STAY, ENGINE 3

22U-21316-00-00

1
Out of stock

14

BOLT (4W3)

90105-10186-00

1
Out of stock

15

WASHER, PLATE(42X)

90201-105H3-00

1
Out of stock

16

COLLAR (5E3)

90387-100E2-00

—
Out of stock

17

DAMPER, RUBBER 1

4X7-21485-00-00

1
Out of stock

18

SCREW

90149-10238-00

1
Out of stock

19

SCREW

90149-10239-00

1
Out of stock

20

BRACKET, SIDE STAND

4KU-21458-00-00

1
Out of stock

21

BOLT, STUD

90116-12495-00

1
Out of stock

22

NUT(3EF)

90179-12657-00

—
Out of stock

23

COVER, SIDE 5

2GV-2171E-00-00

1
Out of stock

24

NUT, CAP

95307-12800-00

—
Out of stock

25

BOLT, WASHER BASED(JA9)

90105-06696-00

—
Out of stock

26

BOLT, WASHER BASED HEXAGON 1L9

90105-06069-00

—
Out of stock

27

WASHER, PLATE(3MB)

90202-05187-00

—
Out of stock

28

PLUG 288833190000

90338-07043-00

—
Out of stock

29

COVER 2

2GV-2139R-00-00

1
Out of stock

30

SCREW, PAN TAP.2

97707-60514-00

1
Out of stock

31

PLUG

3YJ-24481-00-00

—
Out of stock

32

BRACKET, COIL

2GV-21359-00-00

1
Out of stock

33

BOLT, FLANGE

95817-06012-00

—
Out of stock

34

COVER 2

3JB-2139R-00-00

1
Out of stock

35

GROMMET (17J)

90480-10334-00

—
Out of stock
