1989 Yamaha Route 66 CA (XV250WC) Frame Diagram

← All diagrams

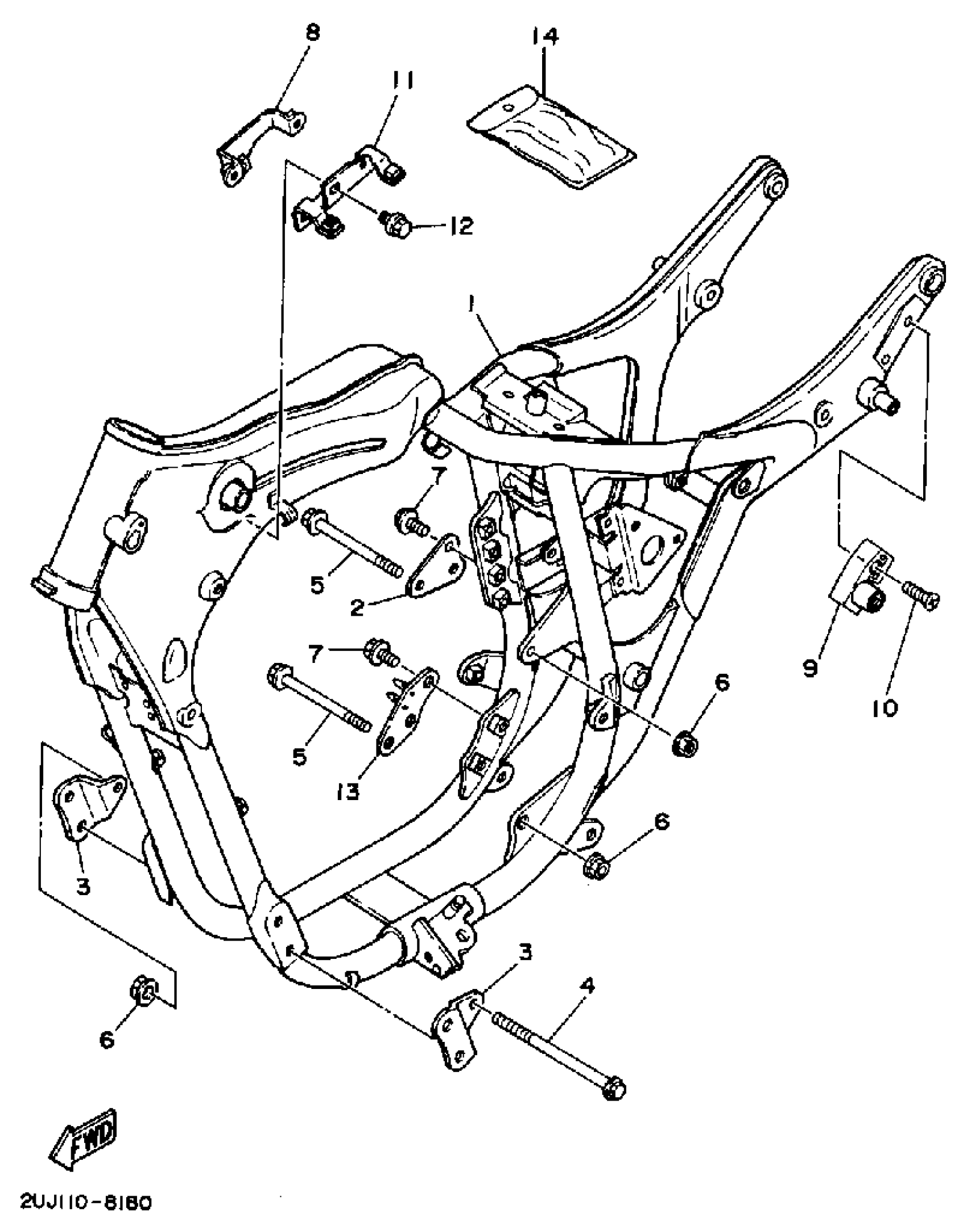

Find the part on the Frame diagram for your 1989 Yamaha Route 66 CA (XV250WC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Yamaha Route 66 CA (XV250WC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

2UJ-21110-03-33

1
Out of stock

2

STAY, ENGINE 5

2UJ-21318-00-33

—
Out of stock

3

STAY, ENGINE 2

2UJ-21315-00-00

1
Out of stock

4

BOLT, FLANGE(2UJ)

95814-08150-00

1
Out of stock

5

BOLT, FLANGE(2UJ)

95814-08110-00

1
Out of stock

6

NUT(55X)

90179-08491-00

1
Out of stock

7

BOLT, FLANGE(JN5)

95817-08016-00

1
Out of stock

8

PLATE, BRIDGE

(2UJ-21243-00-00)

1
Out of stock

9

HELMET HANGER ASSY

26H-21308-01-00

1
Out of stock

10

SCREW (4G1)

90149-06154-00

1
Out of stock

11

BRACKET, IGNITION

(2UJ-2135Y-00-00)

1
Out of stock

12

BOLT, FLANGE

95817-06012-00

1
Out of stock

13

STAY, ENGINE 6

(2UJ-21319-00-00)

1
Out of stock

14

TOOL KIT

2UJ-28100-00-00

—
Out of stock
