2017 Yamaha XV250 (XV250HS) Frame Diagram

← All diagrams

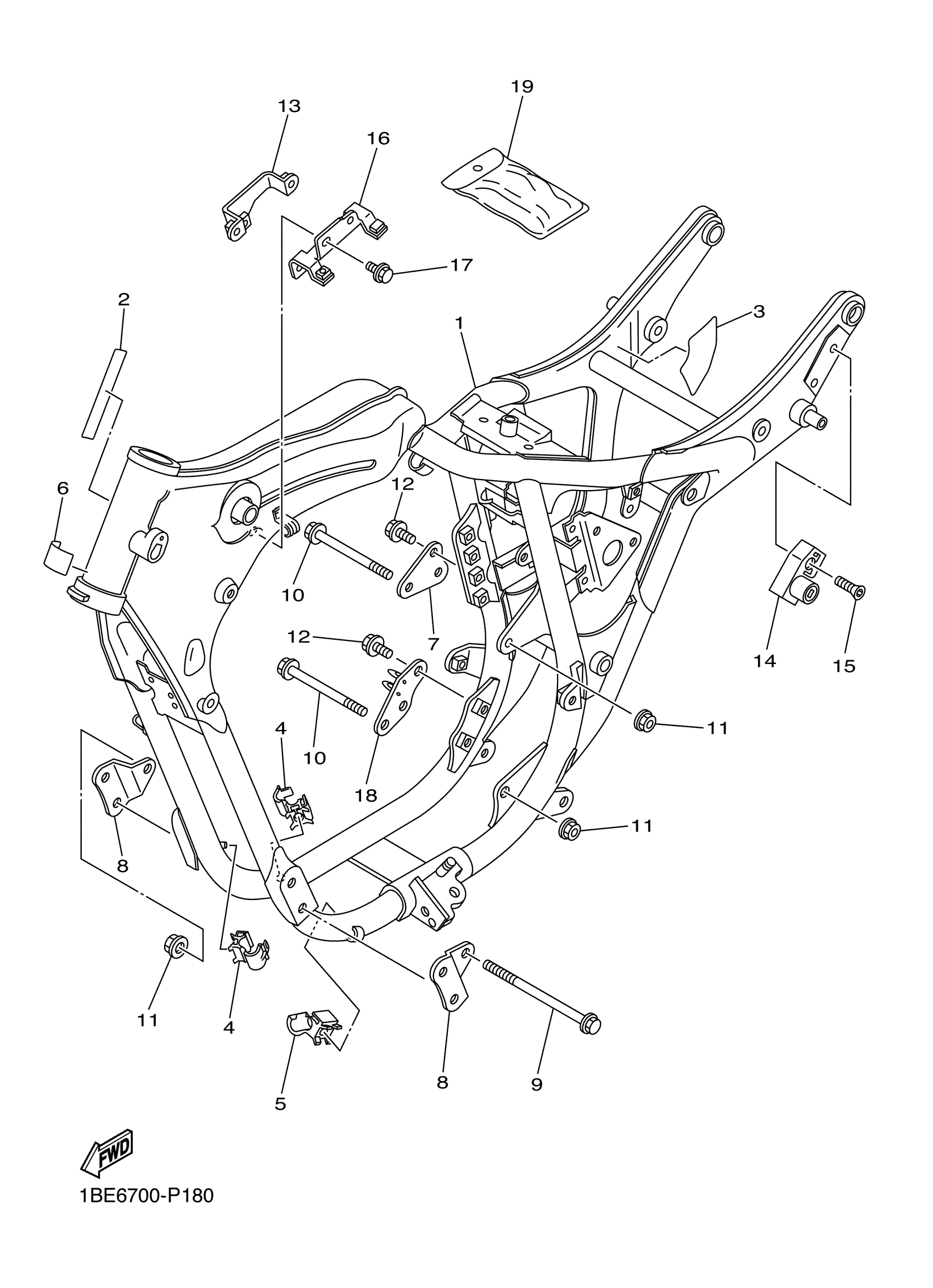

Find the part on the Frame diagram for your 2017 Yamaha XV250 (XV250HS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha XV250 (XV250HS) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

2UJ-21110-50-33

1

$972.99

In stock

2

PROTECTOR, FUEL TANK

3HA-24141-00-00

—

$11.14

In stock

3

DAMPER

46B-2139X-00-00

—

$3.54

In stock

4

CLAMP(4GY)

90464-08189-00

1

$2.20

In stock

5

CLAMP(4GY)

90464-10190-00

1

$7.26

In stock

6

SEAL 1

19D-21732-00-00

—

$3.45

In stock

7

STAY, ENGINE 5

2UJ-21318-01-00

1

$5.32

In stock

8

STAY, ENGINE 2

2UJ-21315-00-00

1

$14.83

In stock

9

BOLT, FLANGE(2UJ)

95814-08150-00

1

$4.51

In stock

10

BOLT, FLANGE(2UJ)

95814-08110-00

1

$5.66

In stock

11

NUT(55X)

90179-08491-00

1
Out of stock

12

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

13

PLATE, BRIDGE

2UJ-21243-00-00

—

$8.31

In stock

14

HELMET HANGER ASSY

26H-21308-01-00

1

$74.80

In stock

15

SCREW (4G1)

90149-06154-00

1

$6.91

In stock

16

BRACKET, IGNITION COIL

2UJ-2135Y-00-00

—

$23.83

In stock

17

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

18

STAY, ENGINE 6

2UJ-21319-00-00

—

$13.32

In stock

19

TOOL KIT

2UJ-28100-00-00

—

$52.09

In stock
