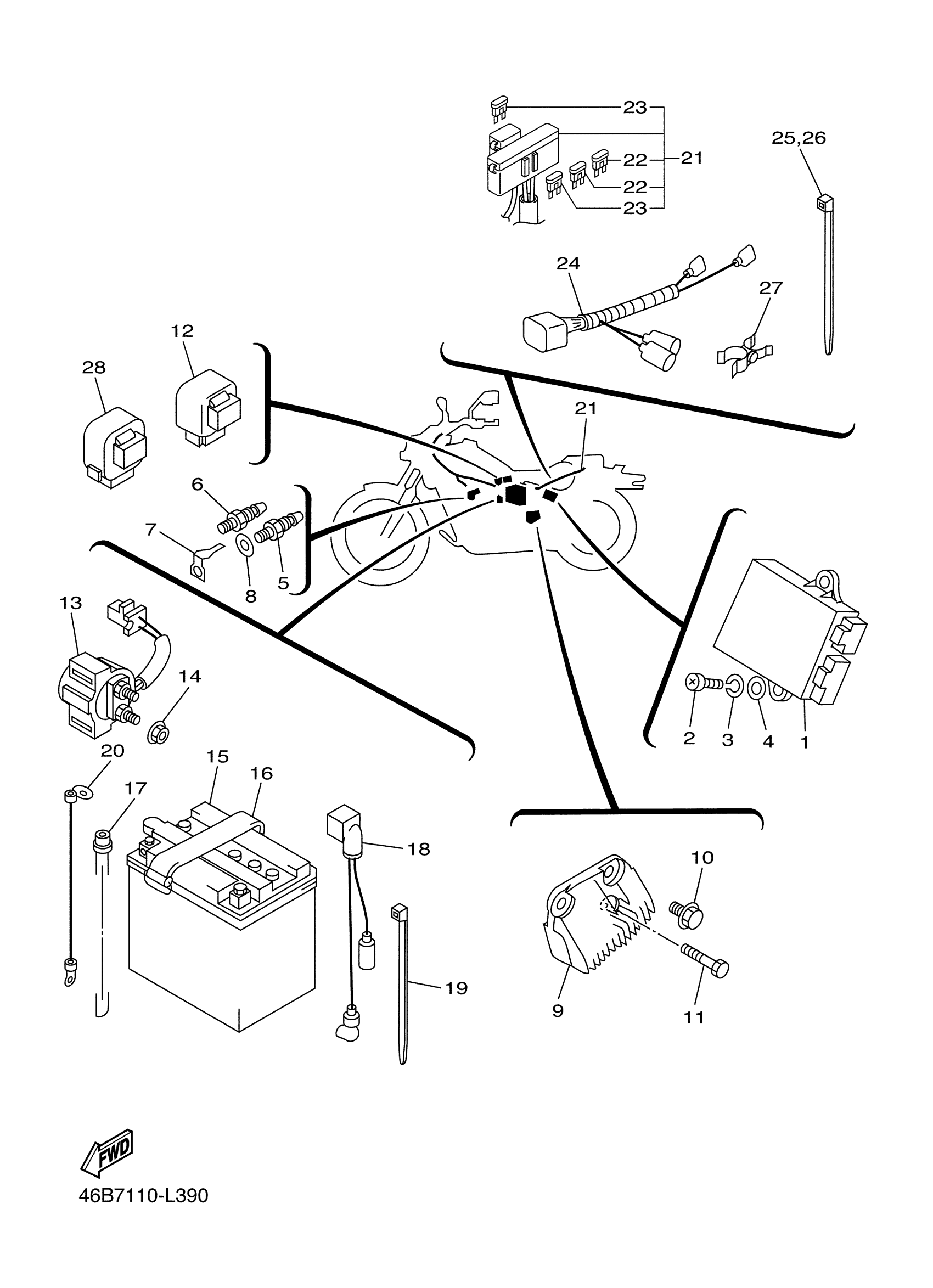

Yamaha XV250HS (XV250) 46BK 2017 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSY

2UJ-82305-00-00

$464.99

2

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.27

3

WASHER, SPRING

92907-06100-00

$0.98

4

WASHER(6TA)

92907-06600-00

$0.73

5

HEATER ASSY

5FU-83790-20-00

$40.91

7

TERMINAL 1

5FU-82103-00-00

$6.29

8

WASHER, PLATE

90201-08016-00

$5.81

9

RECTIFIER & REGULATOR ASSY

3DM-81960-01-00

$242.26

10

BOLT, WITH WASHER

90119-06242-00

$5.47

11

BOLT, HEXAGON

97017-06030-00

$2.80

12

RELAY ASSY

2UJ-81950-02-00

$55.39

13

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

14

NUT, FLANGE(4MV)

95707-06500-00

$0.73

15

YB10LA2 YUASA BATTERY

YB1-0LA20-00-00

$103.15

16

BAND, BATTERY

118-82131-00-00

$19.97

17

HOSE

90445-08719-00

Unavailable

18

WIRE, PLUS LEAD

2UJ-82115-01-00

Unavailable

19

CLAMP

90464-16061-00

Unavailable

20

WIRE, MINUS LEAD

2UJ-82116-00-00

Unavailable

21

WIRE HARNESS ASSY

3BG-82590-30-00

Unavailable

22

. FUSE (10A)

67F-82151-40-00

$6.07

23

FUSE

5JJ-82151-20-00

Unavailable

24

WIRE, SUB LEAD

2UJ-82509-01-00

Unavailable

25

CLAMP

90464-16061-00

Unavailable

26

CLAMP

90464-16061-00

Unavailable

27

CLAMP(3BG)

90464-16119-00

Unavailable

28

FLASHER RELAY ASSY

3GM-83350-03-00

Unavailable
