2014 Yamaha V Star 250 (XV250EW) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2014 Yamaha V Star 250 (XV250EW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

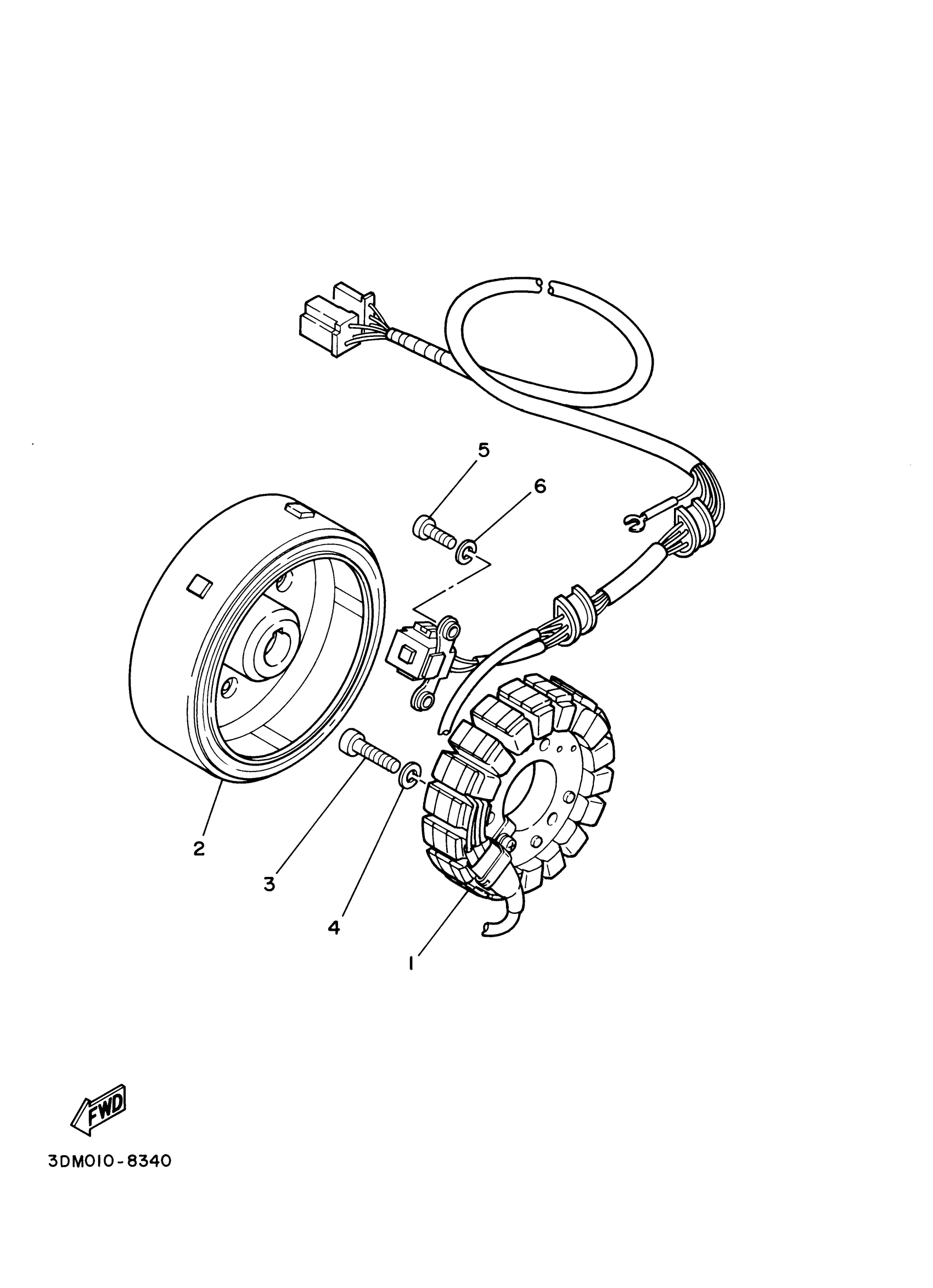

2014 Yamaha V Star 250 (XV250EW) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

3DM-81410-00-00

1

$389.98

In stock

2

ROTOR ASSY

3DM-81450-11-00

—

$283.15

In stock

3

SCREW, PAN

98517-06030-00

1
Out of stock

4

WASHER, SPRING

92907-06100-00

1
Out of stock

5

SCREW, PAN HEAD(JJ6)

98507-05016-00

1

$1.40

In stock

6

WASHER(3SX)

92907-05100-00

1

$6.18

In stock
