- XV250AC (ROUTE 66 CA) 1990
FRONT FORK

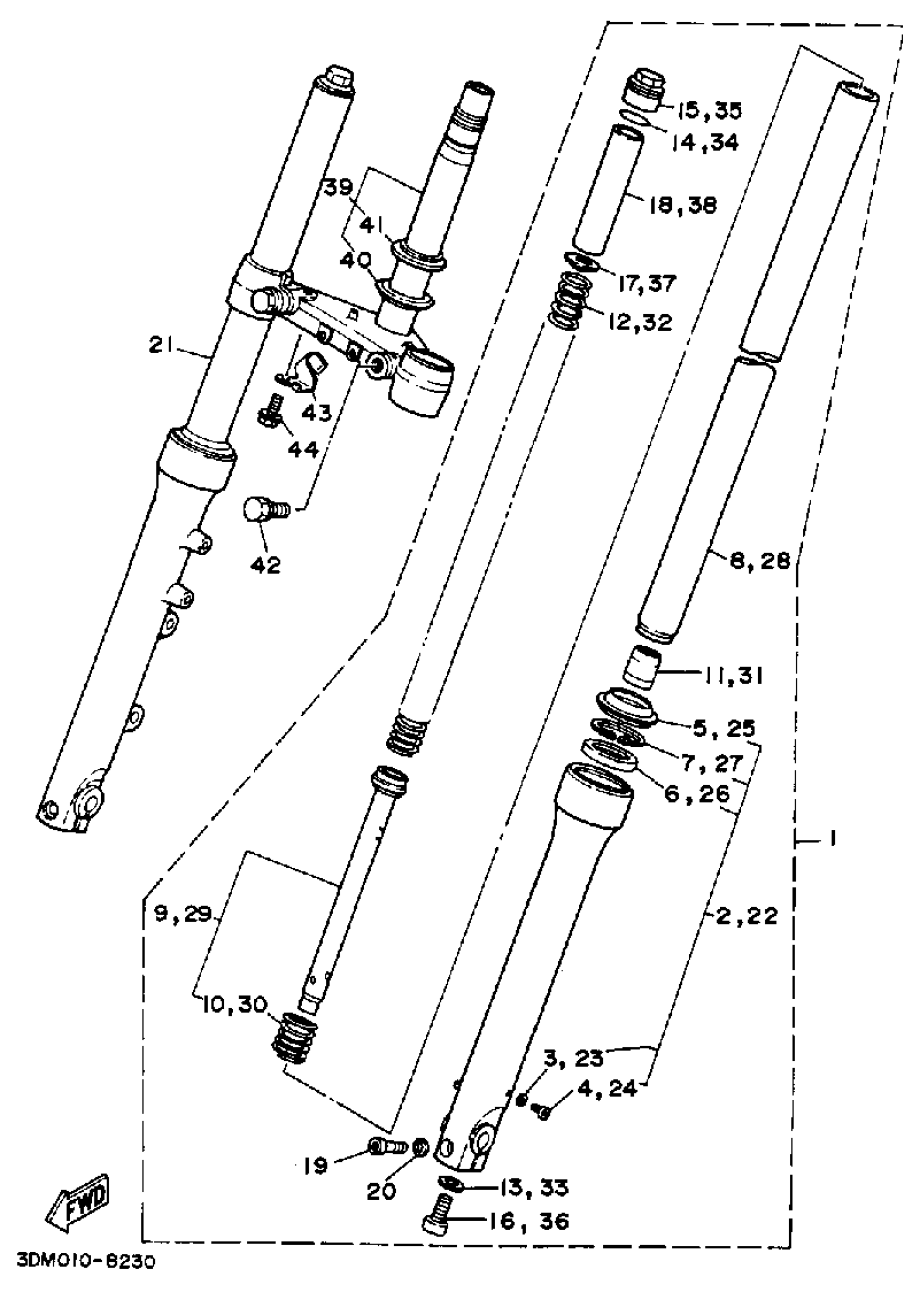

1990 Yamaha Route 66 CA (XV250AC) Front Fork Diagram
Find the part on the Front Fork diagram for your 1990 Yamaha Route 66 CA (XV250AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSEMBLY LASSEMBLY (L.H)
2UJ-23102-00-00
2
. TUBE, OUTER 1
2UJ-23126-00-00
9
CYLINDER, FRTFRK
(2UJ-23170-00-00)
10
.. SPRING, REBOUND
509-23151-L0-00
11
. SPINDLE, TAPER
39K-23173-00-00
17
. SEAT, SPRING UPPER
583-23142-00-00
18
. SPACER
58T-23118-L0-00
19
BOLT, SOCKET
91314-08035-00
21
FRONT FORK ASSEMBLY RASSEMBLY (R.H)
2UJ-23103-00-00
22
. TUBE, OUTER 2
2UJ-23136-00-00
29
CYLINDER, FRTFRK
(2UJ-23170-00-00)
30
.. SPRING, REBOUND
509-23151-L0-00
31
. SPINDLE, TAPER
39K-23173-00-00
37
. SEAT, SPRING UPPER
583-23142-00-00
38
. SPACER
58T-23118-L0-00
39
UNDER BRACKET COMP.
2UJ-23340-21-00
42
UNAVAILABLE IN PRICE BOOK
2U2-33460-00-0
43
HOLDER, BRAKE HOSE
3DM-25886-00-00
