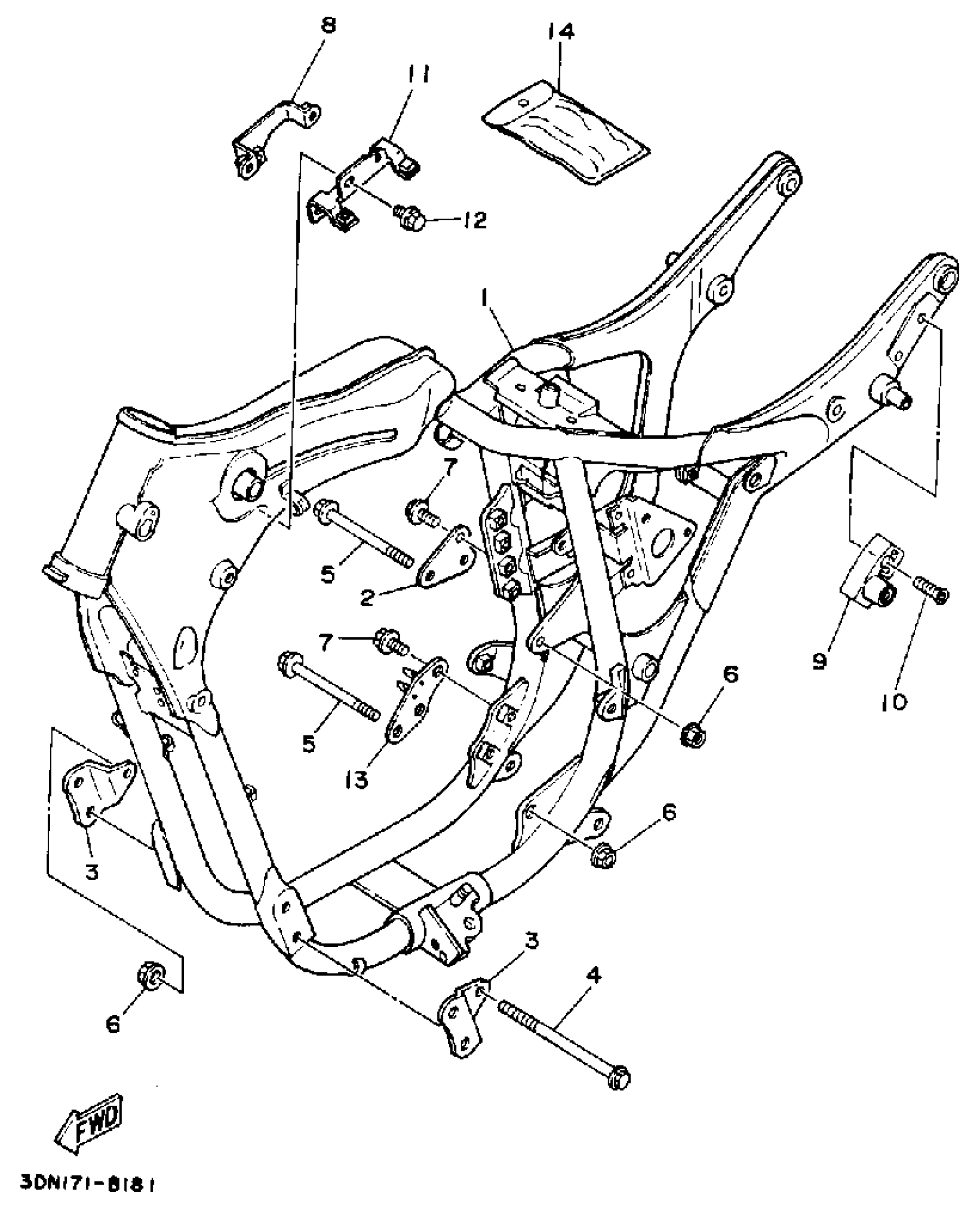

Find the part on the Frame diagram for your 1990 Yamaha Route 66 CA (XV250AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Route 66 CA (XV250AC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

2UJ-21110-03-33

1
Out of stock

2

STAY, ENGINE 5

2UJ-21318-00-33

—

$2.62

In stock

3

STAY, ENGINE 2

2UJ-21315-00-00

1

$14.83

In stock

4

BOLT, FLANGE(2UJ)

95814-08150-00

1

$4.51

In stock

5

BOLT, FLANGE(2UJ)

95814-08110-00

1

$5.66

In stock

6

NUT(55X)

90179-08491-00

1
Out of stock

7

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

8

PLATE, BRIDGE

(2UJ-21243-00-00)

1
Out of stock

9

HELMET HANGER ASSY

26H-21308-01-00

1

$74.80

In stock

10

SCREW (4G1)

90149-06154-00

1

$6.91

In stock

11

BRACKET, IGNITION

(2UJ-2135Y-00-00)

1
Out of stock

12

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

13

STAY, ENGINE 6

(2UJ-21319-00-00)

1
Out of stock

14

TOOL KIT

2UJ-28100-00-00

—

$52.09

In stock
