2007 Yamaha Roadliner CA (XV19WC) Intake Diagram

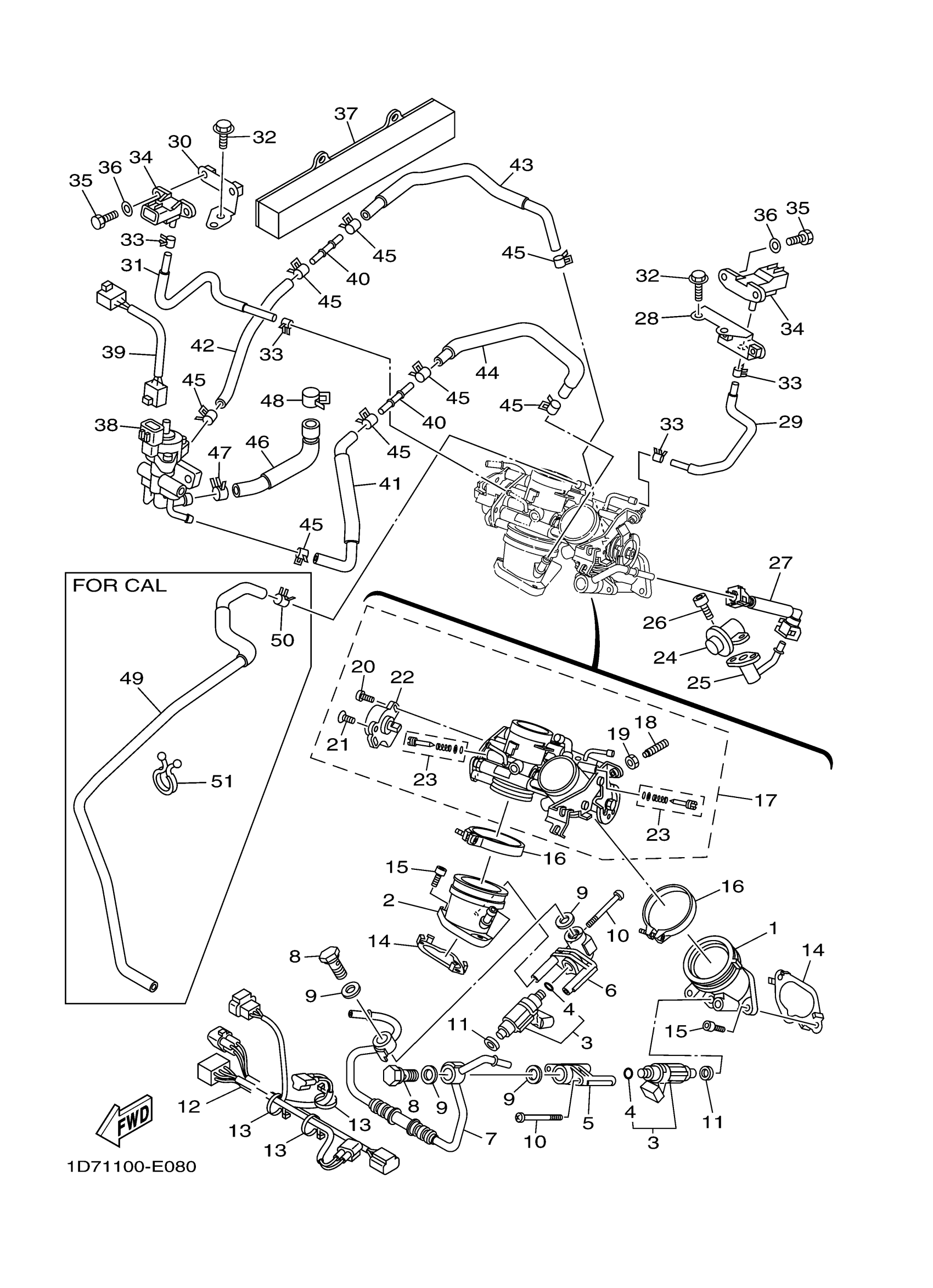

Find the part on the Intake diagram for your 2007 Yamaha Roadliner CA (XV19WC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
JOINT, CARBURETOR 1
1D7-13586-00-00
2
JOINT, CARBURETOR 2
1D7-13596-00-00
3
INJECTOR ASSY
5YU-13761-00-00
4
O-RING
5FL-14147-00-00
5
CONNECTOR
5PX-14188-00-00
6
CONNECTOR
5PX-14189-00-00
7
PIPE
1D7-13938-00-00
8
BOLT 1
4BH-13573-00-00
9
GASKET(4BH)
90430-12219-00
10
SCREW, PAN
98507-06050-00
12
WIRE, SUB LEAD
1D7-82509-30-00
14
SEAL
1D7-14467-00-00
17
THROTTLE BODY ASSY
1D7-13750-01-00
17
THROTTLE BODY ASSY
1D7-13750-11-00
18
SCREW
3FV-14567-00-00
19
NUT, CABLE ADJUSTING
3JD-14161-00-00
21
SCREW, FLAT
98707-04010-00
22
THROTTLE SENSOR ASSY
3P6-85885-01-00
24
REGULATOR, PRESSURE
1D7-13906-00-00
25
JOINT
1D7-13595-00-00
27
PIPE, FUEL 2
1D7-13972-00-00
28
STAY 1
1D7-14493-00-00
29
HOSE, AIR
1D7-13895-00-00
30
STAY 2
1D7-14494-00-00
31
HOSE, AIR 2
1D7-13892-00-00
34
SENSOR, PRESSURE
5PS-82380-00-00
35
BOLT(4TW)
97017-05016-00
36
WASHER(1RW)
92907-05600-00
37
DAMPER 2
1D7-14426-00-00
38
LINEAR, CONTROL VALVE
1D7-85880-01-00
39
WIRE, SUB LEAD
1D7-82509-10-00
40
PIPE
5PX-14466-00-00
41
HOSE 1
1D7-13545-00-00
42
HOSE 2
1D7-13546-00-00
43
HOSE 3
1D7-13547-00-00
44
HOSE, AIR 4
1D7-13548-00-00
46
PIPE, AIR
1D7-13897-00-00
49
PIPE
1D7-14349-00-00
