2007 Yamaha Roadliner CA (XV19WC) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2007 Yamaha Roadliner CA (XV19WC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

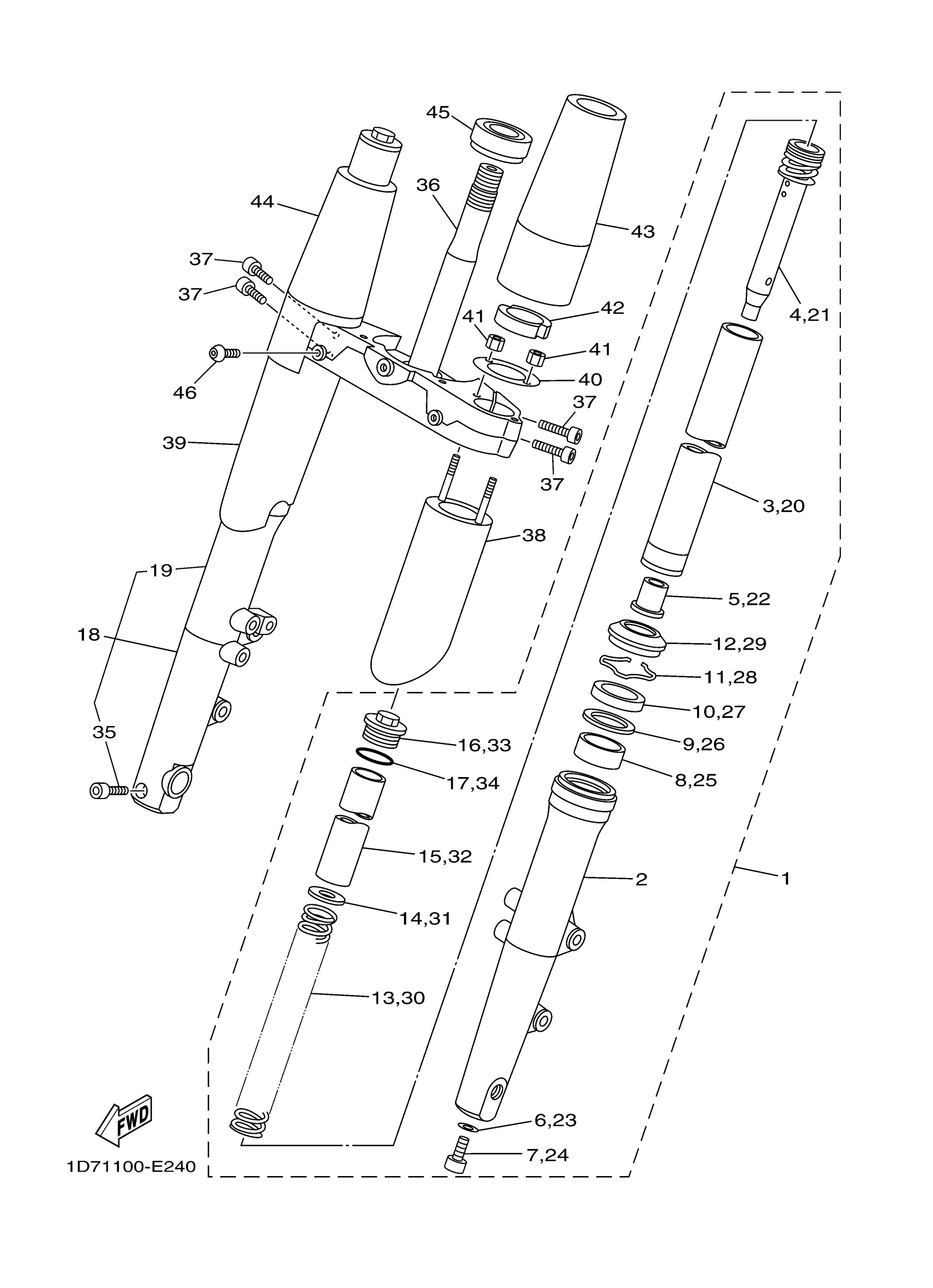

2007 Yamaha Roadliner CA (XV19WC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

1D7-23102-01-00

—

$643.99

In stock

2

TUBE, OUTER (LEFT)

1D7-23126-01-00

1
Out of stock

3

INNER TUBE COMP.1

1D7-23110-00-00

1
Out of stock

4

CYLINDER COMP., FRONT FORK

1D7-23170-00-00

—
Out of stock

5

SPINDLE, TAPER

1D7-23173-00-00

—
Out of stock

6

GASKET

2K8-23158-L0-00

1
Out of stock

7

BOLT

3R4-23181-L0-00

—
Out of stock

8

METAL, SLIDE 1

5TJ-23125-50-00

1

$30.34

In stock

9

WASHER, OIL SEAL

4SS-23146-L0-00

1

$6.72

In stock

10

OIL SEAL

1D7-23145-00-00

1

$20.80

In stock

11

RING, SNAP

4SS-23153-L0-00

1

$6.11

In stock

12

SEAL, DUST

1D7-23144-00-00

1

$28.54

In stock

13

SPRING, FRONT FORK

1D7-23141-00-00

—
Out of stock

14

WASHER, SPRING UPPER

1D7-23149-00-00

1
Out of stock

15

SPACER

1D7-23118-00-00

—
Out of stock

16

BOLT, CAP

1D7-23111-00-00

—
Out of stock

17

O-RING

1D7-23188-00-00

—

$13.80

In stock

18

FRONT FORK ASY R

1D7-23103-01-00

—

$643.99

In stock

19

TUBE, OUTER (RIGHT)

1D7-23136-01-00

—
Out of stock

20

INNER TUBE COMP.1

1D7-23110-00-00

1
Out of stock

21

CYLINDER COMP., FRONT FORK

1D7-23170-00-00

—
Out of stock

22

SPINDLE, TAPER

1D7-23173-00-00

—
Out of stock

23

GASKET

2K8-23158-L0-00

1
Out of stock

24

BOLT

3R4-23181-L0-00

—
Out of stock

25

METAL, SLIDE 1

5TJ-23125-50-00

1

$30.34

In stock

26

WASHER, OIL SEAL

4SS-23146-L0-00

1

$6.72

In stock

27

OIL SEAL

1D7-23145-00-00

1

$20.80

In stock

28

RING, SNAP

4SS-23153-L0-00

1

$6.11

In stock

29

SEAL, DUST

1D7-23144-00-00

1

$28.54

In stock

30

SPRING, FRONT FORK

1D7-23141-00-00

—
Out of stock

31

WASHER, SPRING UPPER

1D7-23149-00-00

1
Out of stock

32

SPACER

1D7-23118-00-00

—
Out of stock

33

BOLT, CAP

1D7-23111-00-00

—
Out of stock

34

O-RING

1D7-23188-00-00

—

$13.80

In stock

35

BOLT,SOCKET

91314-08040-00

—
Out of stock

36

STEERING ASSY

1D7-23400-00-00

1
Out of stock

37

BOLT,SOCKET

91314-08020-00

—

$6.17

In stock

38

COVER, LOWER 1

1D7-23123-00-00

—

$264.48

In stock

39

COVER, LOWER 2

1D7-23133-00-00

—

$262.45

In stock

40

WASHER, FELT

1D7-23165-00-00

—
Out of stock

41

NUT

1D7-23357-00-00

—
Out of stock

42

GASKET

1D7-23163-00-00

—
Out of stock

43

COVER, UPPER 1

1D7-23121-00-00

—

$298.52

In stock

44

COVER, UPPER 2

1D7-23131-00-00

—

$282.54

In stock

45

BEARING

93332-00096-00

—
Out of stock

46

BOLT,HEX. SOCKET BUTTON

90111-08035-00

—
Out of stock

47

FORK SEAL KIT (TWO FORKS)

1D7-W003B-00-00

—

$48.30

In stock
