2007 Yamaha Roadliner CA (XV19WC) Frame Diagram

← All diagrams

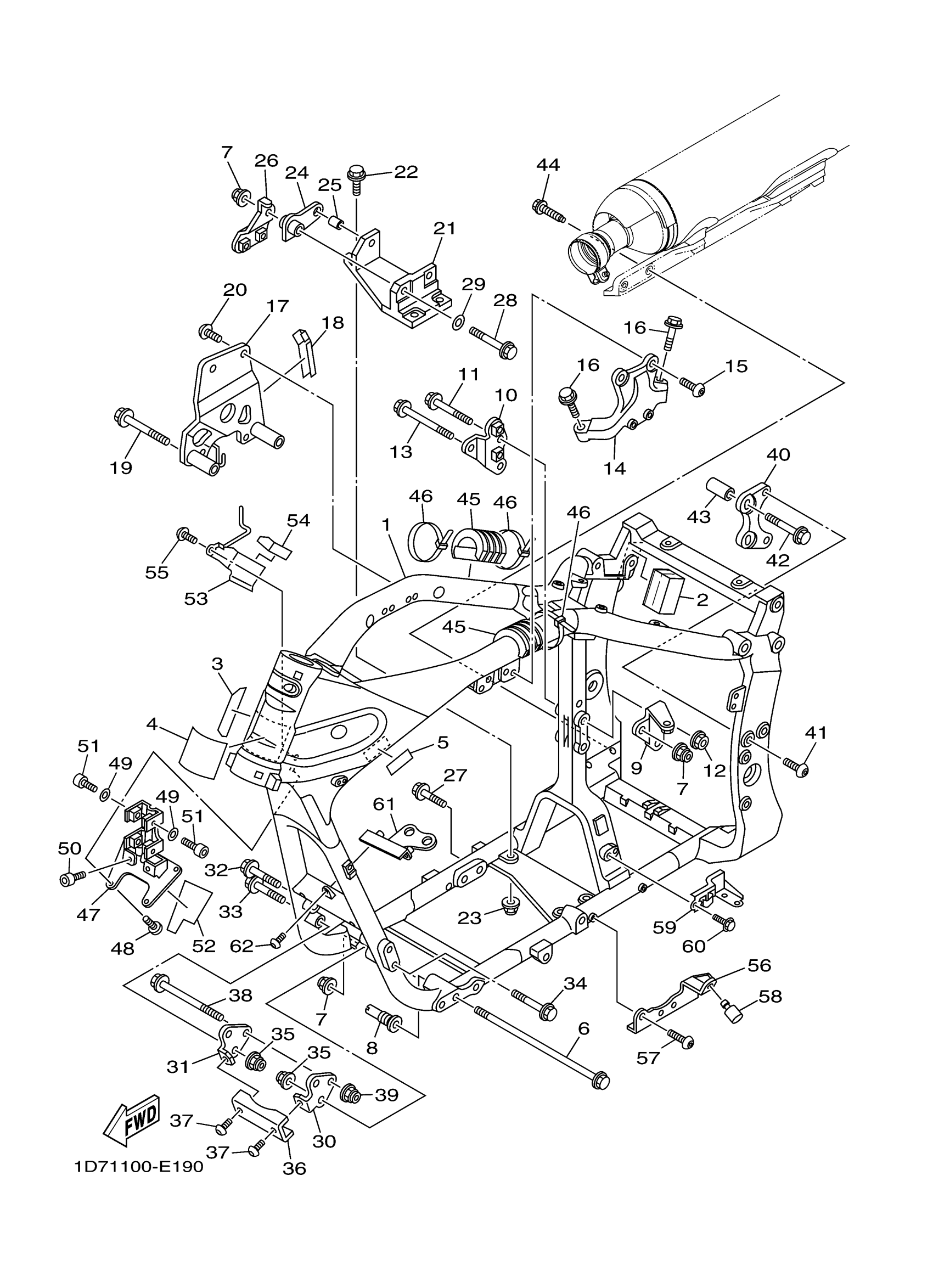

Find the part on the Frame diagram for your 2007 Yamaha Roadliner CA (XV19WC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha Roadliner CA (XV19WC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

1D7-21110-01-00

1
Out of stock

2

DAMPER, LOCATING 2

1D7-21779-00-00

—
Out of stock

3

PROTECTOR, FUEL TANK

1D7-24141-00-00

—
Out of stock

4

SEAL

1D7-2639G-00-00

—
Out of stock

5

SEAL

5PX-21268-00-00

1

$6.23

In stock

6

BOLT, WASHER BASED

90105-126A6-00

—
Out of stock

7

NUT, U FLANGE

95607-12200-00

1

$5.43

In stock

8

BOLT, ENGINE ADJUSTING

5PX-21495-01-00

—
Out of stock

9

STAY, ENGINE 2

1D7-21315-00-00

—
Out of stock

10

STAY, ENGINE 3

5PX-21316-00-00

—
Out of stock

11

BOLT, WASHER BASED(4HM)

90105-10737-00

1

$9.82

In stock

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

13

BOLT, WASHER BASED(36Y)

90105-12309-00

1

$9.77

In stock

14

STAY, ENGINE 3

1D7-21317-00-00

—
Out of stock

15

BOLT

90111-10003-00

1
Out of stock

16

BOLT, FLANGE

90105-12018-00

—

$9.71

In stock

17

STAY, ENGINE 6

1D7-21319-00-00

—
Out of stock

18

SEAL

1D7-21669-00-00

—
Out of stock

19

BOLT, FLANGE

90105-12025-00

—
Out of stock

20

BOLT

90111-10003-00

1
Out of stock

21

STAY, ENGINE 5

1D7-21318-01-00

—
Out of stock

22

BOLT, FLANGE

95817-10030-00

—

$6.17

In stock

23

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

24

STAY 1

1D7-2142G-00-00

—
Out of stock

25

COLLAR

90387-12033-00

—

$6.51

In stock

26

STAY, ENGINE 7

1D7-21387-00-00

—
Out of stock

27

BOLT, FLANGE(4GB)

95817-10045-00

—

$4.52

In stock

28

BOLT

90101-12025-00

—
Out of stock

29

WASHER, PLATE (4N0)

90201-126A7-00

—

$6.28

In stock

30

STAY 2

1D7-2142H-01-00

1
Out of stock

31

STAY 3

1D7-2142J-01-00

1
Out of stock

32

BOLT, FLANGE

90105-10049-00

—
Out of stock

33

BOLT, FLANGE

90105-10060-00

—
Out of stock

34

BOLT, FLANGE

90105-10167-00

—
Out of stock

35

NUT, SELF-LOCKING

90185-10008-00

—

$5.72

In stock

36

BRACKET, MEMBER 1

1D7-2115L-00-00

—
Out of stock

37

BOLT, BUTTON

92014-08020-00

—

$6.68

In stock

38

BOLT, FLANGE

90105-12016-00

—
Out of stock

39

NUT, SELF-LOCKING

90185-12002-00

—
Out of stock

40

STAY 1

1D7-2137F-00-00

—
Out of stock

41

BOLT

90111-10009-00

—
Out of stock

42

BOLT, FLANGE

95817-10075-00

—
Out of stock

43

COLLAR

1D7-21116-01-00

—
Out of stock

44

BOLT, FLANGE

90105-10166-00

—
Out of stock

45

DAMPER, LOCATING 3

4YR-24183-01-00

—
Out of stock

46

BAND

3MA-82591-00-00

—

$8.82

In stock

47

BRACKET, COIL

1D7-21359-00-00

—
Out of stock

48

BOLT, BUTTON HEAD

92017-06014-00

—

$2.78

In stock

49

WASHER, PLATE

90201-06045-00

—

$6.18

In stock

50

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

51

. BOLT

91380-06020-00

1

$2.00

In stock

52

DAMPER

1D7-2139X-00-00

—
Out of stock

53

HOLDER, WIRE 2

1D7-21598-00-00

—
Out of stock

54

SEAL

1D7-21269-00-00

—
Out of stock

55

BOLT,HEX. SOCKET BUTTON

90111-06146-00

—

$0.98

In stock

56

BRACKET, HORN

1D7-21343-00-00

—
Out of stock

57

BOLT, BUTTON HEAD

92012-08020-00

—
Out of stock

58

STOPPER, MAIN STAND

1D7-27114-00-00

—
Out of stock

59

BRACKET, SWITCH

1D7-21453-00-00

—
Out of stock

60

BOLT, WASHER BASED(JA9)

90105-06696-00

—

$6.29

In stock

61

STAY, OIL COOLER

1D7-2136H-00-00

—
Out of stock

62

BOLT, BUTTON

92017-06020-00

—

$2.57

In stock
