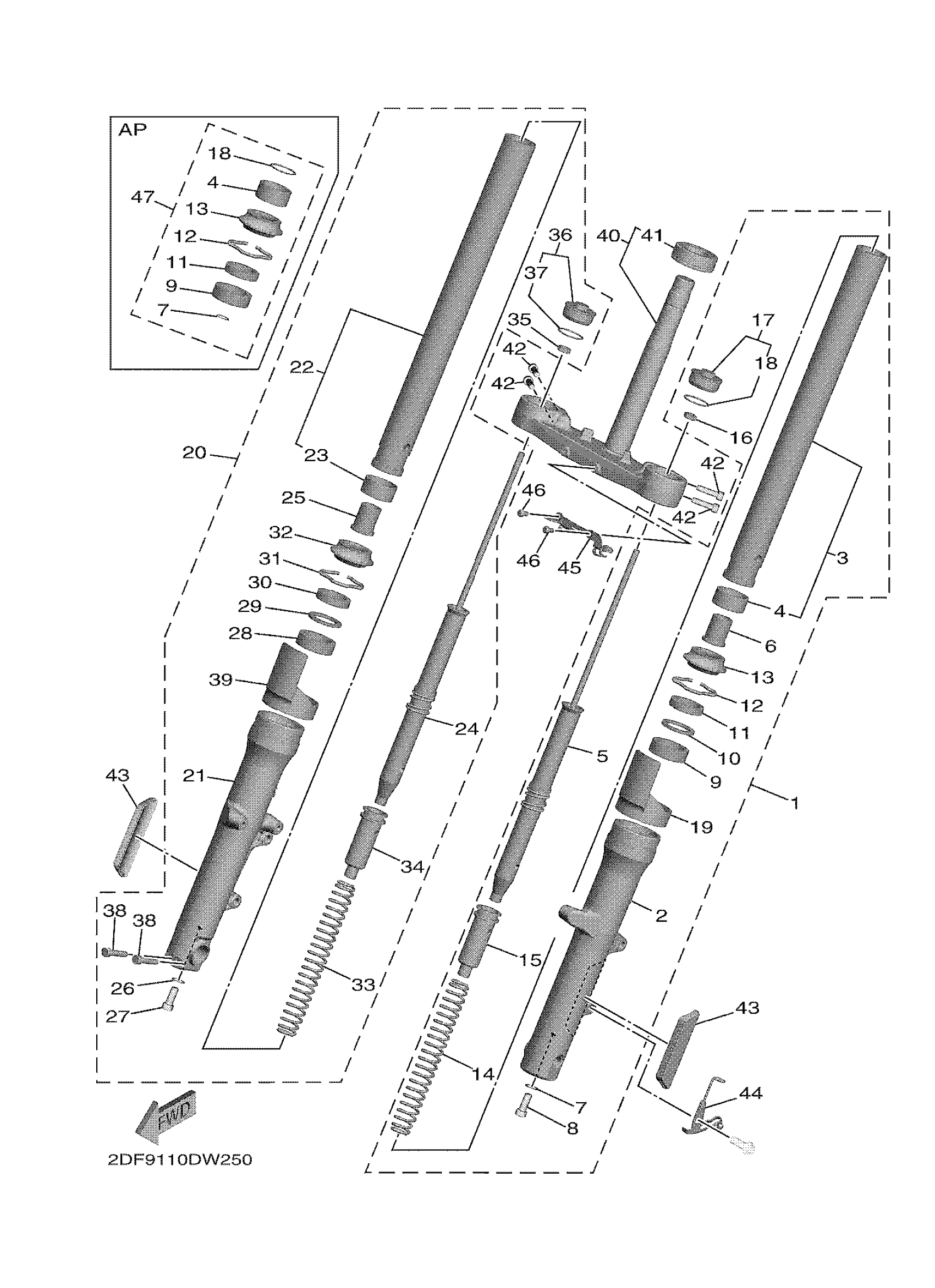

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

2DF-23102-00-00

Unavailable

2

TUBE, OUTER (L.H)

2DF-23126-00-00

Unavailable

3

INNER TUBE COMP.1

2DF-23110-00-00

$154.00

4

PISTON, FRONT FORK

5ET-23171-L0-00

$18.85

5

CYLINDER COMP., FRONT FORK

2DF-23170-00-00

$178.05

6

SPINDLE, TAPER

5UX-23173-00-00

Unavailable

7

GASKET

509-23158-L0-00

$13.39

8

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

9

METAL, SLIDE 1

5TJ-23125-50-00

$29.12

10

WASHER, OIL SEAL

4SS-23146-L0-00

$6.29

11

OIL SEAL

1D7-23145-00-00

$19.42

12

RING, SNAP

4SS-23153-L0-00

$5.70

13

SEAL, DUST

1D7-23144-00-00

$27.39

14

SPRING, FRONT FORK

2DF-23141-00-00

Unavailable

15

SPACER

1MD-23118-00-00

Unavailable

16

NUT

5UX-23778-00-00

Unavailable

17

BOLT, CAP

2DF-23111-00-00

Unavailable

18

O-RING

1D7-23188-00-00

Unavailable

19

COVER

4SV-2331G-00-00

Unavailable

20

FRONT FORK ASSY (R.H)

2DF-23103-00-00

Unavailable

21

TUBE, OUTER 2

2DF-23136-00-00

Unavailable

22

INNER TUBE COMP.1

2DF-23110-00-00

$154.00

23

PISTON, FRONT FORK

5ET-23171-L0-00

$18.85

24

CYLINDER COMP., FRONT FORK

2DF-23170-00-00

$178.05

25

SPINDLE, TAPER

5UX-23173-00-00

Unavailable

26

GASKET

509-23158-L0-00

$13.39

27

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

28

METAL, SLIDE 1

5TJ-23125-50-00

$29.12

29

WASHER, OIL SEAL

4SS-23146-L0-00

$6.29

30

OIL SEAL

1D7-23145-00-00

$19.42

31

RING, SNAP

4SS-23153-L0-00

$5.70

32

SEAL, DUST

1D7-23144-00-00

$27.39

33

SPRING, FRONT FORK

2DF-23141-00-00

Unavailable

34

SPACER

1MD-23118-00-00

Unavailable

35

NUT

5UX-23778-00-00

Unavailable

36

BOLT, CAP

2DF-23111-00-00

Unavailable

37

O-RING

1D7-23188-00-00

Unavailable

38

BOLT,SOCKET

91314-08040-00

Unavailable

39

COVER

4SV-2331G-00-00

Unavailable

40

STEERING ASSY

2DF-23400-00-00

Unavailable

41

BEARING

93332-000B1-00

Unavailable

42

BOLT,SOCKET

91314-08030-00

Unavailable

43

REFLECTOR ASSY

2DF-85110-00-00

Unavailable

44

HOLDER, BRAKE HOSE

2DF-25886-00-00

Unavailable

45

BRACKET 2

2DF-2334H-00-00

Unavailable

46

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

47

FORK SEAL KIT (ONE FORK)

2DF-W003B-00-00

Unavailable
