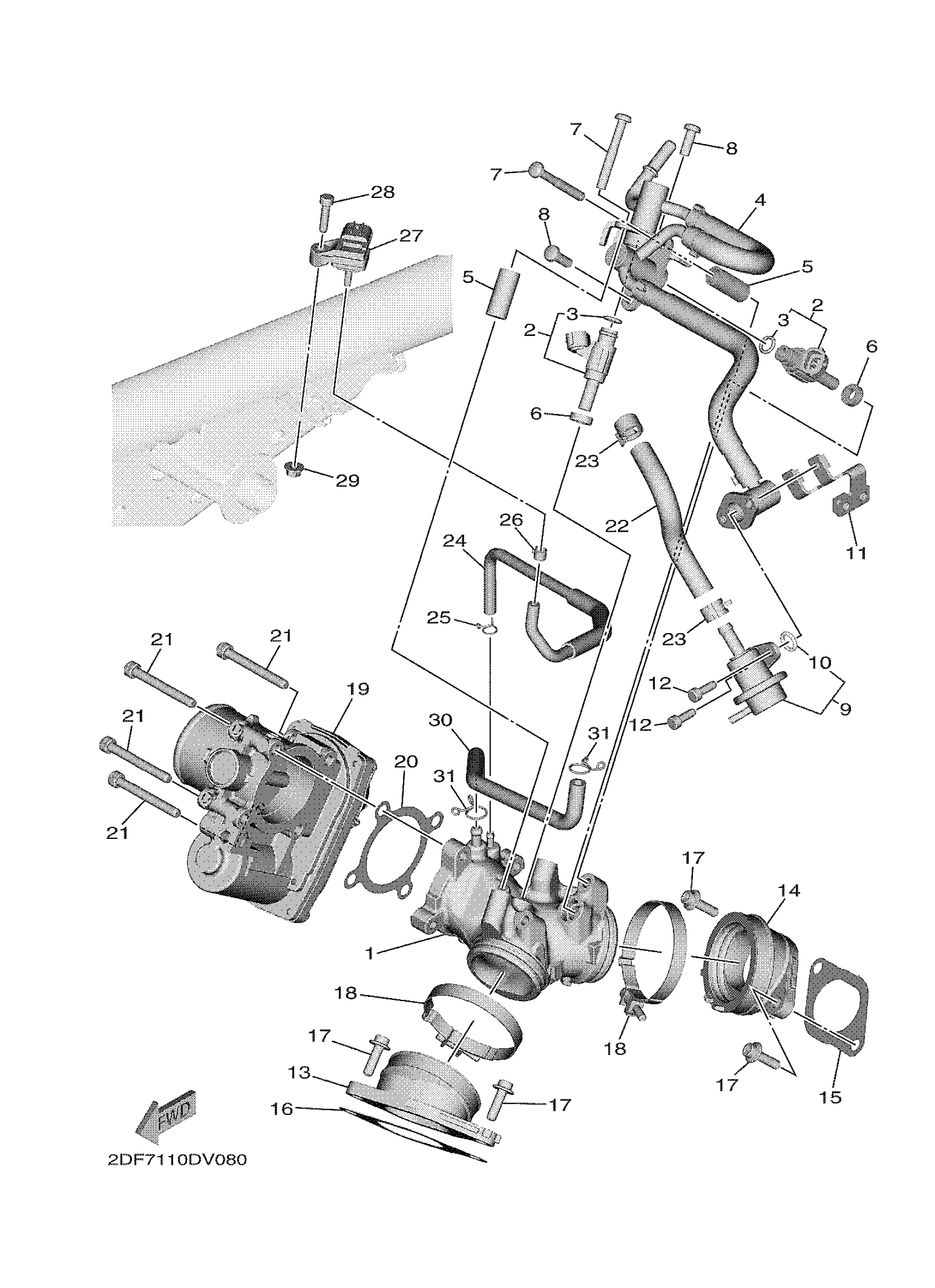

Yamaha XV19FLL (STAR VENTURE) 2DF7 2020 INTAKE Diagram

#

Description
Price

1

MANIFOLD

2DF-13640-00-00

$179.36

2

INJECTOR

2DF-13761-00-00

$84.64

3

. O-RING

68V-1416A-00-00

$10.18

4

PIPE INLET ASSEMBLY

2DF-13930-00-00

Unavailable

5

COLLAR

2DF-13716-00-00

$5.24

6

. GASKET, MANIFOLD

8FP-13556-10-00

$5.55

7

SCREW, PAN HEAD

98502-06045-00

$0.58

8

SCREW, PAN HEAD

98580-06016-00

$2.88

9

REGULATOR, PRESSURE

5C7-13906-00-00

$179.55

10

O-RING

5S7-13769-00-00

$29.32

11

BRACKET 1

2DF-14291-00-00

$11.21

12

BOLT

91312-05014-00

$2.56

13

JOINT, CARBURETOR 1

2DF-13586-00-00

Unavailable

14

JOINT, CARBURETOR 2

2DF-13596-00-00

Unavailable

15

SEAL

2DF-14457-00-00

Unavailable

16

SEAL

2DF-14467-00-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06348-00

Unavailable

18

HOSE CLAMP ASSY

90450-62004-00

Unavailable

19

THROTTLE BODY ASSY

2DF-13750-00-00

Unavailable

20

SEAL

2DF-14452-00-00

Unavailable

21

BOLT

91312-06050-00

Unavailable

22

PIPE 5

2DF-24315-00-00

Unavailable

23

CLIP

90467-12003-00

Unavailable

24

HOSE, VACUUM SENSING 1

2DF-13542-00-00

Unavailable

25

CLIP (16G)

90467-08021-00

Unavailable

26

CLIP(42X)

90467-07093-00

Unavailable

27

SENSOR, PRESSURE

1WS-82380-00-00

Unavailable

28

BOLT, SOCKET

91317-05020-00

Unavailable

29

NUT, FLANGE

95702-05500-00

Unavailable

30

PIPE

2DF-14465-00-00

Unavailable

31

CLIP

90467-090A2-00

Unavailable
