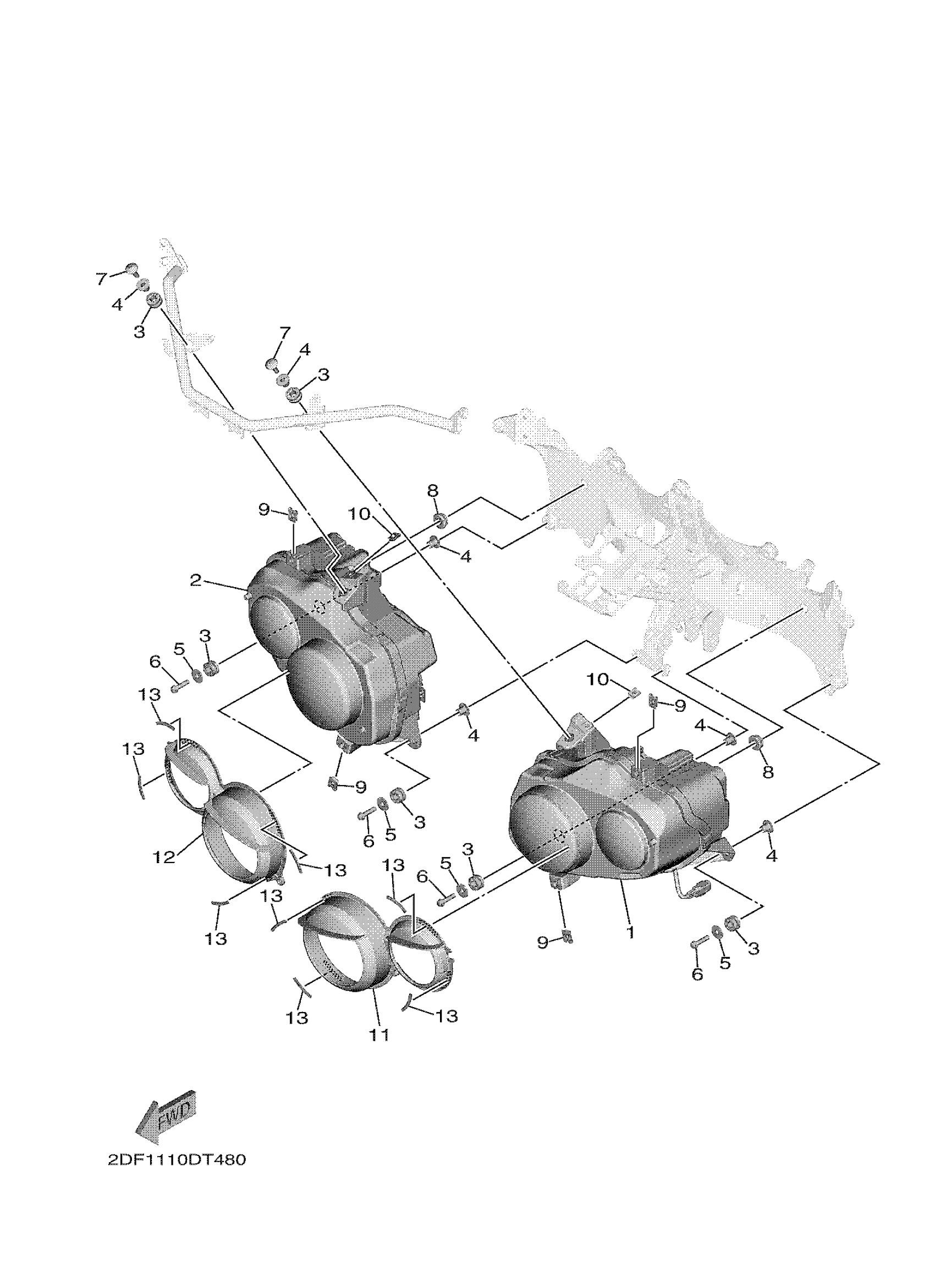

Yamaha XV19FLL (STAR VENTURE) 2DF7 2020 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

2DF-84300-20-00

$750.76

2

HEADLIGHT ASSY

2DF-84300-30-00

Unavailable

3

DAMPER

5PS-83513-00-00

$3.43

4

COLLAR

90387-06161-00

$5.81

5

WASHER, PLATE

90201-06036-00

$5.84

6

BOLT, FLANGE

95022-06025-00

$1.37

7

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$4.46

8

GROMMET

90480-13014-00

$6.39

9

NUT, SPRING

90183-060A2-00

$7.94

10

NUT, SPRING

90183-050A6-00

$2.21

11

COVER, HEADLIGHT 1

2DF-2838D-00-00

Unavailable

12

COVER, HEADLIGHT 2

2DF-2838S-00-00

$65.91

13

SHEET

2DF-8336V-00-00

$0.76
