Description

Price

1

PEDAL, BRAKE

5C7-27211-00-00

$278.25

2

COVER, SHIFT PEDAL

5VN-18113-00-00

$13.06

3

PIN, PEDAL CRANK

5C7-27813-01-00

$11.31

4

NUT, U(4NK)

95604-06100-00

$6.68

5

BOLT

5C7-27434-09-00

$39.07

6

WASHER, PLATE

90201-18022-00

$5.05

7

WASHER, PLATE

90201-08061-00

$6.23

8

SPRING, SIDE STAND

5C7-27316-00-00

$7.66

9

PIN, CLEVIS (5X6)

91701-06018-00

$4.48

10

PIN, COTTER

91490-16020-00

$6.23

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

12

JOINT

5C7-27222-00-00

$66.52

13

NUT, HEXAGON SMALL

95317-08700-00

$7.05

14

BRACKET, MASTER CYLINDER

1D7-25867-00-00

$58.88

15

BOLT, BUTTON HEAD(3YF)

92014-08035-00

$6.68

16

PROTECTOR

5PX-27491-00-00

$14.83

17

BOLT, BUTTON HEAD

92014-08014-00

$6.68

18

RR. MASTER CYLINDER ASSY.

1D7-2583V-00-00

$166.18

19

CYLINDER KIT, MASTER

1FK-W0042-50-00

$61.74

20

CIRCLIP

2VN-25866-00-00

$5.93

21

O-RING (22U)

93210-15566-00

$5.78

22

JOINT

2VN-2582A-50-00

$18.97

23

BOLT, BUTTON HEAD(3YF)

92014-08035-00

$6.68

24

HOSE, RESERVOIR

1D7-25895-00-00

$61.23

25

CLIP (7K7)

90467-11044-00

$5.10

26

TANK, RESERVOIR

5YU-25894-00-00

$18.97

27

DIAPHRAGM, RESERVOIR

55U-25854-00-00

$21.68

28

PLATE, DIAPHRAGM

3GM-2585B-20-00

$16.11

29

CAP, RESERVOIR

5YU-25852-00-00

$29.67

30

SCREW, FLAT HEAD

98706-04040-00

$1.23

31

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$2.65

32

CLAMP

90464-14005-00

$3.25

33

CLAMP(4HM)

90464-15192-00

$6.17

34

HOLDER, FUEL PIPE

1D7-21374-00-00

$14.52

35

CLAMP

90464-14006-00

$4.26

36

PROTECTOR, BRAKE HOSE

1D7-25881-00-00

$50.60

37

BAND

1UA-82591-00-00

$4.12

38

HOSE, BRAKE 4

5C7-2581J-01-00

Unavailable

39

HOLDER, BRAKE HOSE 5

1D7-2588F-00-00

$14.38

40

BOLT, FLANGE

95022-06012-00

$3.00

41

HOLDER, BRAKE HOSE

5C7-2587A-00-00

$42.02

42

BOLT, FLANGE

95022-06012-00

$3.00

43

HOLDER, BRAKE HOSE

5GJ-25886-10-00

$3.86

44

BOLT, FLANGE

95022-06010-00

$5.45

45

BOLT, UNION

90401-10172-00

$3.72

46

GASKET

90430-10005-00

$7.06

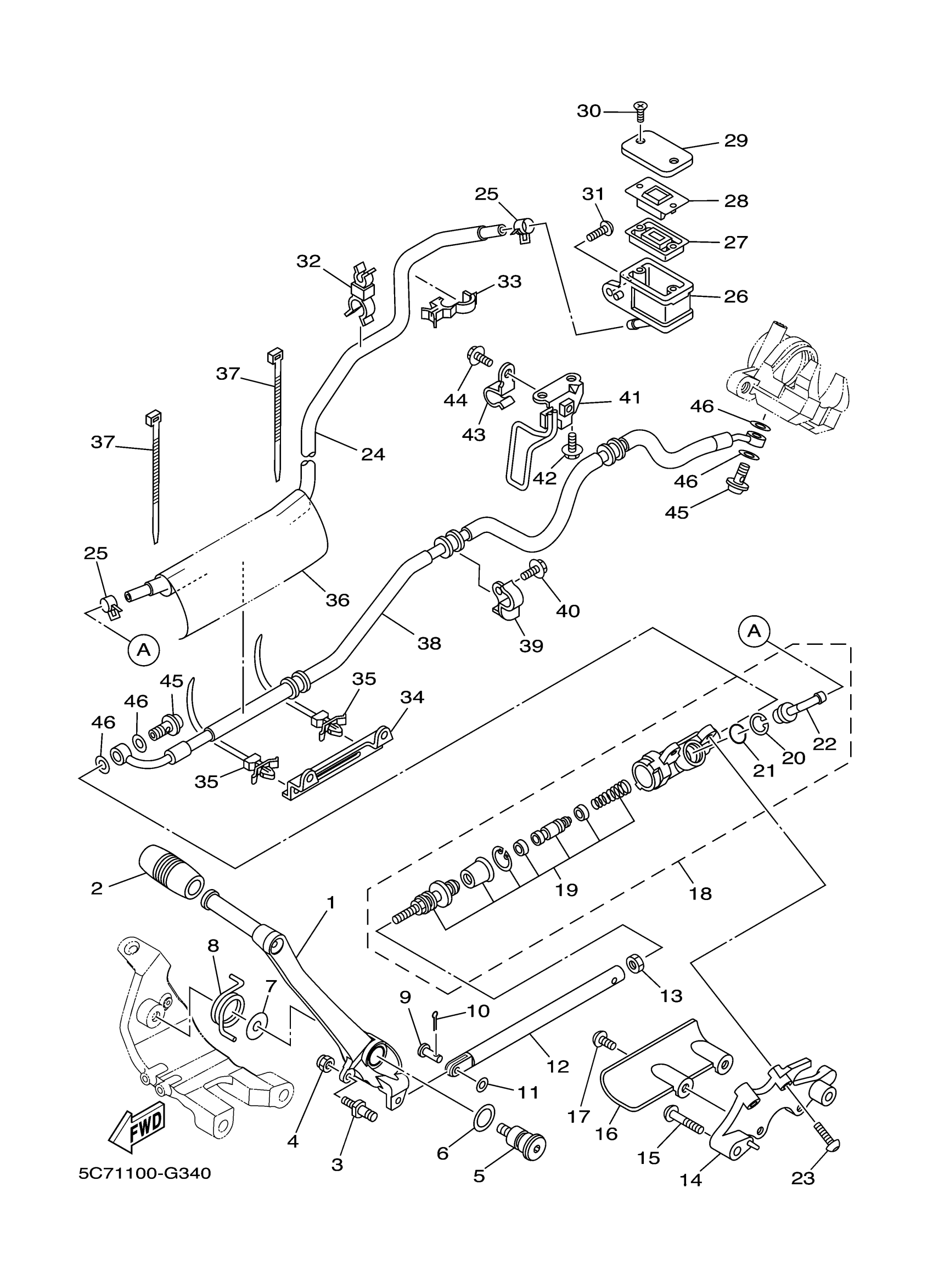

Yamaha XV19CYCB (RAIDER CA) 29S5 2009 REAR MASTER CYLINDER Diagram
