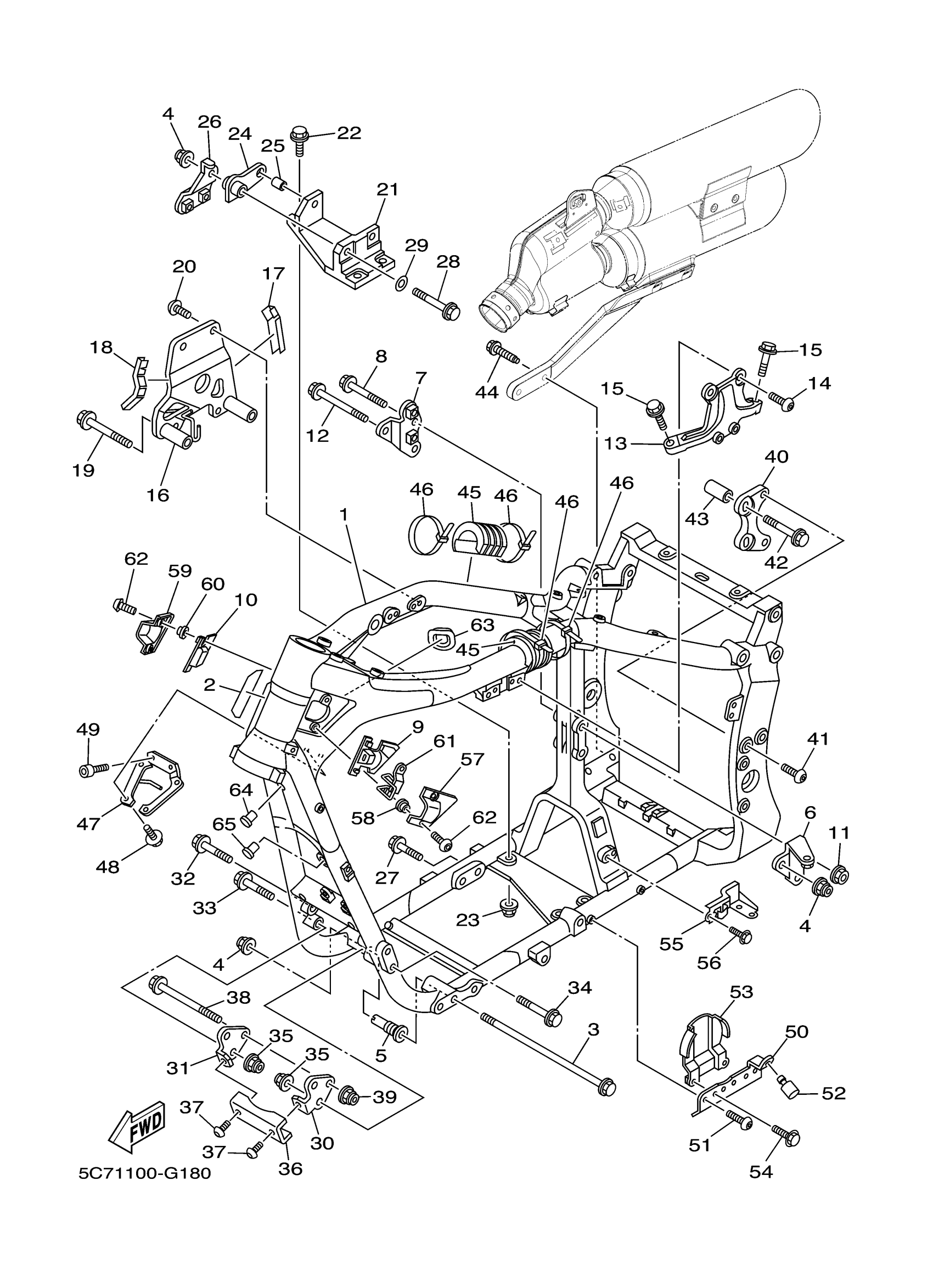

Yamaha XV19CYCB (RAIDER CA) 29S5 2009 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5C7-21110-01-00

$3,943.99

2

PROTECTOR, FUEL TANK

1D7-24141-00-00

$8.40

3

BOLT, WASHER BASED

90105-126A6-00

$18.54

4

NUT, U FLANGE

95607-12200-00

$5.43

5

BOLT, ENGINE ADJUSTING

5PX-21495-01-00

$29.85

6

STAY, ENGINE 2

1D7-21315-00-00

$28.28

7

STAY, ENGINE 3

5PX-21316-00-00

$14.62

8

BOLT, WASHER BASED(4HM)

90105-10737-00

$9.82

9

DAMPER 2

5C7-2112C-00-00

$14.17

10

DAMPER 3

5C7-2112D-00-00

$14.17

11

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

12

BOLT, WASHER BASED(36Y)

90105-12309-00

$9.77

13

STAY, ENGINE 3

5C7-21317-00-00

$165.69

14

BOLT

90111-10003-00

$6.15

15

BOLT, FLANGE

90105-12018-00

$9.71

16

STAY, ENGINE 6

5C7-21319-00-00

$201.92

17

SEAL

1D7-21669-00-00

$7.43

18

SEAL

5C7-21268-00-00

$7.74

19

BOLT, FLANGE

90105-12067-00

$8.18

20

BOLT,HEX. SOCKET BUTTON

90111-10030-00

$3.57

21

STAY, ENGINE 5

1D7-21318-01-00

$278.20

22

BOLT, FLANGE

95817-10030-00

$6.17

23

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

24

STAY 1

1D7-2142G-00-00

$34.68

25

COLLAR

90387-12033-00

$6.51

26

STAY, ENGINE 7

1D7-21387-00-00

$17.68

27

BOLT, FLANGE(4GB)

95817-10045-00

$4.52

28

BOLT

90101-12025-00

$12.05

29

WASHER, PLATE (4N0)

90201-126A7-00

$6.28

30

STAY 2

1D7-2142H-01-00

Unavailable

31

STAY 3

1D7-2142J-01-00

Unavailable

32

BOLT, FLANGE

90105-10049-00

$6.46

33

BOLT, FLANGE

90105-10060-00

$5.46

34

BOLT, FLANGE

90105-10167-00

$7.62

35

NUT, SELF-LOCKING

90185-10008-00

$5.72

36

BRACKET, MEMBER 1

1D7-2115L-00-00

$21.68

37

BOLT, BUTTON

92014-08020-00

$6.68

38

BOLT, FLANGE

90105-12016-00

$11.26

39

NUT, SELF-LOCKING

90185-12002-00

$10.05

40

STAY 1

1D7-2137F-00-00

$42.31

41

BOLT

90111-10009-00

$5.37

42

BOLT, FLANGE

95817-10075-00

$4.89

43

COLLAR

1D7-21116-01-00

$8.58

44

BOLT, FLANGE

90105-10166-00

$7.03

45

DAMPER, LOCATING 3

5C7-24183-00-00

$11.85

46

BAND

3MA-82591-00-00

$8.70

47

STAY 1

5C7-2116A-00-00

$54.00

48

BOLT, FLANGE(4DU)

95027-06014-00

$0.74

49

BOLT,SOCKET

91317-06020-00

$2.11

50

BRACKET, HORN

5C7-21343-00-00

$101.83

51

BOLT

90111-08002-00

$7.25

52

STOPPER, MAIN STAND

1D7-27114-00-00

$5.17

53

COVER, HORN

5C7-2317L-00-00

$58.23

54

BOLT, FLANGE

95022-06012-00

$3.00

55

BRACKET, SWITCH

5C7-21453-00-00

$19.14

56

BOLT, WASHER BASED(JA9)

90105-06696-00

$6.29

57

COVER, SIDE 5

5C7-2171E-00-00

$12.27

58

COLLAR

90387-06210-00

$6.14

59

COVER, SIDE 6

5C7-2171X-00-00

$16.91

60

COLLAR

90387-06192-00

$4.68

61

GUIDE

5C7-2171H-00-00

$30.32

62

BOLT, BUTTON HEAD

92017-06016-00

$6.17

63

GROMMET

5C7-21773-00-00

$10.38

64

PLUG(55K)

90338-16148-00

$9.89

65

PLUG(55K)

90338-16148-00

$9.89
