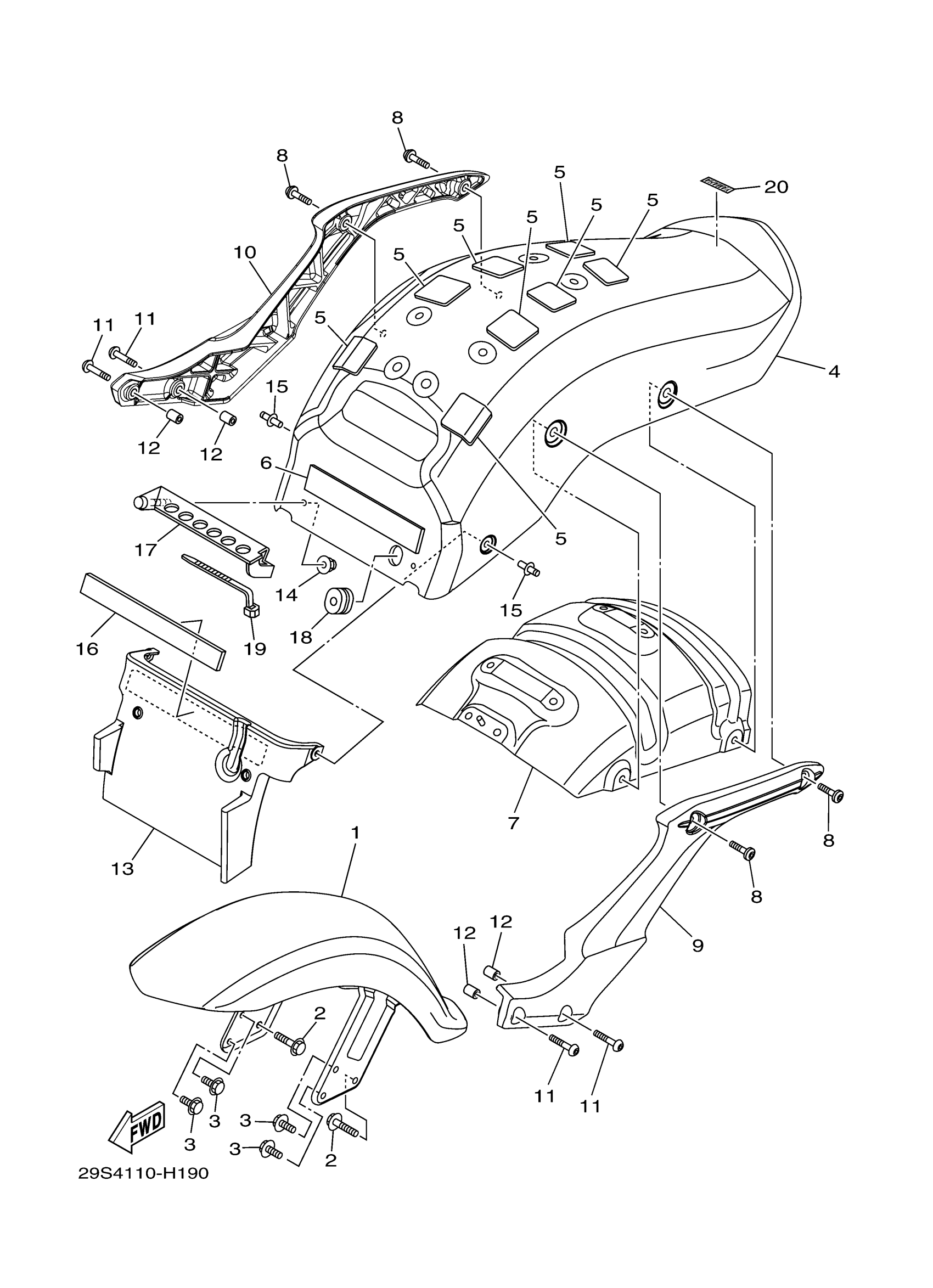

Yamaha XV19CYCB (RAIDER CA) 29S5 2009 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5C7-YK215-02-P1

Unavailable

2

BOLT, WITH WASHER

90119-08111-00

$5.38

3

BOLT, WITH WASHER

90119-08110-00

$5.09

4

REAR FENDER C0MP.

5C7-YK216-00-P1

Unavailable

5

SEAL

5PX-21669-01-00

$9.45

6

DAMPER

5C7-21649-00-00

$6.36

7

STAY, REAR

5C7-21643-00-00

$286.56

8

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

$6.67

9

STAY, FENDER 1

5C7-21613-01-00

Unavailable

10

STAY, FENDER 2

5C7-21614-01-00

Unavailable

11

BOLT, BUTTON HEAD(3LS)

92014-10050-00

$7.45

12

PIN, DOWEL

99530-14016-00

$3.05

13

GUARD, MUD

5C7-21629-00-00

Unavailable

14

NUT, U FLANGE

95604-06200-00

$2.32

15

RIVET(4PH)

90269-07077-00

$6.60

16

DAMPER 2

5C7-21639-00-00

Unavailable

17

BRACKET, REAR STAY

5C7-21688-00-00

Unavailable

18

GROMMET

90480-01015-00

Unavailable

19

CLAMP

90464-13077-00

Unavailable

20

EMBLEM, YAMAHA

3WF-2153E-71-00

Unavailable
