Description

Price

1

CRANKSHAFT ASSY

5C7-11400-01-00

$946.99

2

CONNECTING ROD ASSY

5C7-11650-01-00

$316.09

3

BOLT, CONNECTING ROD

5YU-11654-00-00

$6.91

4

PLANE BEARING, CONNECTING ROD

5YU-11656-00-00

$15.62

4

PLANE BEARING, CONNECTING ROD

5YU-11656-10-00

$15.51

4

PLANE BEARING, CONNECTING ROD

5YU-11656-20-00

$15.04

4

PLANE BEARING, CONNECTING ROD

5YU-11656-30-00

$15.12

4

PLANE BEARING, CONNECTING ROD

5YU-11656-40-00

$14.46

5

PISTON (STD)

1D7-11631-00-00

$151.95

6

PISTON RING SET (STD)

1D7-11610-00-00

$47.75

7

CIRCLIP

93450-24154-00

$2.86

8

PIN, PISTON

5VK-11633-00-00

$36.42

9

CIRCLIP

93450-24154-00

$2.86

10

GEAR,DRIVE SET

1D7-W114B-00-00

$302.66

11

BOLT, WASHER BASED (4H7)

90105-10152-00

$9.08

12

KEY, STRAIGHT

90282-04001-00

$4.85

13

SHAFT 1

1D7-11455-00-00

$30.18

14

O-RING

93210-06003-00

$4.25

15

BRACKET

1D7-1135A-00-00

$28.38

16

BOLT

90109-06028-00

$1.37

17

PIN, DOWEL

99530-08012-00

$6.62

18

WEIGHT 1

1D7-11454-00-00

$73.69

19

WEIGHT 3

1D7-1145A-00-00

$77.23

20

BOLT,SOCKET HEAD

91314-06020-00

$2.05

21

HOUSING

1D7-11444-00-00

$224.77

22

SCREW

90149-06096-00

Unavailable

23

WASHER, WEIGHT 1

1D7-11483-00-00

$26.58

24

GASKET

1D7-11479-00-00

$28.83

25

BREAKER GEAR SET

1D7-W114A-01-00

$149.40

26

KEY, STRAIGHT

90282-04001-00

$4.85

27

BOLT, WASHER BASED(1TX)

90105-10445-00

$9.68

28

WEIGHT 2

1D7-11464-00-00

$163.34

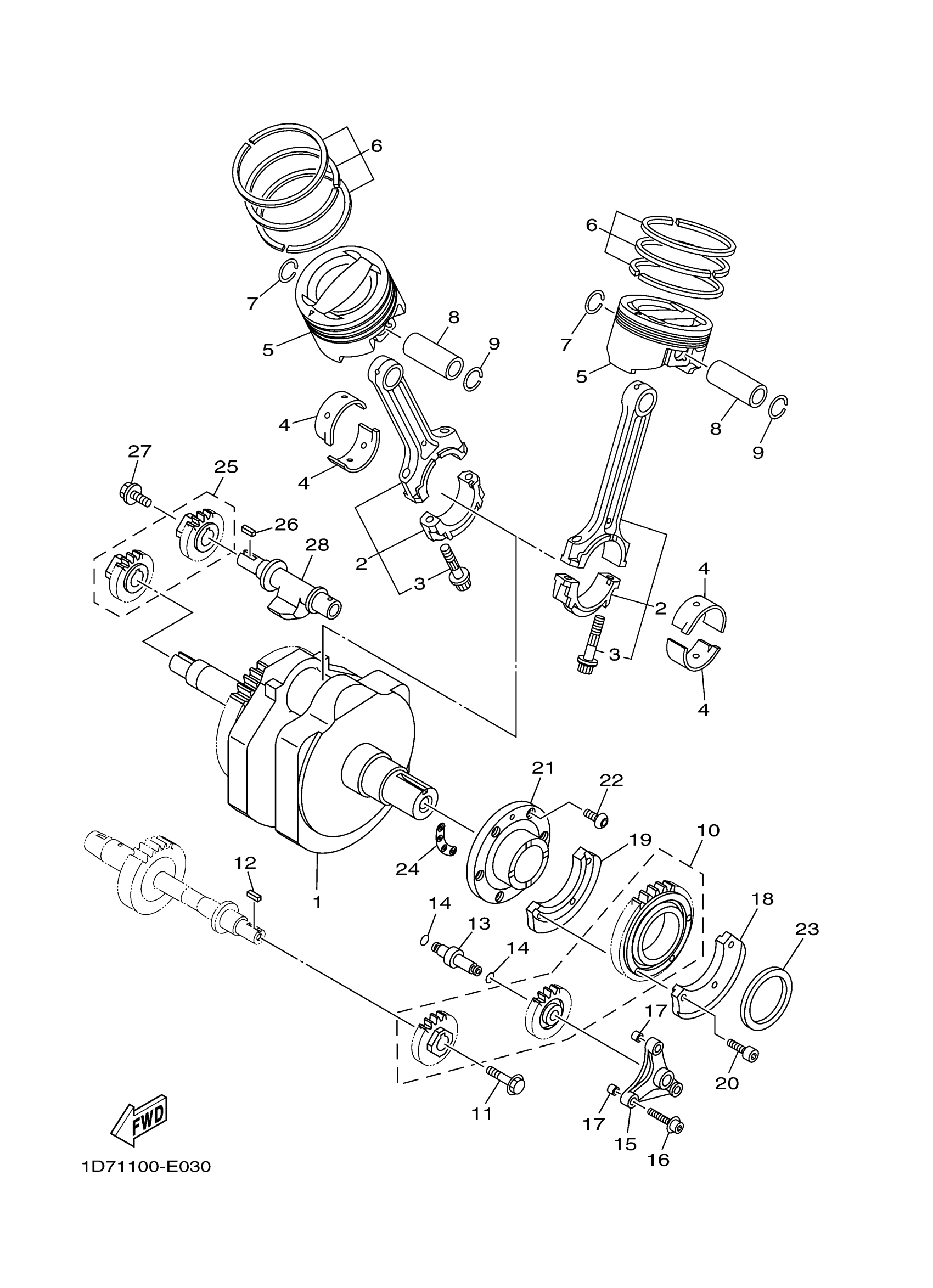

Yamaha XV19CYCB (RAIDER CA) 29S5 2009 CRANKSHAFT PISTON Diagram
