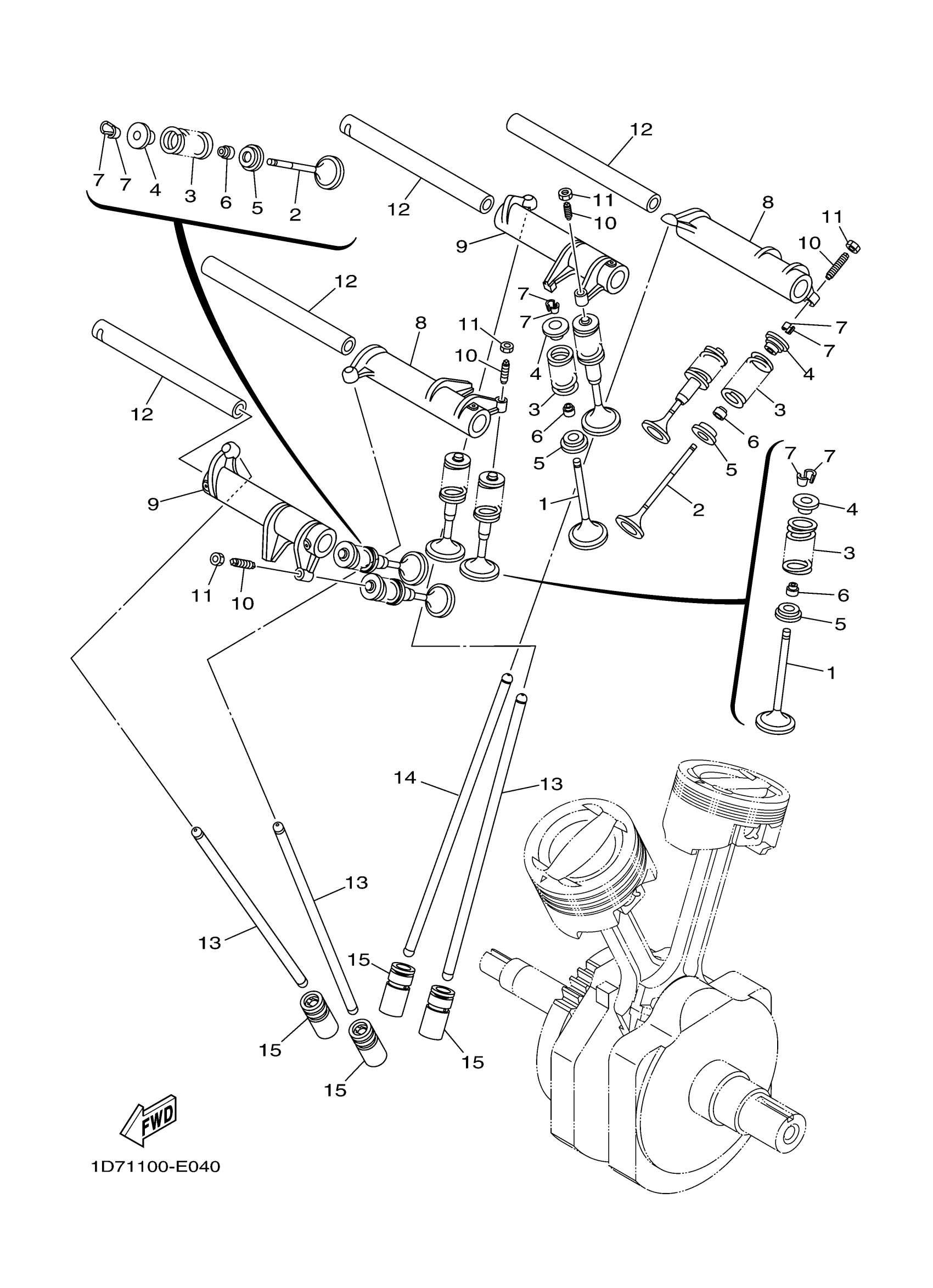

Find the part on the Valve diagram for your 2012 Yamaha Raider S (XV19CSBP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Raider S (XV19CSBP) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

1D7-12111-00-00

1
Out of stock

2

VALVE, EXHAUST

1D7-12121-00-00

1
Out of stock

3

SPRING, VALVE INNER

1D7-12113-00-00

1
Out of stock

4

RETAINER, VALVE SPRING

3YF-12117-01-00

1
Out of stock

5

SEAT, VALVE SPRING

1D7-12116-00-00

1
Out of stock

6

SEAL, VALVE STEM

4KM-12119-00-00

1
Out of stock

7

COTTER, VALVE

4G0-12118-00-00

1
Out of stock

8

ARM, VALVE ROCKER

1D7-12151-10-00

—
Out of stock

9

ARM, VALVE ROCKER 2

1D7-12161-10-00

—
Out of stock

10

SCREW, VALVE ADJUSTING

31G-12159-02-00

1
Out of stock

11

NUT, LOCK

31G-12158-00-00

1
Out of stock

12

SHAFT, ROCKER

1D7-12146-00-00

—
Out of stock

13

ROD, VALVE PUSH

1D7-12154-01-00

1
Out of stock

14

ROD, VALVE PUSH 2

1D7-12144-00-00

—
Out of stock

15

LIFTER, VALVE

4WM-12153-10-00

1
Out of stock
