2012 Yamaha Raider S (XV19CSBP) Shift Cam Fork Diagram

← All diagrams

Find the part on the Shift Cam Fork diagram for your 2012 Yamaha Raider S (XV19CSBP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

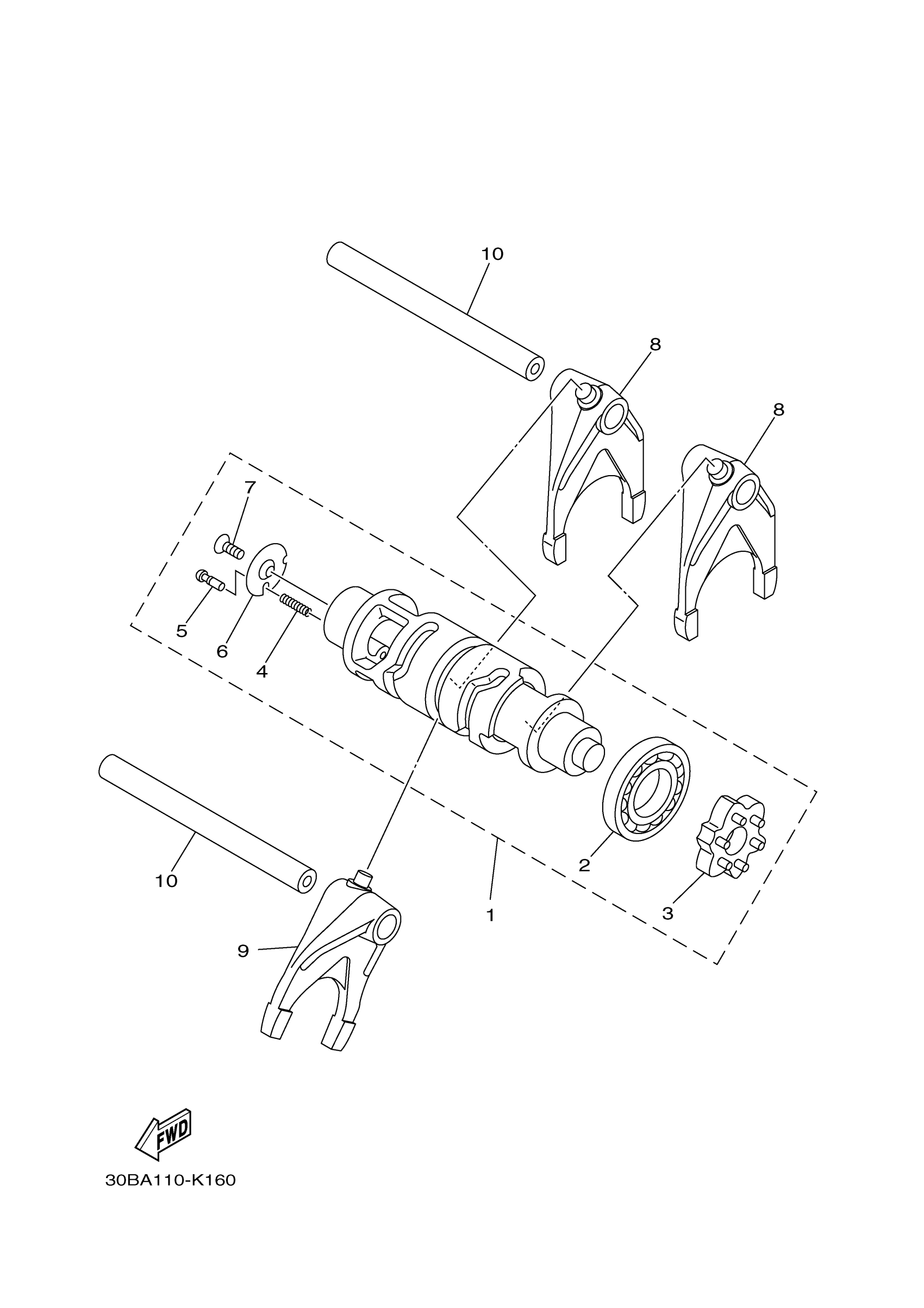

2012 Yamaha Raider S (XV19CSBP) Shift Cam Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

1D7-18540-10-00

—
Out of stock

2

BRG. (256)

93316-00501-00

1

$29.42

In stock

3

SEGMENT

4XV-18185-00-00

1
Out of stock

4

1

$6.17

In stock

5

POINT, NEUTRAL

4UN-18542-00-00

1

$8.44

In stock

6

PLATE, SIDE 2

4UN-18566-00-00

1

$17.29

In stock

7

SCREW

90149-05015-00

1

$5.26

In stock

8

FORK, SHIFT 1

1D7-18511-00-00

—
Out of stock

9

FORK, SHIFT 2

1D7-18512-00-00

—
Out of stock

10

BAR, SHIFT FORK GUIDE 1

4NK-18531-00-00

—
Out of stock
