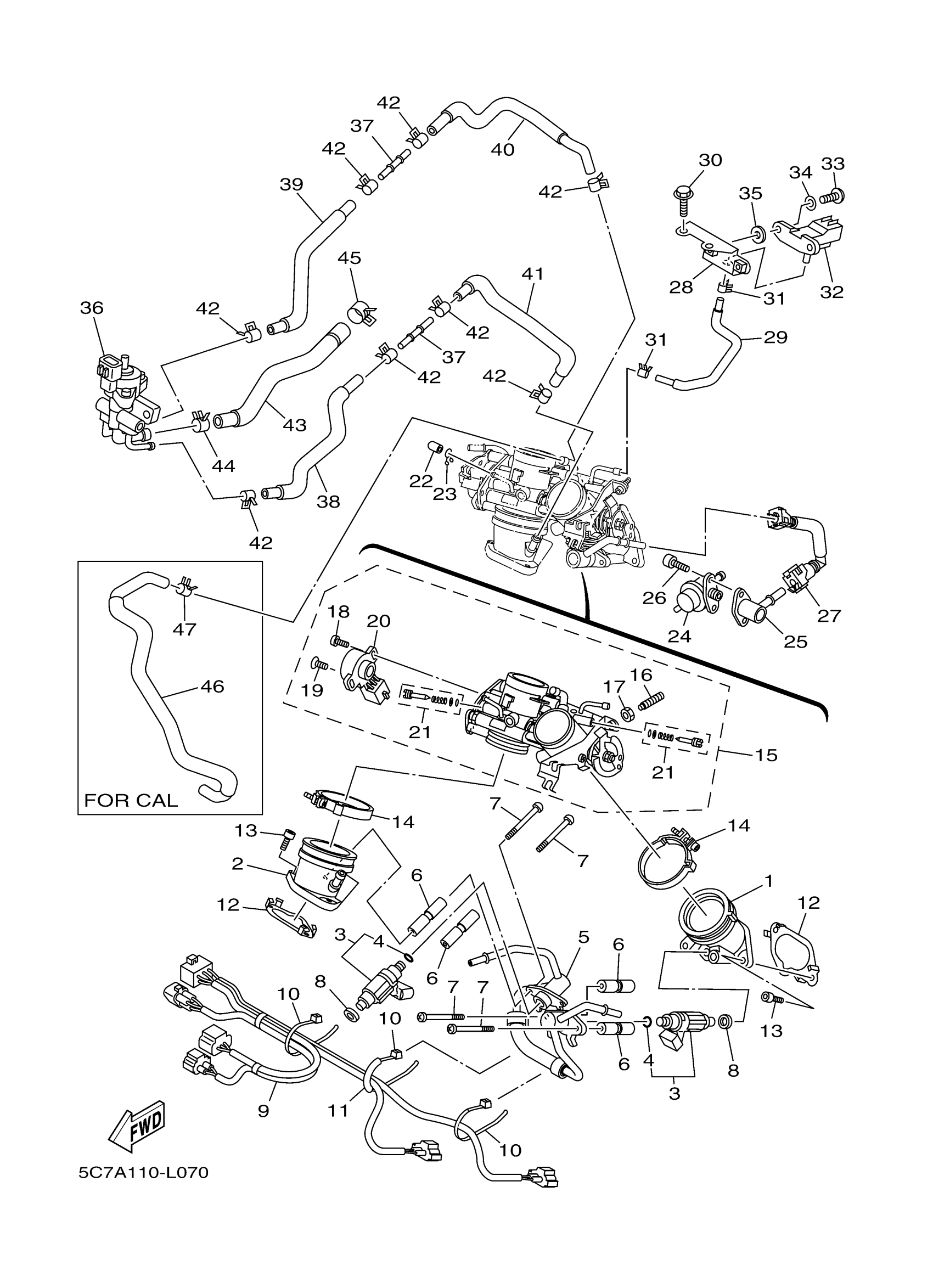

Find the part on the Intake diagram for your 2012 Yamaha Raider S (XV19CSBP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Raider S (XV19CSBP) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

1D7-13586-00-00

—
Out of stock

2

JOINT, CARBURETOR 2

1D7-13596-00-00

—
Out of stock

3

INJECTOR ASSY

5YU-13761-00-00

—
Out of stock

4

O-RING

5FL-14147-00-00

1
Out of stock

5

PIPE INLET ASSEMBLY

1D7-13930-00-00

—
Out of stock

6

COLLAR

1D7-13716-00-00

—
Out of stock

7

SCREW, PAN

98507-06050-00

1
Out of stock

8

GASKET, MANIFOLD

8FP-13556-00-00

1

$12.27

In stock

9

WIRE, SUB LEAD

1D7-82509-40-00

—
Out of stock

10

CLAMP

90464-55002-00

—

$0.99

In stock

11

HOSE

90445-08039-00

—
Out of stock

12

SEAL

1D7-14467-00-00

1
Out of stock

13

BOLT,SOCKET HEAD

91314-06020-00

1

$2.05

In stock

14

HOSE CLAMP ASSY

90450-62004-00

—

$13.79

In stock

15

THROTTLE BODY ASSY

5C7-13750-10-00

—
Out of stock

16

SCREW

3FV-14567-00-00

—
Out of stock

17

NUT, CABLE ADJUSTING

3JD-14161-00-00

—
Out of stock

18

SCREW

4KM-24453-00-00

—

$4.85

In stock

19

SCREW, FLAT

98707-04010-00

—
Out of stock

20

THROTTLE SENSOR AS

8GL-85885-01-00

—

$76.17

In stock

21

AIR SCREW SET

5JW-14104-00-00

—

$14.51

In stock

22

CAP

895-14169-00-00

—

$4.02

In stock

23

CLIP, PIPE

8A7-14139-00-00

—

$6.80

In stock

24

REGULATOR, PRESSURE

5C7-13906-00-00

—

$182.31

In stock

25

JOINT

5PX-13595-00-00

—
Out of stock

26

BOLT

91312-05025-00

—

$6.25

In stock

27

PIPE, FUEL 2

5C7-13972-00-00

—
Out of stock

28

STAY 1

1D7-14493-00-00

—
Out of stock

29

HOSE, AIR

1D7-13895-00-00

—
Out of stock

30

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

31

CLIP(42X)

90467-07093-00

—

$1.72

In stock

32

SENSOR, PRESSURE

1C7-82380-00-00

—
Out of stock

33

BOLT(6A1)

97095-05016-00

—

$1.46

In stock

34

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

35

WASHER, PLATE (35R)

90201-060H9-00

—

$3.40

In stock

36

LINEAR, CONTROL VALVE

5C7-85880-01-00

—
Out of stock

37

PIPE

5PX-14466-00-00

—
Out of stock

38

HOSE 1

5C7-13545-00-00

—
Out of stock

39

HOSE 2

5C7-13546-00-00

—
Out of stock

40

HOSE 3

5C7-13547-00-00

—
Out of stock

41

HOSE, AIR 4

5C7-13548-00-00

—
Out of stock

42

CLIP(3BM)

90467-10135-00

—

$6.91

In stock

43

PIPE, AIR

5C7-13897-00-00

—
Out of stock

44

CLIP

90467-15001-00

—

$5.72

In stock

45

CLIP(3TB)

90467-17128-00

—

$6.68

In stock

46

PIPE

5C7-14349-00-00

—
Out of stock

47

CLIP

90467-09120-00

—

$5.62

In stock
