2012 Yamaha Raider S (XV19CSBP) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2012 Yamaha Raider S (XV19CSBP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

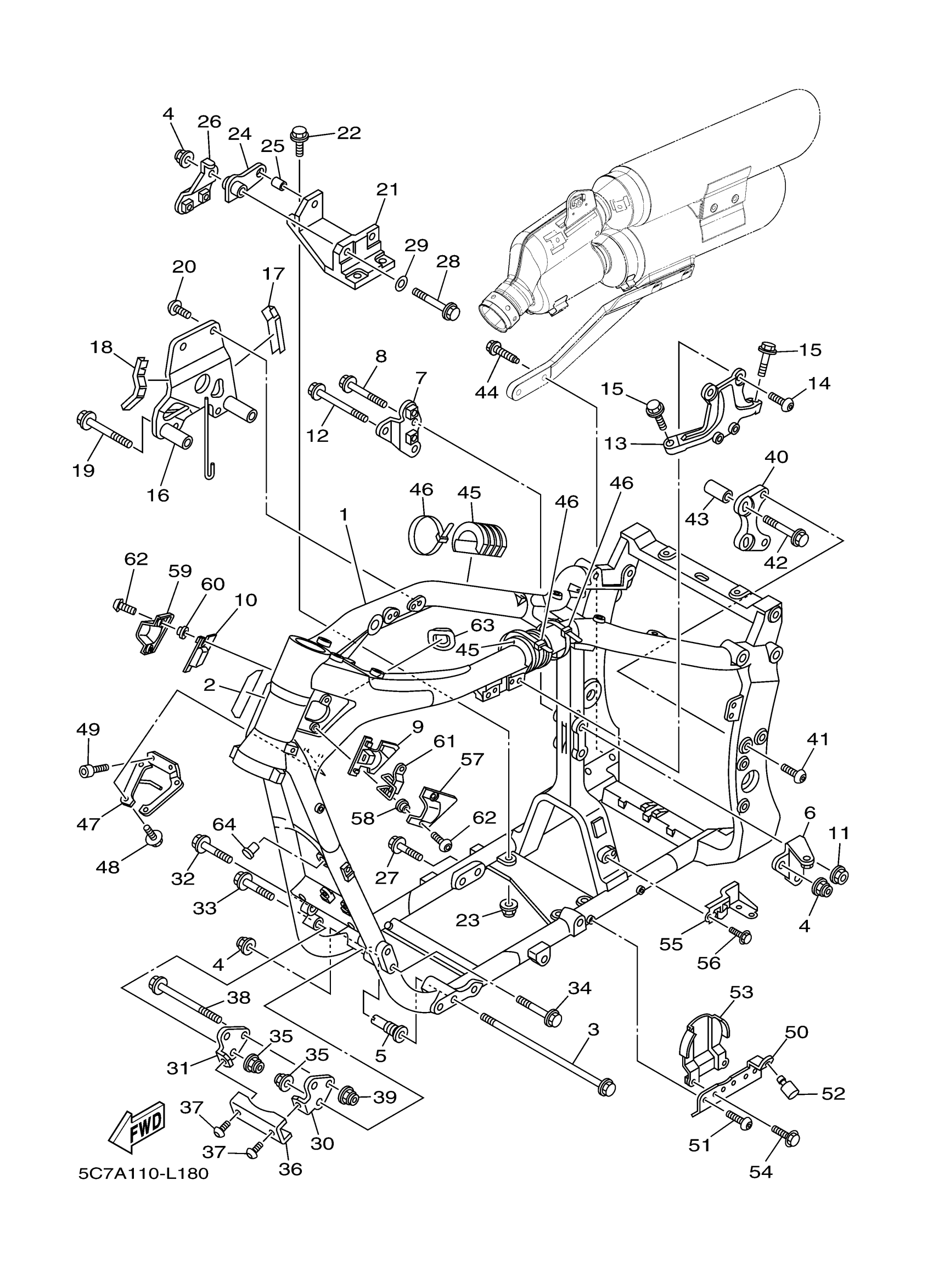

2012 Yamaha Raider S (XV19CSBP) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

5C7-21110-01-00

1
Out of stock

2

PROTECTOR, FUEL TANK

1D7-24141-00-00

—
Out of stock

3

BOLT, WASHER BASED

90105-126A6-00

—
Out of stock

4

NUT, SELF-LOCKING

95602-12200-00

1

$3.82

In stock

5

BOLT, ENGINE ADJUSTING

5PX-21495-01-00

—
Out of stock

6

STAY, ENGINE 2

1D7-21315-00-00

—
Out of stock

7

STAY, ENGINE 3

5PX-21316-00-00

—
Out of stock

8

BOLT, WASHER BASED(4HM)

90105-10737-00

1

$9.82

In stock

9

DAMPER 2

5C7-2112C-00-00

1
Out of stock

10

DAMPER 3

5C7-2112D-00-00

—
Out of stock

11

NUT, S/L FLANGE

95602-10200-00

1

$2.29

In stock

12

BOLT, WASHER BASED(36Y)

90105-12309-00

1

$9.77

In stock

13

STAY, ENGINE 3

5C7-21317-00-00

—
Out of stock

14

BOLT

90111-10003-00

1
Out of stock

15

BOLT, FLANGE

90105-12018-00

—

$9.71

In stock

16

STAY, ENGINE 6

5C7-21319-10-00

—
Out of stock

17

SEAL

1D7-21669-00-00

—
Out of stock

18

SEAL

5C7-21268-00-00

—
Out of stock

19

BOLT, FLANGE

90105-12067-00

—
Out of stock

20

BOLT,HEX. SOCKET BUTTON

90111-10030-00

—
Out of stock

21

STAY, ENGINE 5

1D7-21318-01-00

—
Out of stock

22

BOLT, FLANGE

95817-10030-00

—

$6.17

In stock

23

NUT, S/L FLANGE

95602-10200-00

1

$2.29

In stock

24

STAY 1

1D7-2142G-00-00

—
Out of stock

25

COLLAR

90387-12033-00

—

$6.51

In stock

26

STAY, ENGINE 7

1D7-21387-00-00

—
Out of stock

27

BOLT, FLANGE (8V9)

95812-10045-00

—

$3.54

In stock

28

BOLT

90101-12025-00

—
Out of stock

29

WASHER, PLATE

90201-12045-00

—

$5.14

In stock

30

STAY 2

1D7-2142H-01-00

1
Out of stock

31

STAY 3

1D7-2142J-01-00

1
Out of stock

32

BOLT, FLANGE

90105-10049-00

—
Out of stock

33

BOLT, FLANGE

90105-10060-00

—
Out of stock

34

BOLT, FLANGE

90105-10167-00

—
Out of stock

35

NUT, SELF-LOCKING

90185-10008-00

—

$5.72

In stock

36

BRACKET, MEMBER 1

1D7-2115L-00-00

—
Out of stock

37

BOLT, BUTTON

92014-08020-00

—

$6.68

In stock

38

BOLT, FLANGE

90105-12016-00

—
Out of stock

39

NUT, SELF-LOCKING

90185-12002-00

—
Out of stock

40

STAY 1

1D7-2137F-00-00

—
Out of stock

41

BOLT

90111-10009-00

—
Out of stock

42

BOLT, FLANGE

90105-10447-00

—
Out of stock

43

COLLAR

1D7-21116-01-00

—
Out of stock

44

BOLT, FLANGE

90105-10166-00

—
Out of stock

45

DAMPER, LOCATING 3

5C7-24183-00-00

—
Out of stock

46

CLAMP

90464-80002-00

—

$5.14

In stock

47

STAY 1

5C7-2116A-00-00

—
Out of stock

48

BOLT, FLANGE(4DU)

95027-06014-00

—

$0.74

In stock

49

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

50

BRACKET, HORN

5C7-21343-00-00

—
Out of stock

51

BOLT

90111-08002-00

—
Out of stock

52

STOPPER, MAIN STAND

1D7-27114-00-00

—
Out of stock

53

COVER, HORN

5C7-2317L-00-00

—
Out of stock

54

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock

55

BRACKET, SWITCH

5C7-21453-00-00

—
Out of stock

56

BOLT, FLANGE

95022-06016-00

—

$3.32

In stock

57

COVER, SIDE 5

5C7-2171E-00-00

—
Out of stock

58

COLLAR

90387-06210-00

—

$6.14

In stock

59

COVER, SIDE 6

5C7-2171X-00-00

—
Out of stock

60

COLLAR

90387-06192-00

—
Out of stock

61

GUIDE

5C7-2171H-00-00

—
Out of stock

62

BOLT, BUTTON HEAD

92017-06016-00

—
Out of stock

63

GROMMET

5C7-21773-00-00

—
Out of stock

64

PLUG(55K)

90338-16148-00

—

$9.89

In stock
