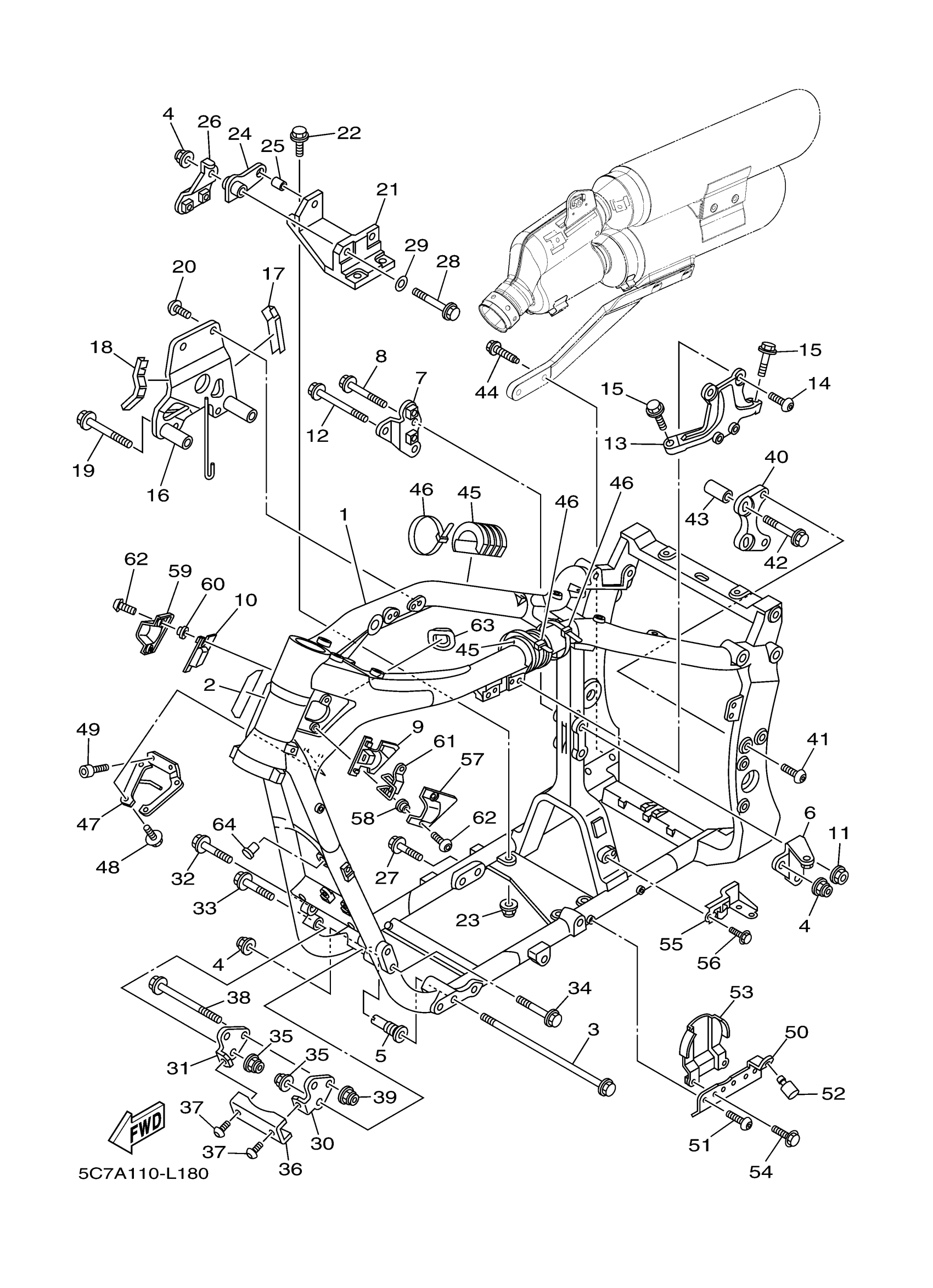

2012 Yamaha Raider S CA (XV19CSBCB) Frame Diagram
Find the part on the Frame diagram for your 2012 Yamaha Raider S CA (XV19CSBCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME COMP.
5C7-21110-01-00
2
PROTECTOR, FUEL TANK
1D7-24141-00-00
3
BOLT, WASHER BASED
90105-126A6-00
5
BOLT, ENGINE ADJUSTING
5PX-21495-01-00
6
STAY, ENGINE 2
1D7-21315-00-00
7
STAY, ENGINE 3
5PX-21316-00-00
9
DAMPER 2
5C7-2112C-00-00
10
DAMPER 3
5C7-2112D-00-00
13
STAY, ENGINE 3
5C7-21317-00-00
14
BOLT
90111-10003-00
16
STAY, ENGINE 6
5C7-21319-10-00
17
SEAL
1D7-21669-00-00
18
SEAL
5C7-21268-00-00
19
BOLT, FLANGE
90105-12067-00
20
BOLT,HEX. SOCKET BUTTON
90111-10030-00
21
STAY, ENGINE 5
1D7-21318-01-00
24
STAY 1
1D7-2142G-00-00
26
STAY, ENGINE 7
1D7-21387-00-00
28
BOLT
90101-12025-00
30
STAY 2
1D7-2142H-01-00
31
STAY 3
1D7-2142J-01-00
32
BOLT, FLANGE
90105-10049-00
33
BOLT, FLANGE
90105-10060-00
34
BOLT, FLANGE
90105-10167-00
36
BRACKET, MEMBER 1
1D7-2115L-00-00
38
BOLT, FLANGE
90105-12016-00
39
NUT, SELF-LOCKING
90185-12002-00
40
STAY 1
1D7-2137F-00-00
41
BOLT
90111-10009-00
42
BOLT, FLANGE
90105-10447-00
43
COLLAR
1D7-21116-01-00
44
BOLT, FLANGE
90105-10166-00
45
DAMPER, LOCATING 3
5C7-24183-00-00
47
STAY 1
5C7-2116A-00-00
50
BRACKET, HORN
5C7-21343-00-00
51
BOLT
90111-08002-00
52
STOPPER, MAIN STAND
1D7-27114-00-00
53
COVER, HORN
5C7-2317L-00-00
55
BRACKET, SWITCH
5C7-21453-00-00
57
COVER, SIDE 5
5C7-2171E-00-00
59
COVER, SIDE 6
5C7-2171X-00-00
60
COLLAR
90387-06192-00
61
GUIDE
5C7-2171H-00-00
62
BOLT, BUTTON HEAD
92017-06016-00
63
GROMMET
5C7-21773-00-00
