2017 Yamaha Raider CA (XV19CHCB) Meter Diagram

← All diagrams

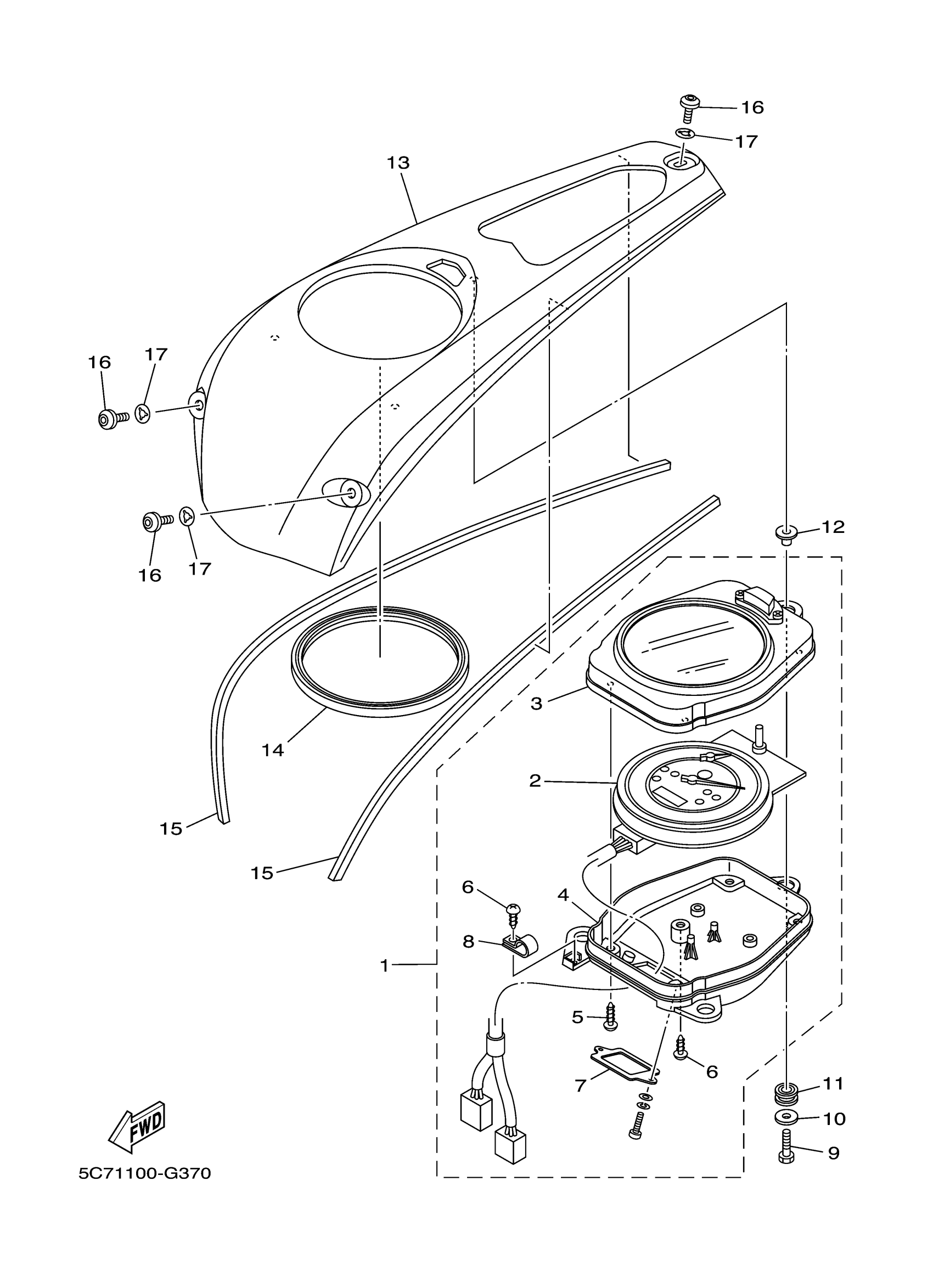

Find the part on the Meter diagram for your 2017 Yamaha Raider CA (XV19CHCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Raider CA (XV19CHCB) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER ASSY

5C7-83500-02-00

1
Out of stock

2

SPEEDOMETER ASSY

5C7-83510-02-00

1
Out of stock

3

CASE, METER UPPER

5C7-8353E-00-00

—
Out of stock

4

CASE, METER LOWER

4WM-8353F-02-00

—
Out of stock

5

SCREW, TRUSS TAP.

97707-40016-00

1

$6.18

In stock

6

SCREW, TAPPING(71E)

90164-04023-00

—
Out of stock

7

BRACKET, METER

4WM-83519-00-00

1
Out of stock

8

CLAMP

5EL-8357E-00-00

1
Out of stock

9

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

10

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

11

DAMPER

4WM-83513-00-00

1

$6.52

In stock

12

COLLAR(82M)

90387-050T5-00

1
Out of stock

13

COVER, METER

5C7-83559-20-00

1
Out of stock

14

MOLE 3

5C7-28347-00-00

—
Out of stock

15

MOLE 1

5C7-28345-00-00

1
Out of stock

16

SCREW(1XL)

90149-06264-00

—
Out of stock

17

PLATE

4U5-2176E-00-00

—
Out of stock
