2017 Yamaha Raider CA (XV19CHCB) Frame Diagram

← All diagrams

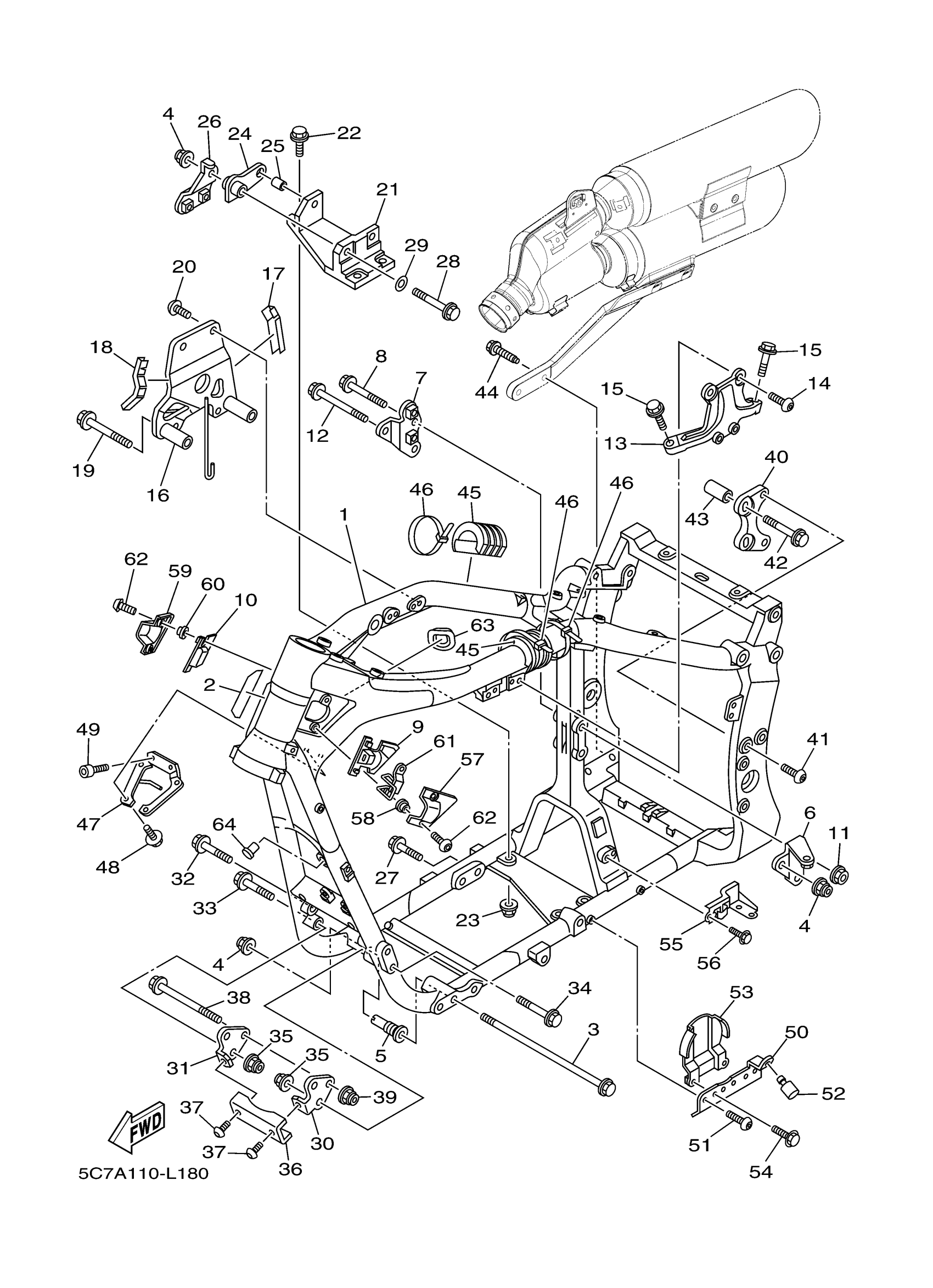

Find the part on the Frame diagram for your 2017 Yamaha Raider CA (XV19CHCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Raider CA (XV19CHCB) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

5C7-21110-01-00

1
Out of stock

2

PROTECTOR, FUEL TANK

1D7-24141-00-00

—
Out of stock

3

BOLT, WASHER BASED

90105-126A6-00

—
Out of stock

4

NUT, SELF-LOCKING

95602-12200-00

1

$3.82

In stock

5

BOLT, ENGINE ADJUSTING

5PX-21495-01-00

—
Out of stock

6

STAY, ENGINE 2

1D7-21315-00-00

—
Out of stock

7

STAY, ENGINE 3

5PX-21316-00-00

—
Out of stock

8

BOLT, WASHER BASED(4HM)

90105-10737-00

1

$9.82

In stock

9

DAMPER 2

5C7-2112C-00-00

1
Out of stock

10

DAMPER 3

5C7-2112D-00-00

—
Out of stock

11

NUT, S/L FLANGE

95602-10200-00

1

$2.29

In stock

12

BOLT, WASHER BASED(36Y)

90105-12309-00

1

$9.77

In stock

13

STAY, ENGINE 3

5C7-21317-00-00

—
Out of stock

14

BOLT

90111-10003-00

1
Out of stock

15

BOLT, FLANGE

90105-12018-00

—

$9.71

In stock

16

STAY, ENGINE 6

5C7-21319-10-00

—
Out of stock

17

SEAL

1D7-21669-00-00

—
Out of stock

18

SEAL

5C7-21268-00-00

—
Out of stock

19

BOLT, FLANGE

90105-12067-00

—
Out of stock

20

BOLT,HEX. SOCKET BUTTON

90111-10030-00

—
Out of stock

21

STAY, ENGINE 5

1D7-21318-01-00

—
Out of stock

22

BOLT, FLANGE

95817-10030-00

—

$6.17

In stock

23

NUT, S/L FLANGE

95602-10200-00

1

$2.29

In stock

24

STAY 1

1D7-2142G-00-00

—
Out of stock

25

COLLAR

90387-12033-00

—

$6.51

In stock

26

STAY, ENGINE 7

1D7-21387-00-00

—
Out of stock

27

BOLT, FLANGE (8V9)

95812-10045-00

—

$3.54

In stock

28

BOLT

90101-12025-00

—
Out of stock

29

WASHER, PLATE

90201-12045-00

—

$5.14

In stock

30

STAY 2

1D7-2142H-01-00

1
Out of stock

31

STAY 3

1D7-2142J-01-00

1
Out of stock

32

BOLT, FLANGE

90105-10049-00

—
Out of stock

33

BOLT, FLANGE

90105-10060-00

—
Out of stock

34

BOLT, FLANGE

90105-10167-00

—
Out of stock

35

NUT, SELF-LOCKING

90185-10008-00

—

$5.72

In stock

36

BRACKET, MEMBER 1

1D7-2115L-00-00

—
Out of stock

37

BOLT, BUTTON

92014-08020-00

—

$6.68

In stock

38

BOLT, FLANGE

90105-12016-00

—
Out of stock

39

NUT, SELF-LOCKING

90185-12002-00

—
Out of stock

40

STAY 1

1D7-2137F-00-00

—
Out of stock

41

BOLT

90111-10009-00

—
Out of stock

42

BOLT, FLANGE

90105-10447-00

—
Out of stock

43

COLLAR

1D7-21116-01-00

—
Out of stock

44

BOLT, FLANGE

90105-10166-00

—
Out of stock

45

DAMPER, LOCATING 3

5C7-24183-00-00

—
Out of stock

46

CLAMP

90464-80002-00

—

$5.14

In stock

47

STAY 1

5C7-2116A-00-00

—
Out of stock

48

BOLT, FLANGE(4DU)

95027-06014-00

—

$0.74

In stock

49

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

50

BRACKET, HORN

5C7-21343-00-00

—
Out of stock

51

BOLT

90111-08002-00

—
Out of stock

52

STOPPER, MAIN STAND

1D7-27114-00-00

—
Out of stock

53

COVER, HORN

5C7-2317L-00-00

—
Out of stock

54

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock

55

BRACKET, SWITCH

5C7-21453-00-00

—
Out of stock

56

BOLT, FLANGE

95022-06016-00

—

$3.32

In stock

57

COVER, SIDE 5

5C7-2171E-00-00

—
Out of stock

58

COLLAR

90387-06210-00

—

$6.14

In stock

59

COVER, SIDE 6

5C7-2171X-00-00

—
Out of stock

60

COLLAR

90387-06192-00

—
Out of stock

61

GUIDE

5C7-2171H-00-00

—
Out of stock

62

BOLT, BUTTON HEAD

92017-06016-00

—
Out of stock

63

GROMMET

5C7-21773-00-00

—
Out of stock

64

PLUG(55K)

90338-16148-00

—

$9.89

In stock
