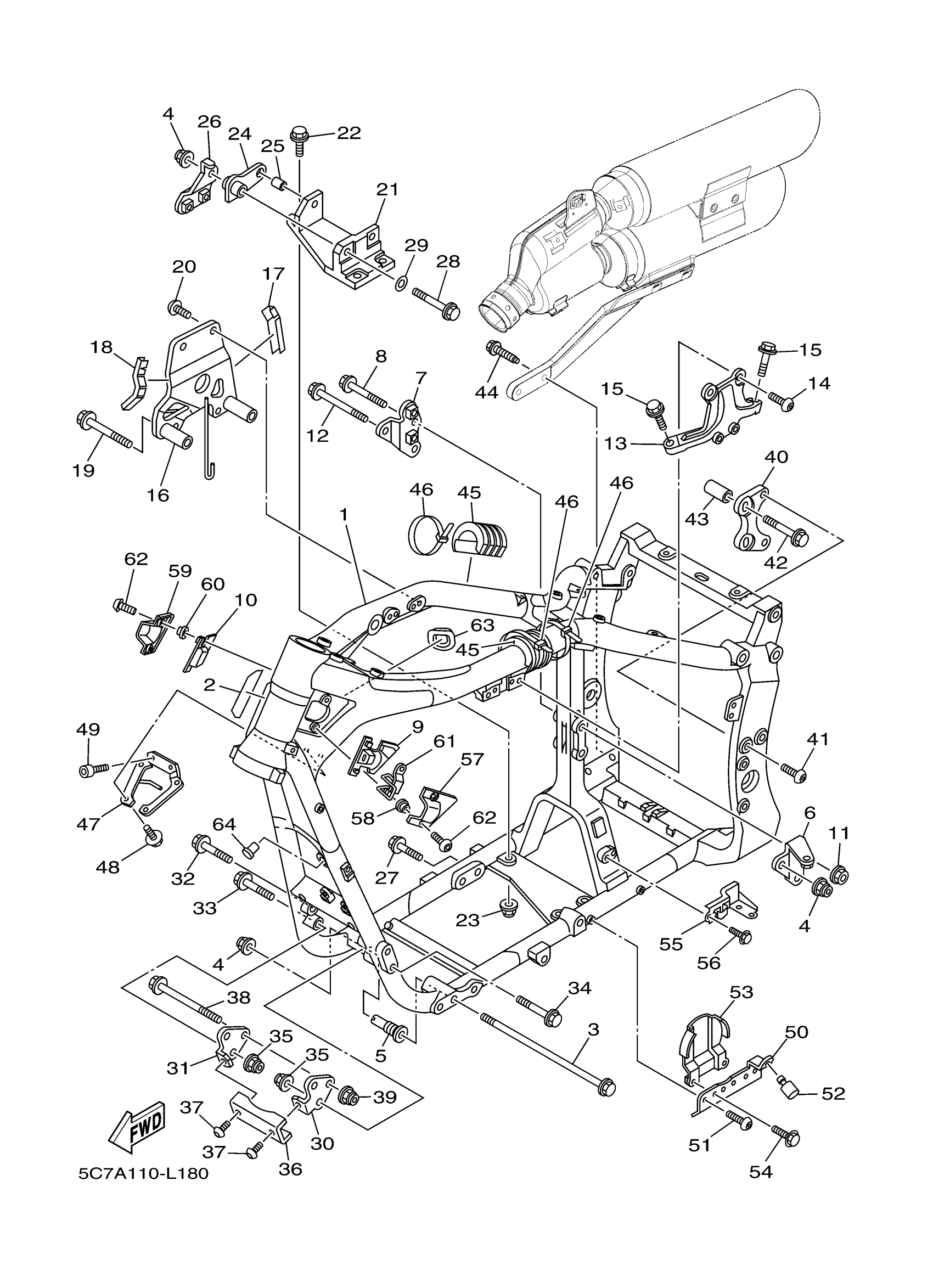

2013 Yamaha Raider CA (XV19CDCB) Frame Diagram
Find the part on the Frame diagram for your 2013 Yamaha Raider CA (XV19CDCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME COMP.
5C7-21110-01-00
2
PROTECTOR, FUEL TANK
1D7-24141-00-00
3
BOLT, WASHER BASED
90105-126A6-00
5
BOLT, ENGINE ADJUSTING
5PX-21495-01-00
6
STAY, ENGINE 2
1D7-21315-00-00
7
STAY, ENGINE 3
5PX-21316-00-00
9
DAMPER 2
5C7-2112C-00-00
10
DAMPER 3
5C7-2112D-00-00
13
STAY, ENGINE 3
5C7-21317-00-00
14
BOLT
90111-10003-00
16
STAY, ENGINE 6
5C7-21319-10-00
17
SEAL
1D7-21669-00-00
18
SEAL
5C7-21268-00-00
19
BOLT, FLANGE
90105-12067-00
20
BOLT,HEX. SOCKET BUTTON
90111-10030-00
21
STAY, ENGINE 5
1D7-21318-01-00
24
STAY 1
1D7-2142G-00-00
26
STAY, ENGINE 7
1D7-21387-00-00
28
BOLT
90101-12025-00
30
STAY 2
1D7-2142H-01-00
31
STAY 3
1D7-2142J-01-00
32
BOLT, FLANGE
90105-10049-00
33
BOLT, FLANGE
90105-10060-00
34
BOLT, FLANGE
90105-10167-00
36
BRACKET, MEMBER 1
1D7-2115L-00-00
38
BOLT, FLANGE
90105-12016-00
39
NUT, SELF-LOCKING
90185-12002-00
40
STAY 1
1D7-2137F-00-00
41
BOLT
90111-10009-00
42
BOLT, FLANGE
90105-10447-00
43
COLLAR
1D7-21116-01-00
44
BOLT, FLANGE
90105-10166-00
45
DAMPER, LOCATING 3
5C7-24183-00-00
47
STAY 1
5C7-2116A-00-00
50
BRACKET, HORN
5C7-21343-00-00
51
BOLT
90111-08002-00
52
STOPPER, MAIN STAND
1D7-27114-00-00
53
COVER, HORN
5C7-2317L-00-00
55
BRACKET, SWITCH
5C7-21453-00-00
57
COVER, SIDE 5
5C7-2171E-00-00
59
COVER, SIDE 6
5C7-2171X-00-00
60
COLLAR
90387-06192-00
61
GUIDE
5C7-2171H-00-00
62
BOLT, BUTTON HEAD
92017-06016-00
63
GROMMET
5C7-21773-00-00
