2013 Yamaha Raider CA (XV19CDCB) Electrical 2 Diagram

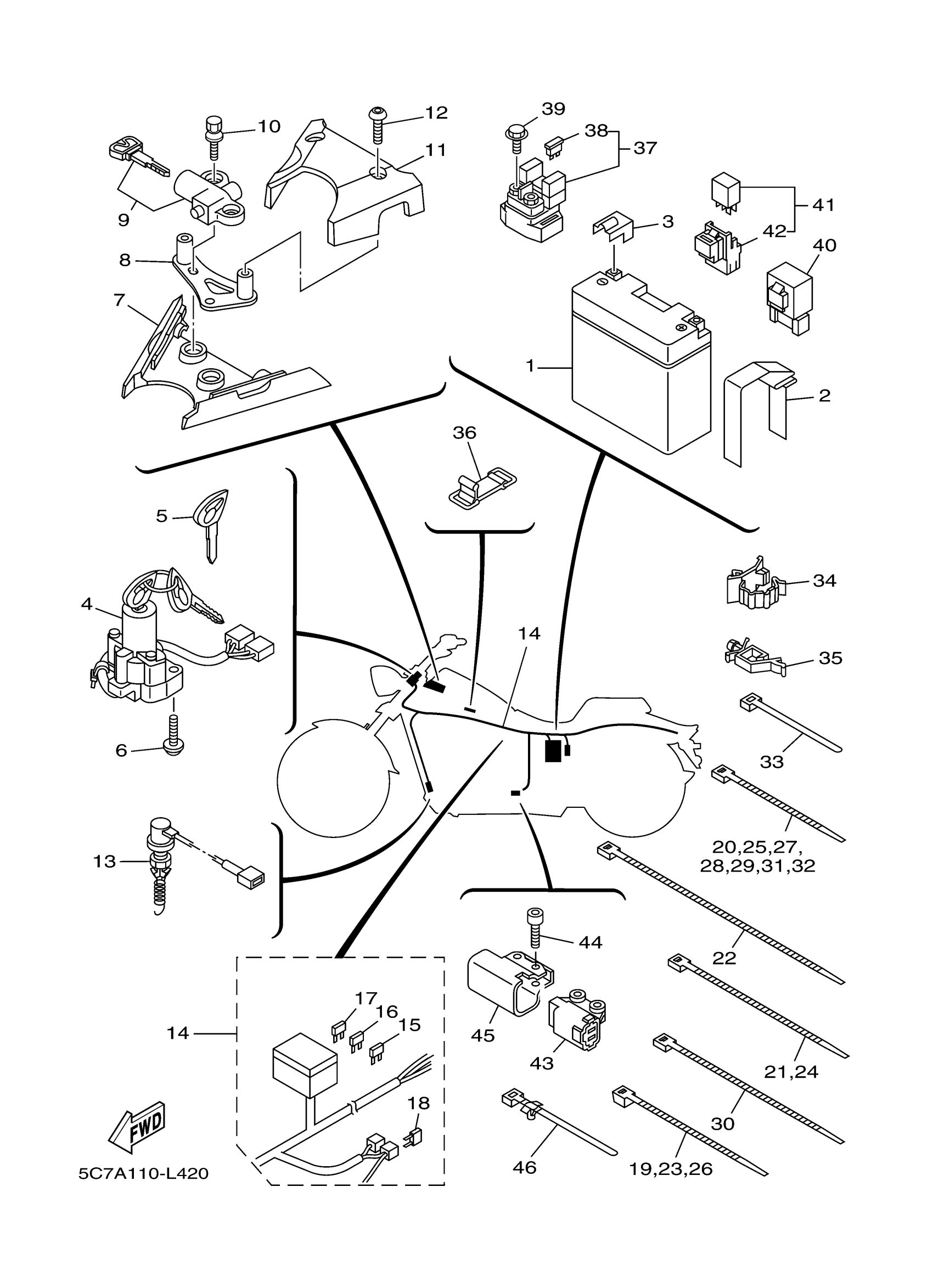

Find the part on the Electrical 2 diagram for your 2013 Yamaha Raider CA (XV19CDCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
3
COVER, LEAD WIRE
1D7-82119-00-00
4
MAIN SWITCH ASSY
5C7-82510-10-00
5
BLANK KEY
5PX-82511-09-00
7
COVER
5C7-8252U-00-00
8
BRACKET
5C7-21158-00-00
9
STEERING LOCK ASSY
5C7-W2348-00-00
11
COVER, LOCK
5C7-2848Y-00-00
13
STOP SWITCH ASSY
5C7-82530-02-00
14
WIRE HARNESS ASSY
30B-82590-01-00
19
CLAMP
90464-55001-00
20
BAND
1UA-82591-00-00
22
CLAMP
90464-50003-00
23
CLAMP
90464-55001-00
25
BAND
1UA-82591-00-00
26
CLAMP
90464-55001-00
27
BAND
1UA-82591-00-00
28
BAND
1UA-82591-00-00
29
BAND
1UA-82591-00-00
31
BAND
1UA-82591-00-00
32
BAND
1UA-82591-00-00
34
CLAMP
90464-20002-00
36
BAND, BATTERY
1KH-82131-00-00
40
RELAY ASSY
5VK-81950-33-00
44
BOLT
91312-04025-00
45
PLATE
5C7-82388-00-00
46
CLAMP
90464-34002-00
