2012 Yamaha Raider (XV19CBS) Front Fork Diagram

← All diagrams

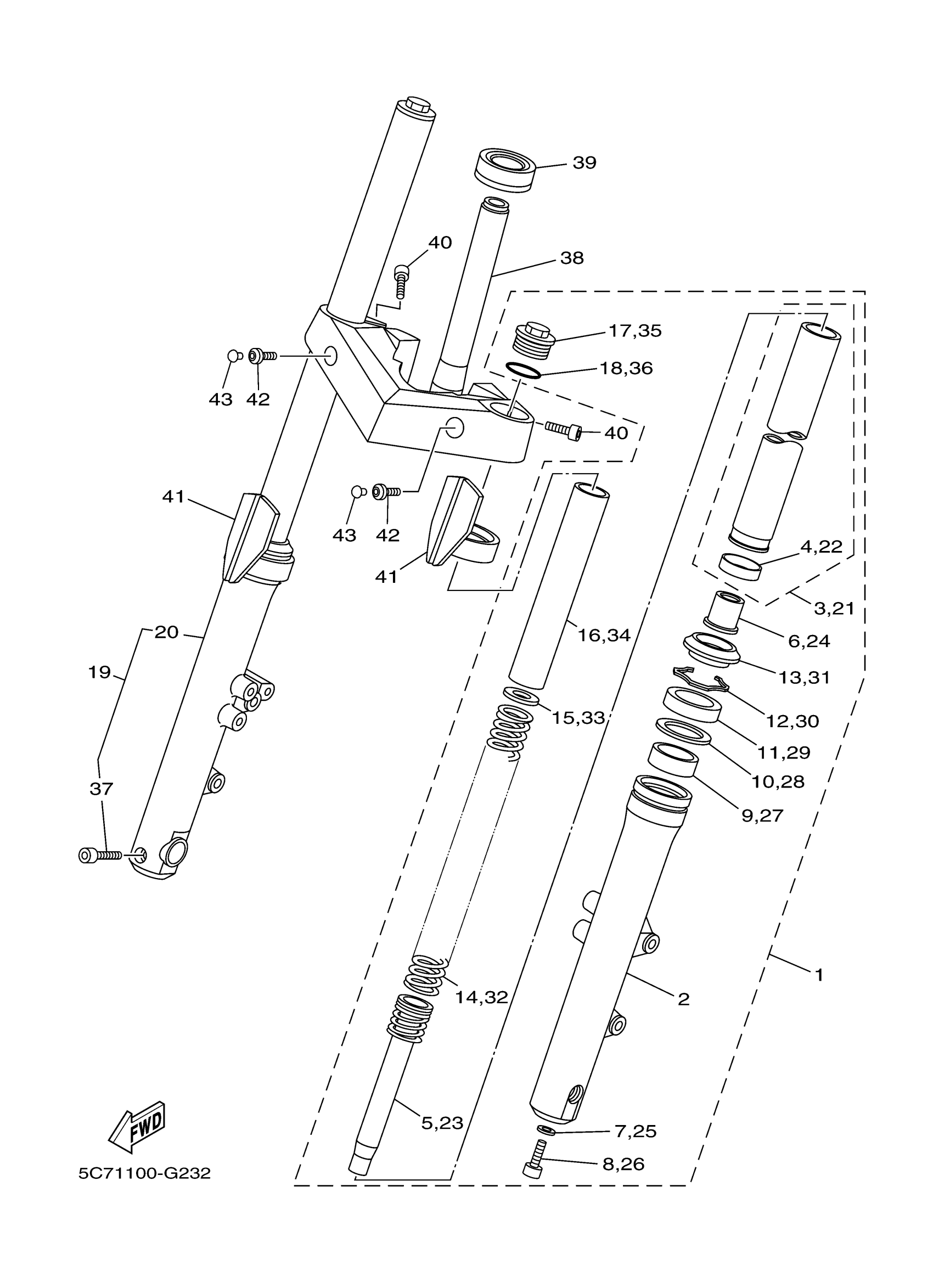

Find the part on the Front Fork diagram for your 2012 Yamaha Raider (XV19CBS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Raider (XV19CBS) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

5C7-23102-11-00

—
Out of stock

2

TUBE, OUTER (LEFT)

5C7-23126-11-00

—
Out of stock

3

INNER TUBE COMP.1

5C7-23110-00-00

1
Out of stock

4

METAL, SLIDE

5C7-23171-00-00

1
Out of stock

5

CYLINDER COMP., FRONT FORK

5C7-23170-00-00

—
Out of stock

6

SPINDLE, TAPER

1D7-23173-00-00

—
Out of stock

7

GASKET

2K8-23158-L0-00

1
Out of stock

8

BOLT

3R4-23181-L0-00

—
Out of stock

9

METAL, SLIDE 1

5TJ-23125-50-00

1

$30.34

In stock

10

WASHER, OIL SEAL

4SS-23146-L0-00

1

$6.72

In stock

11

OIL SEAL

1D7-23145-00-00

1

$20.80

In stock

12

RING, SNAP

4SS-23153-L0-00

1

$6.11

In stock

13

SEAL, DUST

1D7-23144-00-00

1

$28.54

In stock

14

SPRING, FRONT FORK

5C7-23141-00-00

1
Out of stock

15

WASHER, SPRING UPPER

1D7-23149-00-00

1
Out of stock

16

SPACER

1D7-23118-00-00

—
Out of stock

17

BOLT, CAP

1D7-23111-00-00

—
Out of stock

18

O-RING

1D7-23188-00-00

—

$13.80

In stock

19

FRONT FORK ASSY (R.H)

5C7-23103-11-00

—
Out of stock

20

TUBE, OUTER (RIGHT)

5C7-23136-11-00

—
Out of stock

21

INNER TUBE COMP.1

5C7-23110-00-00

1
Out of stock

22

METAL, SLIDE

5C7-23171-00-00

1
Out of stock

23

CYLINDER COMP., FRONT FORK

5C7-23170-00-00

—
Out of stock

24

SPINDLE, TAPER

1D7-23173-00-00

—
Out of stock

25

GASKET

2K8-23158-L0-00

1
Out of stock

26

BOLT

3R4-23181-L0-00

—
Out of stock

27

METAL, SLIDE 1

5TJ-23125-50-00

1

$30.34

In stock

28

WASHER, OIL SEAL

4SS-23146-L0-00

1

$6.72

In stock

29

OIL SEAL

1D7-23145-00-00

1

$20.80

In stock

30

RING, SNAP

4SS-23153-L0-00

1

$6.11

In stock

31

SEAL, DUST

1D7-23144-00-00

1

$28.54

In stock

32

SPRING, FRONT FORK

5C7-23141-00-00

1
Out of stock

33

WASHER, SPRING UPPER

1D7-23149-00-00

1
Out of stock

34

SPACER

1D7-23118-00-00

—
Out of stock

35

BOLT, CAP

1D7-23111-00-00

—
Out of stock

36

O-RING

1D7-23188-00-00

—

$13.80

In stock

37

BOLT,SOCKET

91314-08040-00

—
Out of stock

38

UNDER BRACKET COMP.

5C7-23340-10-00

—
Out of stock

39

BEARING

93332-00096-00

—
Out of stock

40

BOLT,SOCKET

91314-08025-00

—

$6.17

In stock

41

COVER

5C7-2331G-00-00

—
Out of stock

42

BOLT

90111-08010-00

—

$5.14

In stock

43

PLUG(42X)

90338-08163-00

—
Out of stock

44

FORK SEAL KIT (TWO FORKS)

1D7-W003B-00-00

—

$48.30

In stock
