Electrical 2
2011 Yamaha Raider (XV19CAO) Electrical 2 Diagram

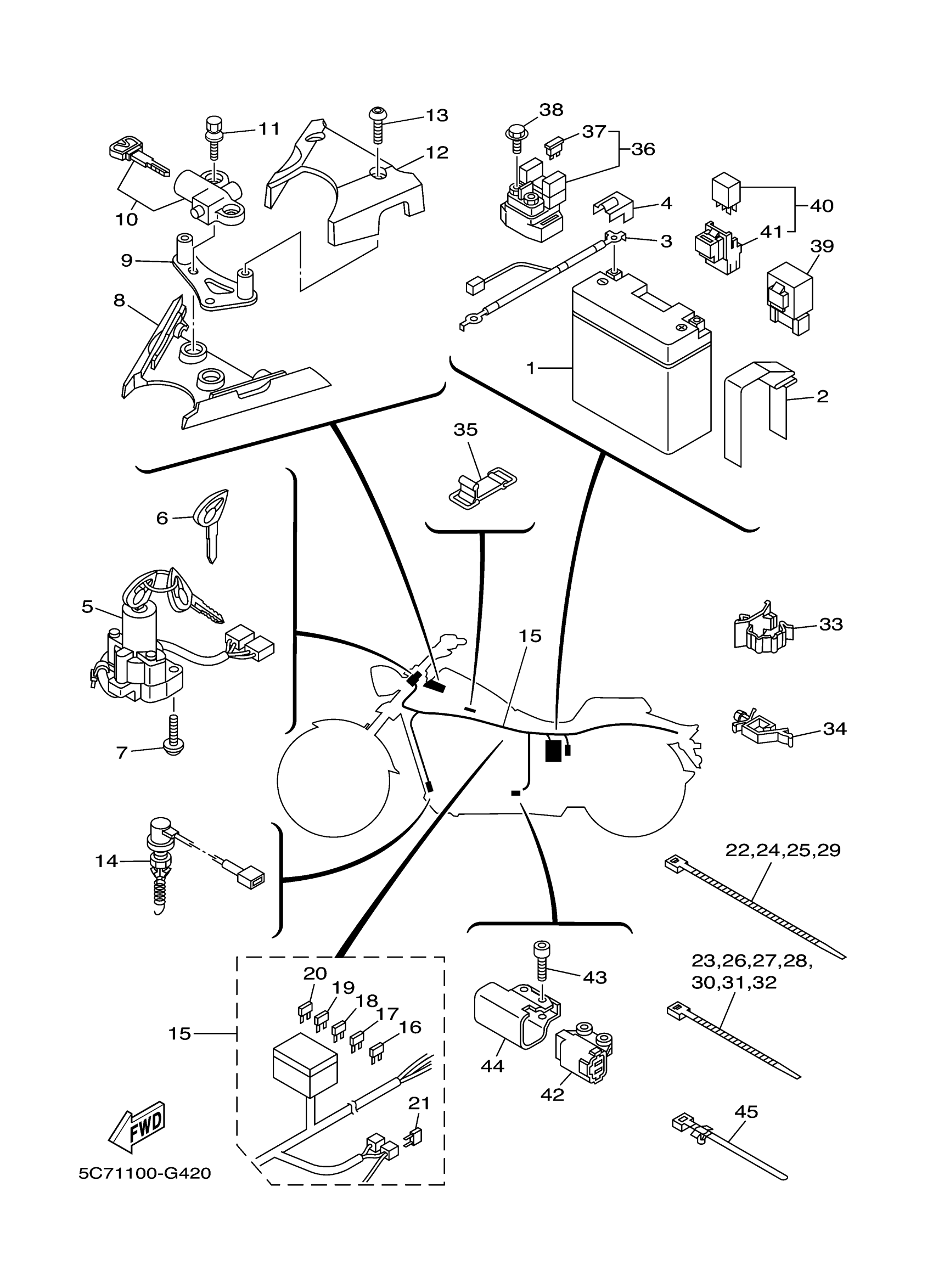

Find the part on the Electrical 2 diagram for your 2011 Yamaha Raider (XV19CAO), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
3
WIRE, MINUS LEAD
1D7-82116-00-00
4
COVER, LEAD WIRE
1D7-82119-00-00
5
MAIN SWITCH ASSY
5C7-82510-10-00
6
BLANK KEY
5PX-82511-09-00
8
COVER
5C7-8252U-00-00
9
BRACKET
5C7-21158-00-00
10
STEERING LOCK ASSY
5C7-W2348-00-00
12
COVER, LOCK
5C7-2848Y-00-00
13
BOLT, BUTTON HEAD(3JP)
92014-06012-00
14
STOP SWITCH ASSY
5C7-82530-02-00
15
WIRE HARNESS ASSY
5C7-82590-01-00
23
BAND
1UA-82591-00-00
26
BAND
1UA-82591-00-00
27
BAND
1UA-82591-00-00
28
BAND
1UA-82591-00-00
30
BAND
1UA-82591-00-00
31
BAND
1UA-82591-00-00
32
BAND
1UA-82591-00-00
33
CLAMP
90464-20002-00
35
BAND, BATTERY
1KH-82131-00-00
39
RELAY ASSY
5VK-81950-33-00
43
BOLT
91312-04025-00
44
PLATE
5C7-82388-00-00
45
CLAMP
90464-34002-00
