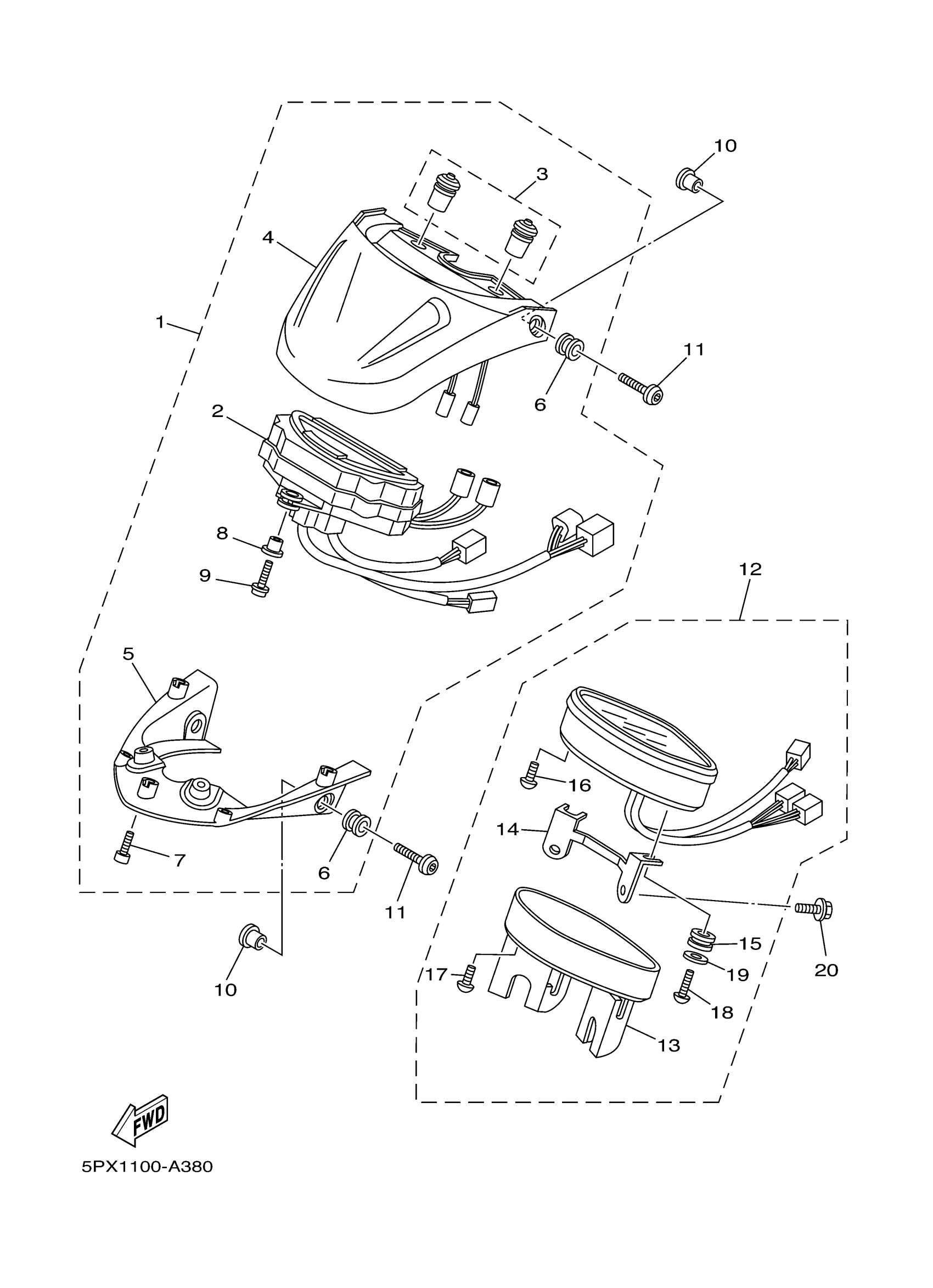

Yamaha XV17PCPC (ROAD STAR WARRIOR CA) 5PX2 2002 METER Diagram

#

Description
Price

1

TACHOMETER ASSY

5PX-83500-00-00

Unavailable

2

. LCD ASSY

5PX-8358G-00-00

Unavailable

3

. SWITCH, METER CONTROL

5PX-8358J-00-00

Unavailable

4

. COVER, METER 1 ASSY

5PX-8357B-00-00

Unavailable

5

COVER, METER 2

5PX-83579-00-00

$271.97

6

GROMMET

90480-12007-00

$5.81

7

BOLT,SOCKET

91380-04010-00

$5.53

8

. COLLAR

5PX-83522-00-00

Unavailable

9

. SCREW, PAN HEAD WITH WASHER

97602-03112-00

Unavailable

10

SPACER (4F2)

90560-06201-00

$11.38

11

SCREW(4DN)

90149-06302-00

Unavailable

12

SPEEDOMETER ASSY

5XP-83570-00-00

Unavailable

13

. CASE COMP, UNDER

5PX-83507-00-00

Unavailable

14

BRACKET, METER

5PX-83519-00-00

$21.70

15

DAMPER

4XV-83513-00-00

$5.98

16

SCREW, TAPPING

97707-30014-00

Unavailable

17

. SCREW, TAPPING

90167-03058-00

Unavailable

18

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

19

WASHER PLATE 829771780000

90201-05033-00

Unavailable

20

BOLT,SOCKET

91314-08012-00

Unavailable
