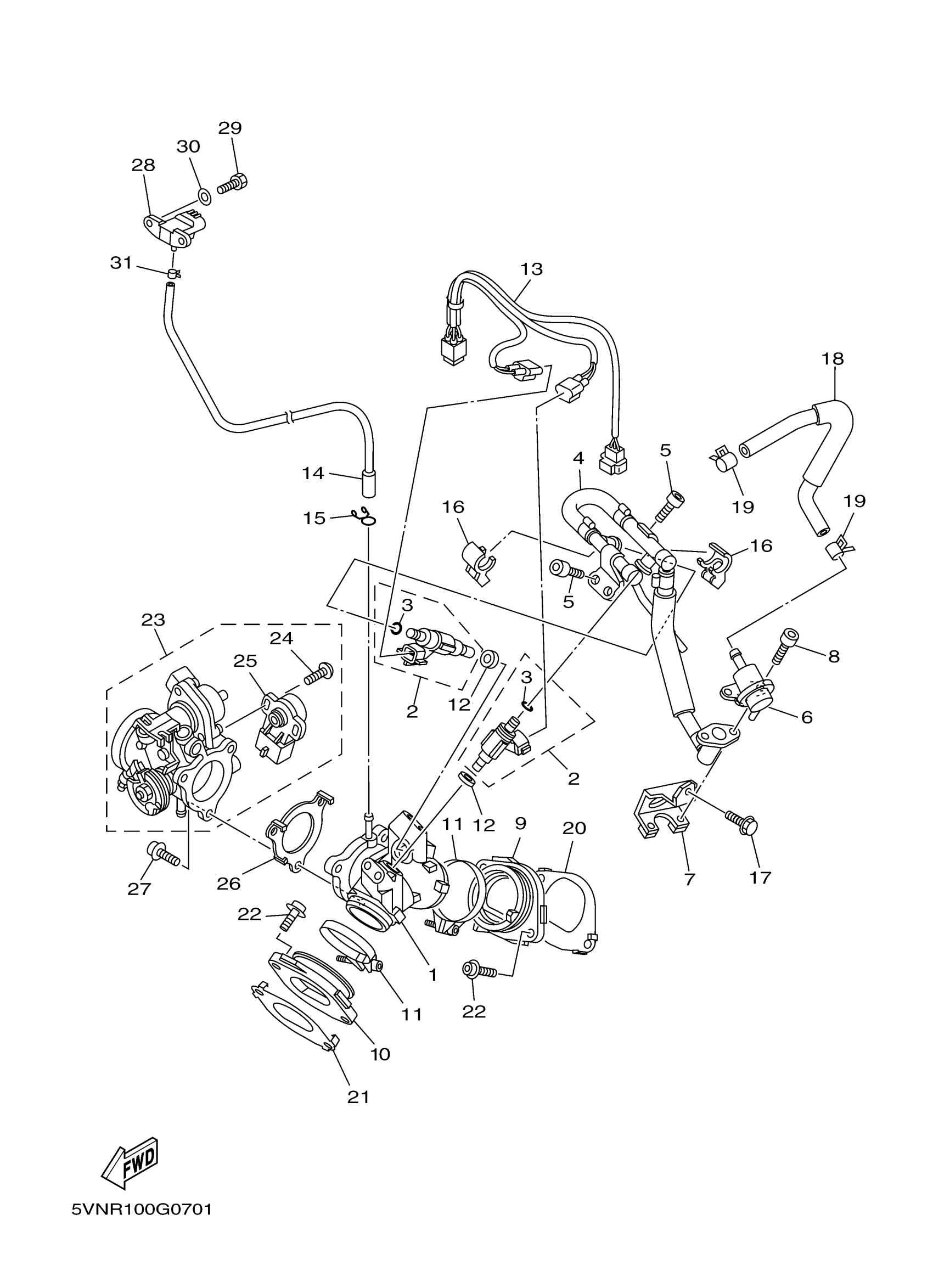

Find the part on the Intake diagram for your 2012 Yamaha Road Star S CA (XV17ASBCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Road Star S CA (XV17ASBCB) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD

5VN-13640-00-00

1
Out of stock

2

INJECTOR

5VN-13761-00-00

1
Out of stock

3

O-RING

5FL-14147-00-00

1
Out of stock

4

PIPE INLET ASSEMBLY

5VN-13930-00-00

—
Out of stock

5

BOLT (33M)

91312-06014-00

1
Out of stock

6

REGULATOR, PRESSURE

5UX-13906-00-00

1
Out of stock

7

BRACKET 1

5VN-14291-00-00

—
Out of stock

8

BOLT, SOCKET

91317-05016-00

1
Out of stock

9

JOINT, CARBURETOR 2

5VN-13596-01-00

1
Out of stock

10

JOINT, CARBURETOR 3

5VN-13597-01-00

—
Out of stock

11

HOSE CLAMP ASSY

90450-62006-00

1
Out of stock

12

GASKET, MANIFOLD

8FP-13556-00-00

1
Out of stock

13

WIRE, SUB LEAD

5VN-81517-10-00

—
Out of stock

14

HOSE, AIR

5VN-13895-00-00

—
Out of stock

15

CLIP (16G)

90467-08021-00

1
Out of stock

16

HOLDER

3D8-14261-00-00

—
Out of stock

17

BOLT, FLANGE(4MY)

95027-06010-00

—
Out of stock

18

PIPE, FUEL 3

5VN-13973-00-00

—
Out of stock

19

CLIP(3YX)

90467-13133-00

—
Out of stock

20

SEAL

5VN-14457-00-00

—
Out of stock

21

SEAL

5VN-14462-00-00

—
Out of stock

22

BOLT, HEXAGON SOCKET HEAD

90110-06048-00

—
Out of stock

23

THROTTLE BODY ASSY

5VN-13750-00-00

—
Out of stock

24

SCREW

8CC-14216-10-00

—
Out of stock

25

THROTTLE SENSOR AS

3B4-85885-01-00

—
Out of stock

26

SEAL

5VN-14467-00-00

—
Out of stock

27

BOLT, HEXAGON SOCKET HEAD

90110-06069-00

—
Out of stock

28

SENSOR, PRESSURE

5PS-82380-00-00

—
Out of stock

29

BOLT(4TW)

97017-05016-00

—
Out of stock

30

WASHER(1RW)

92907-05600-00

—
Out of stock

31

CLIP(42X)

90467-07093-00

—
Out of stock
