2012 Yamaha Road Star S CA (XV17ASBCB) Headlight Diagram

← All diagrams

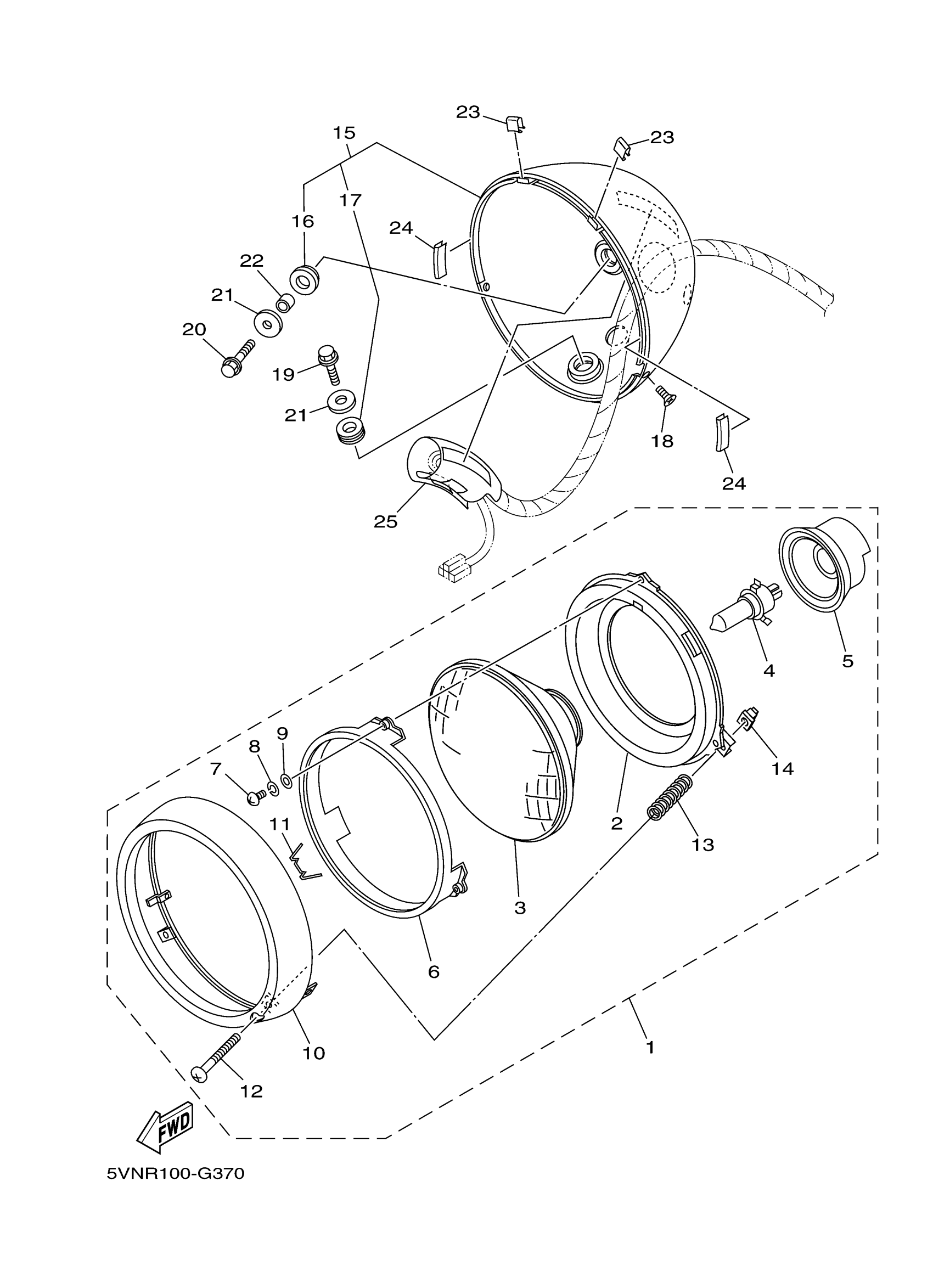

Find the part on the Headlight diagram for your 2012 Yamaha Road Star S CA (XV17ASBCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Road Star S CA (XV17ASBCB) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

5VN-84310-00-00

—
Out of stock

2

RING, MOUNTING

5VN-84394-00-00

—
Out of stock

3

LENS ASSY

4NK-84320-00-00

1
Out of stock

4

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

5

COVER, SOCKET

3SX-84397-00-00

—
Out of stock

6

RING, RETAINING

2F9-84395-00-00

1
Out of stock

7

SCREW, PAN HEAD (713)

98580-04008-00

1
Out of stock

8

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

9

WASHER, PLAIN

5VN-84344-00-00

—
Out of stock

10

RIM, HEADLIGHT

5VN-84315-00-00

1
Out of stock

11

SPRING, REFLECTOR SET (FRAN)

290-84124-21-00

—
Out of stock

12

SCREW 214841316100

90157-04001-00

1
Out of stock

13

SPRING, ADJUST

341-84332-60-00

1
Out of stock

14

NUT, ADJUST

198-84334-60-00

1
Out of stock

15

BODY ASSY

4WM-84330-00-00

1
Out of stock

16

DAMPER, HEADLIGHT 1

42X-84366-00-00

—
Out of stock

17

DAMPER, HEADLIGHT 1

4WM-84366-00-00

—
Out of stock

18

SCREW, OVAL HEAD (1A0)

90152-05005-00

—
Out of stock

19

BOLT, FLANGE(2UJ)

95024-06016-00

—
Out of stock

20

BOLT, SMALL FLANGE

95027-06025-00

—
Out of stock

21

WASHER, PLATE

90201-06086-00

—
Out of stock

22

COLLAR(4NK)

90387-0610J-00

—
Out of stock

23

SEAL

5JW-23844-00-00

—
Out of stock

24

SEAL

5VN-23844-00-00

1
Out of stock

25

HOLDER, 1

3D8-8411T-00-00

—
Out of stock
