2012 Yamaha Road Star S CA (XV17ASBCB) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2012 Yamaha Road Star S CA (XV17ASBCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

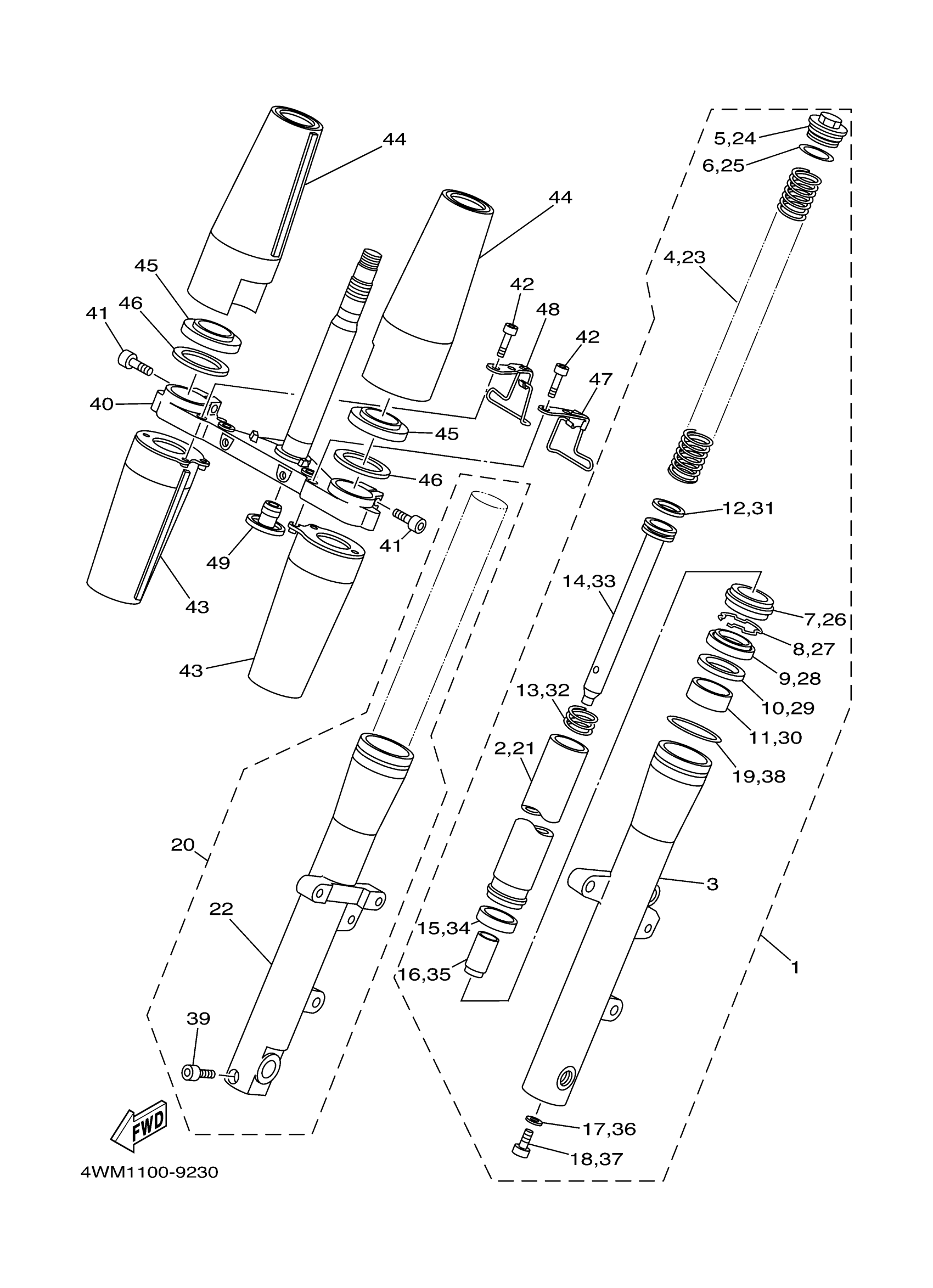

2012 Yamaha Road Star S CA (XV17ASBCB) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

5MB-23102-01-00

—
Out of stock

2

INNER TUBE COMP.1

4WM-23110-00-00

—
Out of stock

3

TUBE, OUTER (LEFT)

5MB-23126-00-00

—
Out of stock

4

SPRING, FRONT FORK

4WM-23141-00-00

—
Out of stock

5

BOLT, CAP

5MB-23111-00-00

1
Out of stock

6

O-RING

4NK-23147-00-00

1
Out of stock

7

SEAL, DUST

4NK-23144-00-00

—
Out of stock

8

RING, SNAP

34L-23153-00-00

—
Out of stock

9

OIL SEAL

4NK-23145-00-00

1
Out of stock

10

WASHER, OIL SEAL

4NK-23146-00-00

1
Out of stock

11

METAL, SLIDE 1

4NK-23125-00-00

—
Out of stock

12

RING, PISTON

4NK-23157-00-00

1
Out of stock

13

SPRING, REBOUND

4NK-23151-00-00

—
Out of stock

14

PISTON, FRONT FORK

4WM-23171-00-00

—
Out of stock

15

METAL, SLIDE 2

4NK-23135-01-00

1
Out of stock

16

SPACER, OIL LOCK

4WM-23166-00-00

—
Out of stock

17

GASKET

3MA-23163-10-00

—
Out of stock

18

BOLT, HEXAGON SOCKET HEAD

4NK-23181-00-00

—
Out of stock

19

GUIDE, BOOT

4NK-23193-00-00

—
Out of stock

20

FRONT FORK ASSY (R.H)

5MB-23103-01-00

—
Out of stock

21

INNER TUBE COMP.1

4WM-23110-00-00

—
Out of stock

22

TUBE, OUTER (RIGHT)

5MB-23136-00-00

—
Out of stock

23

SPRING, FRONT FORK

4WM-23141-00-00

—
Out of stock

24

BOLT, CAP

5MB-23111-00-00

1
Out of stock

25

O-RING

4NK-23147-00-00

1
Out of stock

26

SEAL, DUST

4NK-23144-00-00

—
Out of stock

27

RING, SNAP

34L-23153-00-00

—
Out of stock

28

OIL SEAL

4NK-23145-00-00

1
Out of stock

29

WASHER, OIL SEAL

4NK-23146-00-00

1
Out of stock

30

METAL, SLIDE 1

4NK-23125-00-00

—
Out of stock

31

RING, PISTON

4NK-23157-00-00

1
Out of stock

32

SPRING, REBOUND

4NK-23151-00-00

—
Out of stock

33

PISTON, FRONT FORK

4WM-23171-00-00

—
Out of stock

34

METAL, SLIDE 2

4NK-23135-01-00

1
Out of stock

35

SPACER, OIL LOCK

4WM-23166-00-00

—
Out of stock

36

GASKET

3MA-23163-10-00

—
Out of stock

37

BOLT, HEXAGON SOCKET HEAD

4NK-23181-00-00

—
Out of stock

38

GUIDE, BOOT

4NK-23193-00-00

—
Out of stock

39

BOLT, SOCKET

91314-08035-00

—
Out of stock

40

UNDER BRACKET COMP.

4WM-23340-01-00

—
Out of stock

41

BOLT, SOCKET

91317-08030-00

—
Out of stock

42

BOLT, HEXAGON SOCKET HEAD

4NK-23181-10-00

—
Out of stock

43

COVER, LOWER 1

5MB-23123-00-00

—
Out of stock

44

COVER, UPPER 1

5MB-23121-00-00

—
Out of stock

45

GASKET

4NK-23163-00-00

—
Out of stock

46

WASHER, FELT

4NK-23165-00-00

—
Out of stock

47

HOLDER, BRAKE HOSE 2

4WM-25876-00-00

—
Out of stock

48

HOLDER, BRAKE HOSE

4WM-25887-00-00

—
Out of stock

49

COVER, LOWER 1

4KM-23123-01-00

—
Out of stock
