2012 Yamaha Road Star S CA (XV17ASBCB) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2012 Yamaha Road Star S CA (XV17ASBCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

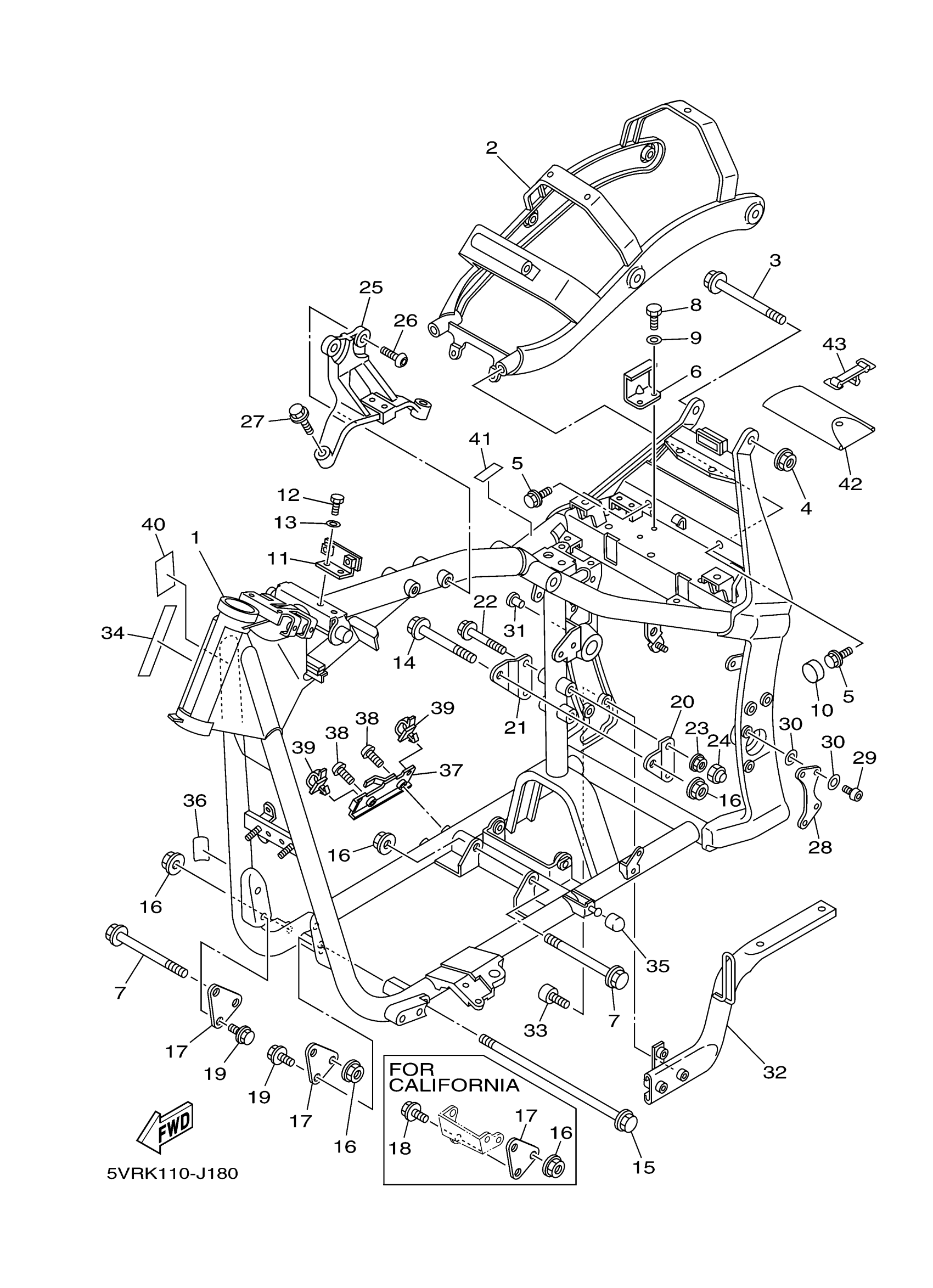

2012 Yamaha Road Star S CA (XV17ASBCB) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

5VN-21110-20-00

1
Out of stock

2

REAR FRAME COMP.

5VN-21190-00-00

—
Out of stock

3

BOLT, FLANGE

90105-12016-00

—
Out of stock

4

NUT, SELF-LOCKING

90185-12002-00

1
Out of stock

5

BOLT, FLANGE

95817-10035-00

1

$6.85

In stock

6

BRKT

5VN-2115C-00-00

—
Out of stock

7

BOLT, FLANGE

90105-12087-00

—
Out of stock

8

BOLT

97027-05010-00

—

$5.62

In stock

9

WASHER(1RW)

92907-05600-00

1
Out of stock

10

CAP, TOOL BOX

4WM-21399-00-00

1
Out of stock

11

BRACKET, SEAT

5VN-2134M-00-00

—
Out of stock

12

BOLT

97027-05010-00

—

$5.62

In stock

13

WASHER(1RW)

92907-05600-00

1
Out of stock

14

BOLT, WASHER BASED(36Y)

90105-12309-00

1

$9.77

In stock

15

BOLT, WASHER BASED

90105-126A6-00

—
Out of stock

16

NUT, U FLANGE

95607-12200-00

—

$5.43

In stock

17

STAY, ENGINE 5

4WM-21314-00-00

—
Out of stock

19

BOLT, FLANGE(3HP)

95817-10016-00

—

$6.17

In stock

20

STAY, ENGINE 2

4WM-21315-00-00

—
Out of stock

21

STAY, ENGINE 3

4WM-21316-00-00

—
Out of stock

22

BOLT, WASHER BASED(4HM)

90105-10737-00

—

$9.82

In stock

23

NUT, SELF-LOCKING(JN5)

95607-10200-00

—

$3.32

In stock

24

CAP

5YU-2143A-00-00

1

$4.51

In stock

25

STAY, ENGINE 3

5VN-21317-10-00

—
Out of stock

26

BOLT,HEX. SOCKET BUTTON

90111-10047-00

—

$3.86

In stock

27

BOLT, FLANGE

95817-10035-00

1

$6.85

In stock

28

STAY 1

5VN-2137F-00-00

—
Out of stock

29

BOLT

90111-10003-00

—
Out of stock

30

WASHER, PLATE

90201-11013-00

—
Out of stock

31

PLUG (341-26329-00)

90338-09012-00

—

$7.26

In stock

32

STAY, MUFFLER 1

5MB-21445-00-00

—
Out of stock

33

BOLT, SOCKET

91317-10025-00

—

$6.17

In stock

34

PROTECTOR

3D8-2117G-00-00

1

$5.40

In stock

35

STOPPER, MAIN STAND

3VR-27114-00-00

—
Out of stock

36

SEAL

5VN-21268-00-00

1

$12.14

In stock

37

PLATE, CONNECTOR

5VN-8257V-00-00

—
Out of stock

38

BOLT, BUTTON

92017-06020-00

—

$2.57

In stock

39

CLAMP

90464-07001-00

—

$1.32

In stock

40

SEAL

5BM-21268-00-00

—
Out of stock

41

OIL, LABEL

5VP-1548B-00-00

—
Out of stock

42

TOOL KIT

5VN-28100-00-00

—
Out of stock

43

BAND, TOOL

46X-21376-00-00

—
Out of stock
