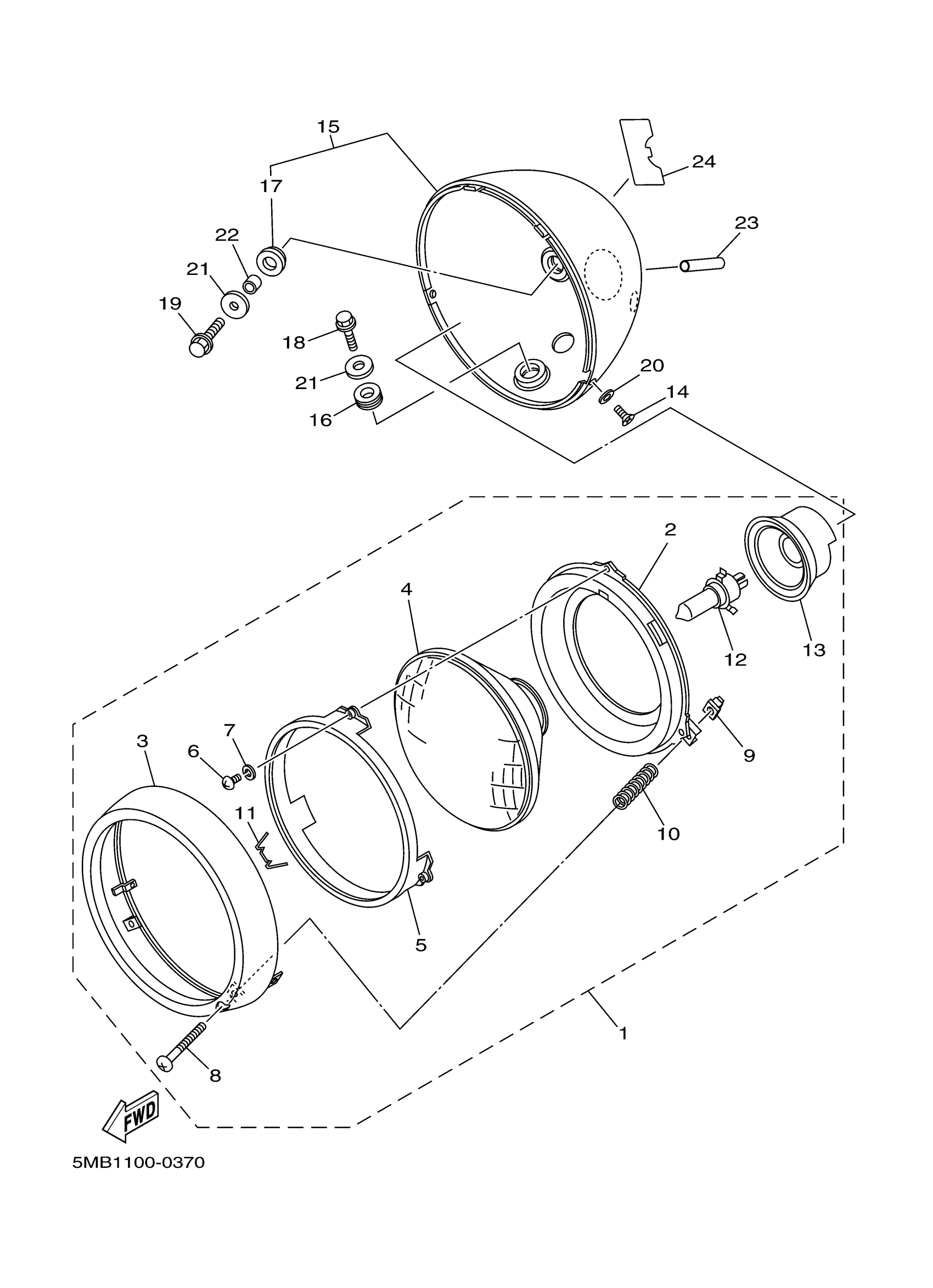

Yamaha XV1600ASMC (ROAD STAR MM CA) 5MB2 2000 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

4WM-84310-00-00

Unavailable

2

RING, MOUNTING

4NK-84394-00-00

$71.13

3

RIM, HEADLIGHT

5VN-84315-00-00

$239.98

4

LENS ASSY

4NK-84320-00-00

$204.02

5

RING, RETAINING

2F9-84395-00-00

$53.20

6

SCREW, PAN HEAD (713)

98580-04008-00

$4.24

7

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

8

SCREW 214841316100

90157-04001-00

$5.00

9

NUT, ADJUST

198-84334-60-00

$5.99

10

SPRING, ADJUST

341-84332-60-00

$7.96

11

SPRING, REFLECTOR SET (FRAN)

290-84124-21-00

$6.29

12

BULB, HEADLIGHT

8V0-84314-10-00

$56.31

13

COVER, SOCKET

3SX-84397-00-00

Unavailable

14

SCREW, OVAL HEAD (1A0)

90152-05005-00

$2.63

15

BODY ASSY

5MB-84330-00-Y9

Unavailable

16

DAMPER, HEADLIGHT 1

4WM-84366-00-00

Unavailable

17

DAMPER, HEADLIGHT 1

42X-84366-00-00

Unavailable

18

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

19

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

20

. WASHER, PLATE

90202-05088-00

$5.71

21

WASHER, PLATE

90201-06086-00

Unavailable

22

COLLAR(4NK)

90387-0610J-00

Unavailable

23

TUBE

5MB-83781-00-00

Unavailable

24

PROTECTOR 1

5MB-2834V-00-00

Unavailable
