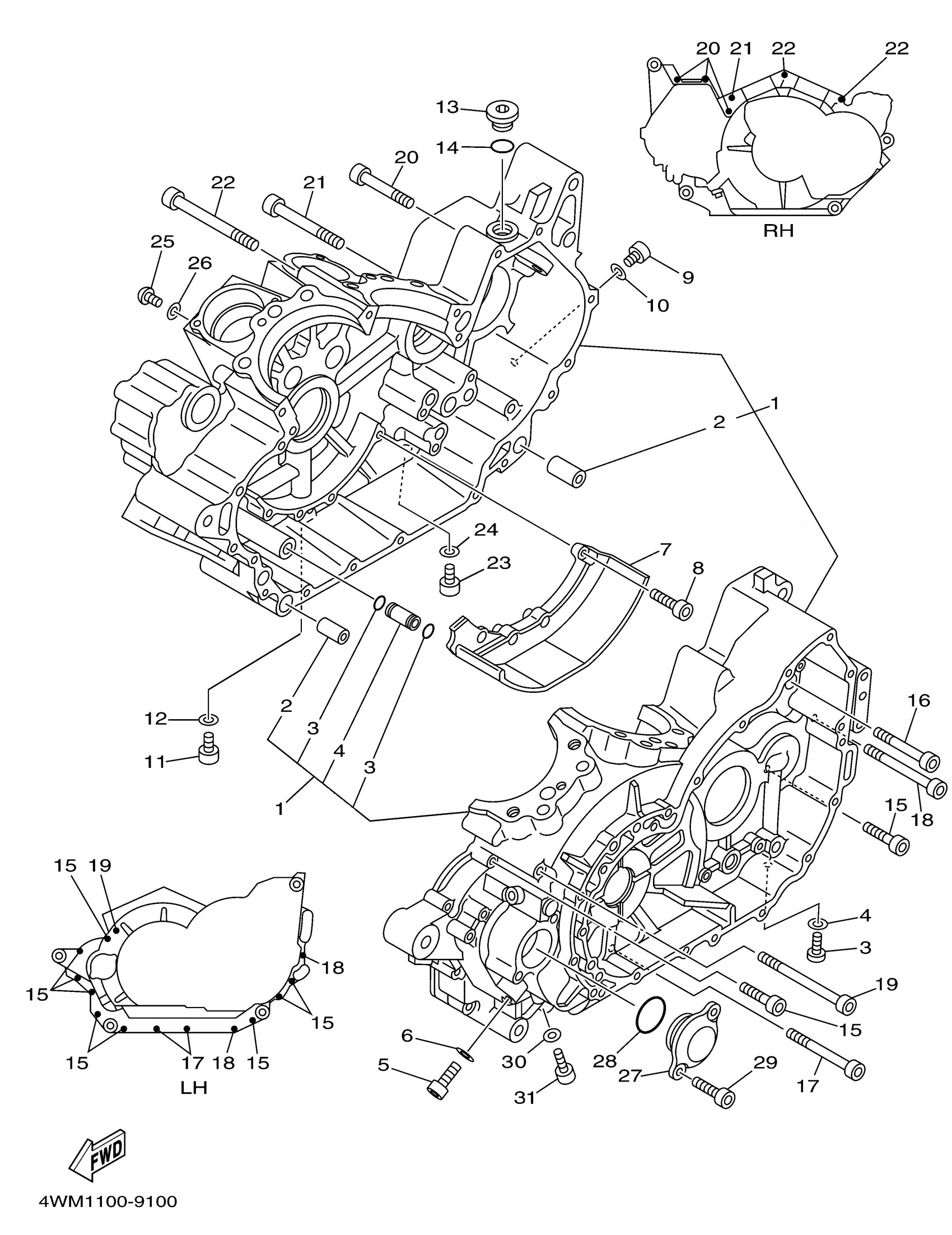

Yamaha XV1600ASMC (ROAD STAR MM CA) 5MB2 2000 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

4WM-15100-03-00

Unavailable

2

PIN, DOWEL

99530-14016-00

$2.98

3

BOLT

91312-05010-00

$4.60

4

GASKET

90430-05126-00

$5.61

5

BOLT,SOCKET

91314-08012-00

$6.77

6

GASKET

90430-08119-00

Unavailable

7

PLATE, BUFFLE 1

4WM-15123-00-00

Unavailable

8

BOLT,SOCKET

91317-06020-00

Unavailable

9

BOLT

91312-05010-00

$4.60

10

GASKET

90430-05126-00

$5.61

11

BOLT,SOCKET

91314-08012-00

$6.77

12

GASKET

90430-08119-00

Unavailable

13

PLUG

4H7-15189-00-00

$24.10

14

O-RING (713)

93210-22382-00

$5.75

15

BOLT, SOCKET

91314-06040-00

$5.75

16

BOLT, SOCKET

91314-06060-00

Unavailable

17

BOLT,SOCKET

91314-06075-00

Unavailable

18

BOLT, SOCKET

91317-06085-00

Unavailable

19

BOLT,SOCKET

91314-06105-00

Unavailable

20

BOLT, SOCKET

91314-06060-00

Unavailable

21

BOLT,SOCKET

91314-08080-00

Unavailable

22

BOLT, SOCKET

91314-08100-00

Unavailable

23

BOLT, FLANGE(2UJ)

95024-08012-00

Unavailable

24

GASKET

90430-08119-00

Unavailable

25

BOLT, BUTTON HEAD(4NK)

92014-05010-00

Unavailable

26

GASKET

90430-05126-00

$5.61

27

COVER, CAP

4WM-15417-01-00

Unavailable

28

O-RING (5Y1)

93210-37532-00

Unavailable

29

BOLT, SOCKET

91314-06016-00

Unavailable

30

GASKET

90430-05126-00

$5.61

31

BOLT

91312-05010-00

$4.60
