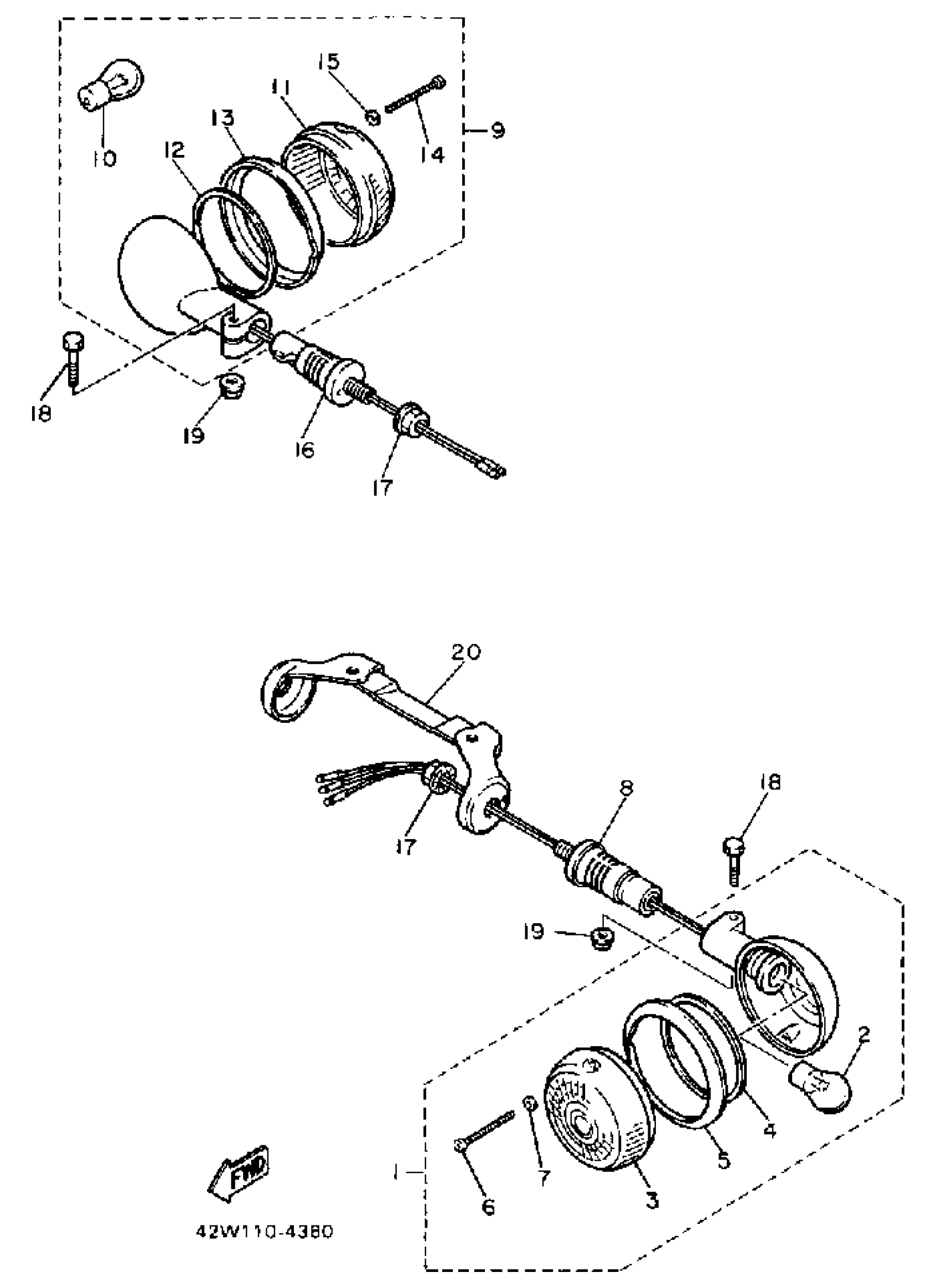

Yamaha XV1100SC (VIRAGO 1100 CA) 1986 TURNSIGNAL Diagram
#
Description
Price
1
FRT FLSHR LITE ASSEMBLY
42H-83310-K0-00
Unavailable
3
LENS, FLASHER
42X-83312-09-00
Unavailable
5
. LENS, RIM
42H-83363-00-00
Unavailable
6
SCREW, COUNTERSUNK
90151-03003-00
Unavailable
7
WASHER, SPECIAL
3AA-84327-00-00
Unavailable
9
R FLSHR LITE ASSEMBLY
42H-83330-K0-00
Unavailable
10
. BULB (12V-32CP)
256-83311-70-XX
Unavailable
11
LENS, FLASHER
42X-83312-09-00
Unavailable
13
. LENS, RIM
42H-83363-00-00
Unavailable
14
SCREW, COUNTERSUNK
90151-03003-00
Unavailable
15
WASHER, SPECIAL
3AA-84327-00-00
Unavailable
17
NUT(3GG)
90179-12588-00
Unavailable
18
BOLT, HEXAGON
97017-06030-00
Unavailable
19
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
20
STAY, FLASHER 2
42X-83328-00-00
Unavailable
