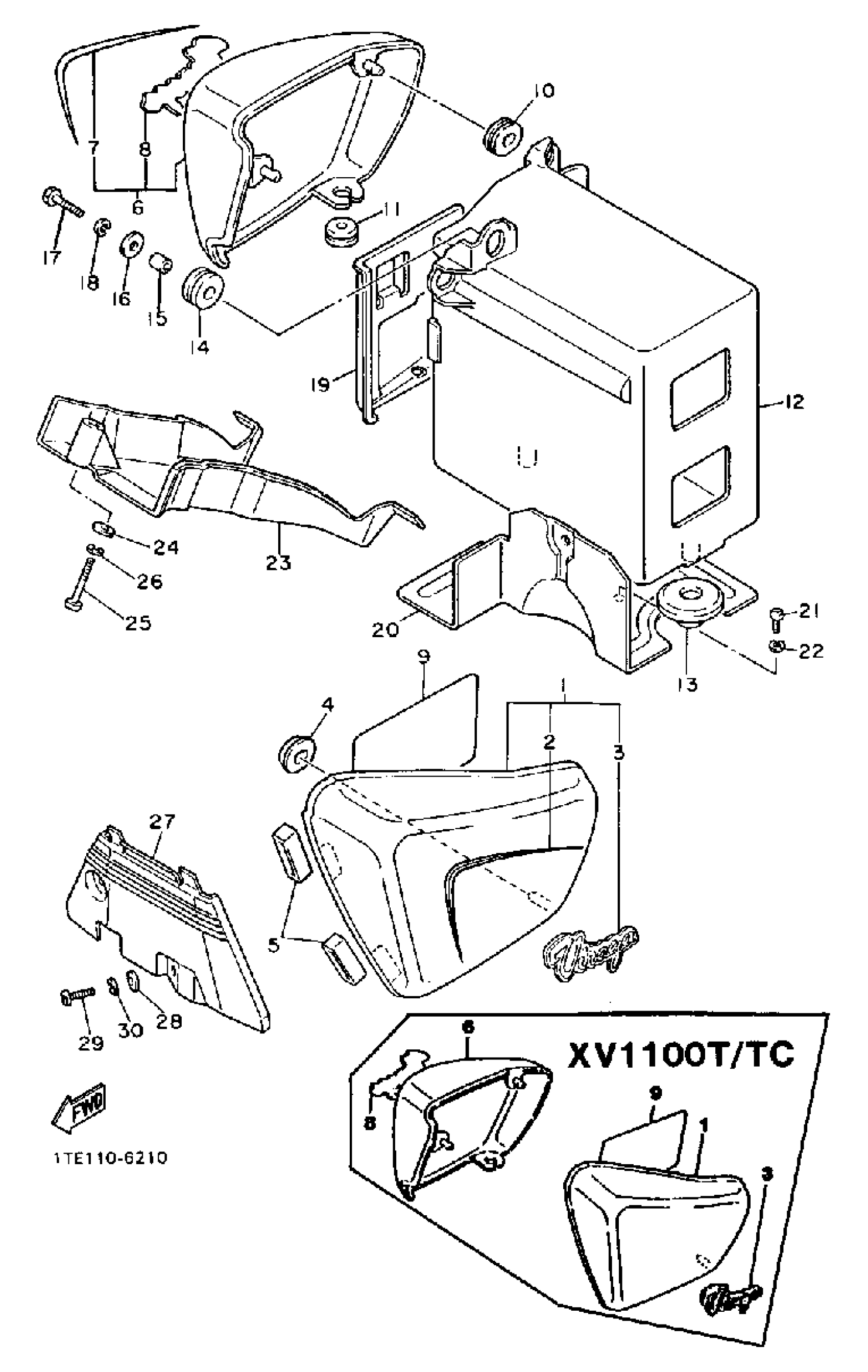

Yamaha XV1100SC (VIRAGO 1100 CA) 1986 SIDE COVER Diagram
#
1
COVER, SIDE 1
1TA-Y2171-00-1X
Unavailable
1
COVER, SIDE 1
1TA-Y2171-10-2X
Unavailable
1
COVER, SIDE 1
42X-21711-00-TJ
Unavailable
1
COVER, SIDE 1
42X-21711-00-UE
Unavailable
2
. GRAPHIC (S/SC) (MARSHAL GOLD) (NEW YAMAHA BLACK)
1TA-2173E-00-00
Unavailable
2
. GRAPHIC (S/SC) (NEW YAMAHA BLACK) (APPLE RED)
1TA-2173E-10-00
Unavailable
3
EMBLEM 2
42X-21782-00-00
Unavailable
6
COVER, SIDE 2
1TA-Y2172-00-1X
Unavailable
6
COVER, SIDE 2
1TA-Y2172-10-2X
Unavailable
6
COVER, SIDE 2
42X-21721-00-TJ
Unavailable
6
COVER, SIDE 2
42X-21721-00-UE
Unavailable
7
. GRAPHIC (S/SC) (MARSHAL GOLD) (NEW YAMAHA BLACK)
1TA-2173F-00-00
Unavailable
7
. GRAPHIC (S/SC) (NEW YAMAHA BLACK) (APPLE RED)
1TA-2173F-10-00
Unavailable
8
EMBLEM 2
42X-21782-00-00
Unavailable
9
PLATE, SPEC (SC)
1TA-21687-60-00
Unavailable
9
PLATE, SPEC (TC)
1TA-21687-70-00
Unavailable
9
PLATE, SPEC. (S)
1TE-21683-60-00
Unavailable
9
PLATE, SPEC (T)
1TE-21683-70-00
Unavailable
11
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
12
BOX, TOOL
42X-21171-00-00
Unavailable
13
GROMMET(42X)
90480-20384-00
Unavailable
14
GROMMET (2N3)
90480-16233-00
Unavailable
15
COLLAR
90387-06113-00
Unavailable
16
WASHER, PLATE
90201-06380-00
Unavailable
17
BOLT, HEXAGON
97017-06020-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
LID
42X-28185-00-00
Unavailable
20
COVER
42X-2172W-02-00
Unavailable
21
COVER
42X-2172W-02-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
PLATE
42X-2176E-00-00
Unavailable
24
WASHER, PLATE
90201-06049-00
Unavailable
25
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
26
WASHER, SPRING
92995-06100-00
Unavailable
27
COVER
42X-2117F-00-00
Unavailable
28
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
29
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
30
WASHER, SPRING
92907-06100-00
Unavailable
