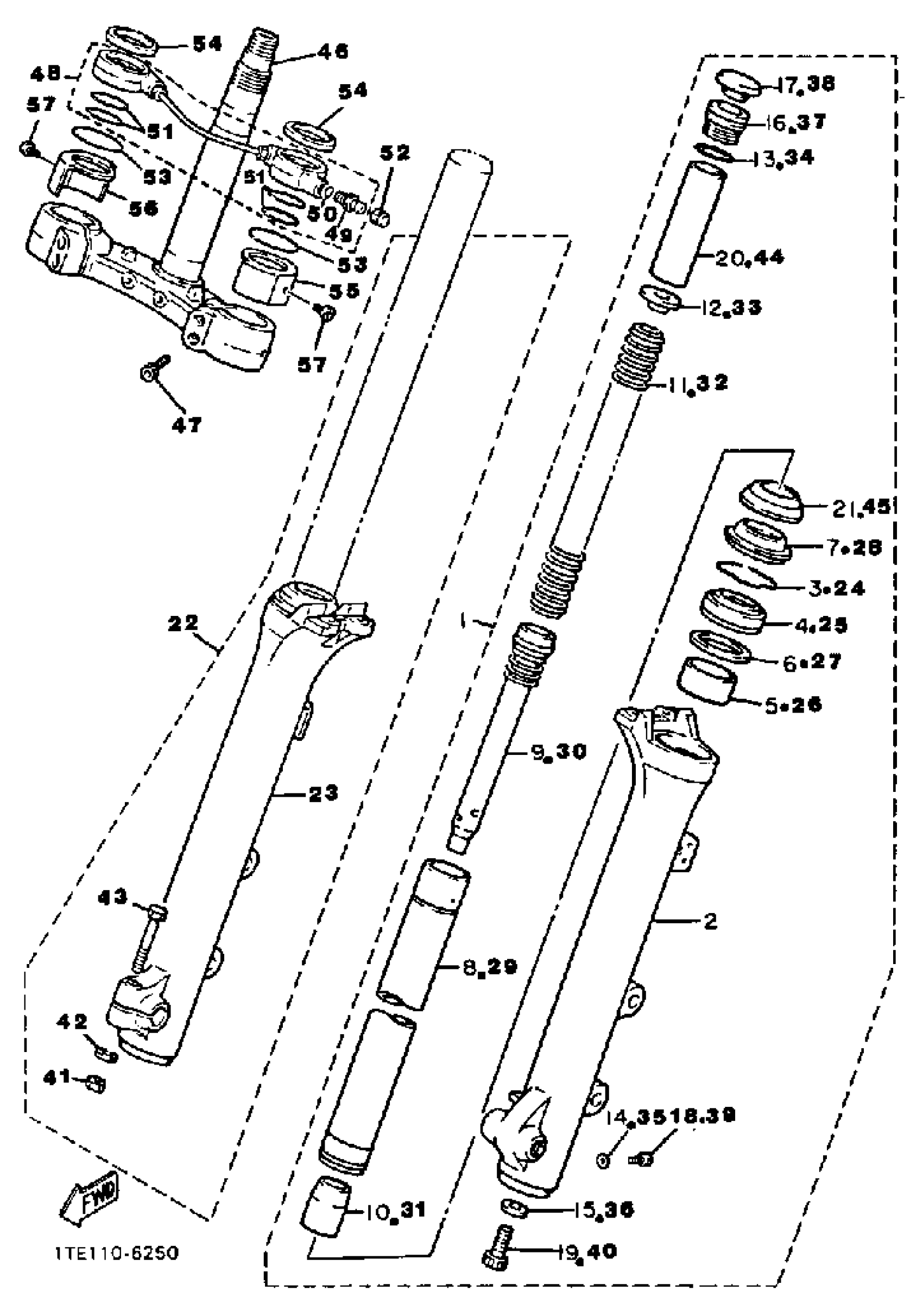

Yamaha XV1100SC (VIRAGO 1100 CA) 1986 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY LH (LH)

1TA-23102-00-00

Unavailable

2

TUBE,OUTER(LEFT)

3JK-23126-10-00

Unavailable

3

RING, SNAP

3R4-23153-00-00

$7.18

4

OIL SEAL

3EN-23145-00-00

$21.93

5

METAL, SLIDE 1

2YK-23125-00-00

$37.47

6

WASHER

4V2-23146-L0-00

$23.98

7

SEAL, DUST

42H-23144-01-00

Unavailable

8

. INNER TUBE COMP1

1TA-23110-00-00

Unavailable

9

. CYLINDER COMP, FRONT FORK

33M-23170-00-00

Unavailable

10

TAPER SPINDLE

1W1-23173-L0-00

$15.74

11

. SPRING, FRONT FORK

42H-23141-00-00

Unavailable

12

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

13

O-RING

1W1-23114-L0-00

$8.31

14

GASKET, DRAIN PLUG

122-23129-00-00

$5.60

15

GASKET

509-23158-L0-00

$13.67

16

. BOLT, CAP

31A-23111-31-00

Unavailable

17

CAP, FRONT FORK

42H-23168-00-00

Unavailable

18

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.88

19

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

20

. SPACER

42H-23118-00-00

Unavailable

21

SEAL, DUST

42H-23144-01-00

Unavailable

22

FRONT FORK ASSEMBLY RH (R.H)

1TA-23103-00-00

Unavailable

23

TUBE,OUTER(RIGHT)

3JK-23136-10-00

Unavailable

24

RING, SNAP

3R4-23153-00-00

$7.18

25

OIL SEAL

3EN-23145-00-00

$21.93

26

METAL, SLIDE 1

2YK-23125-00-00

$37.47

27

WASHER

4V2-23146-L0-00

$23.98

28

SEAL, DUST

42H-23144-01-00

Unavailable

29

. INNER TUBE COMP1

1TA-23110-00-00

Unavailable

30

. CYLINDER COMP, FRONT FORK

33M-23170-00-00

Unavailable

31

TAPER SPINDLE

1W1-23173-L0-00

$15.74

32

. SPRING, FRONT FORK

42H-23141-00-00

Unavailable

33

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

34

O-RING

1W1-23114-L0-00

$8.31

35

GASKET, DRAIN PLUG

122-23129-00-00

$5.60

36

GASKET

509-23158-L0-00

$13.67

37

. BOLT, CAP

31A-23111-31-00

Unavailable

38

CAP, FRONT FORK

42H-23168-00-00

Unavailable

39

. UNAVAILABLE IN PRICE BOOK (122-23119-01)

4H7-23119-01-00

Unavailable

40

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

41

NUT(6L2)

95333-08600-00

Unavailable

42

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

43

BOLT (1E6)

90101-08340-00

Unavailable

44

. SPACER

42H-23118-00-00

Unavailable

45

SEAL, DUST

42H-23144-01-00

Unavailable

46

UNDER BRACKET COMP.

2AE-23340-30-00

Unavailable

47

BOLT,SOCKET

91314-08030-00

Unavailable

48

HOSE ASSEMBLY

42H-2318J-00-00

Unavailable

49

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

50

O-RING

3J2-23147-00-00

Unavailable

51

O-RING

42H-23188-00-00

Unavailable

52

CAP, AIR VALVE

10M-23184-01-00

Unavailable

53

. RING, SNAP

42H-23153-00-00

Unavailable

54

WASHER

2H7-23163-00-00

Unavailable

55

COVER (L.H)

1RM-23132-00-00

Unavailable

56

COVER (R.H)

1RM-23132-10-00

Unavailable

57

SCREW,PANHEAD (EG9)

98580-05006-00

Unavailable
