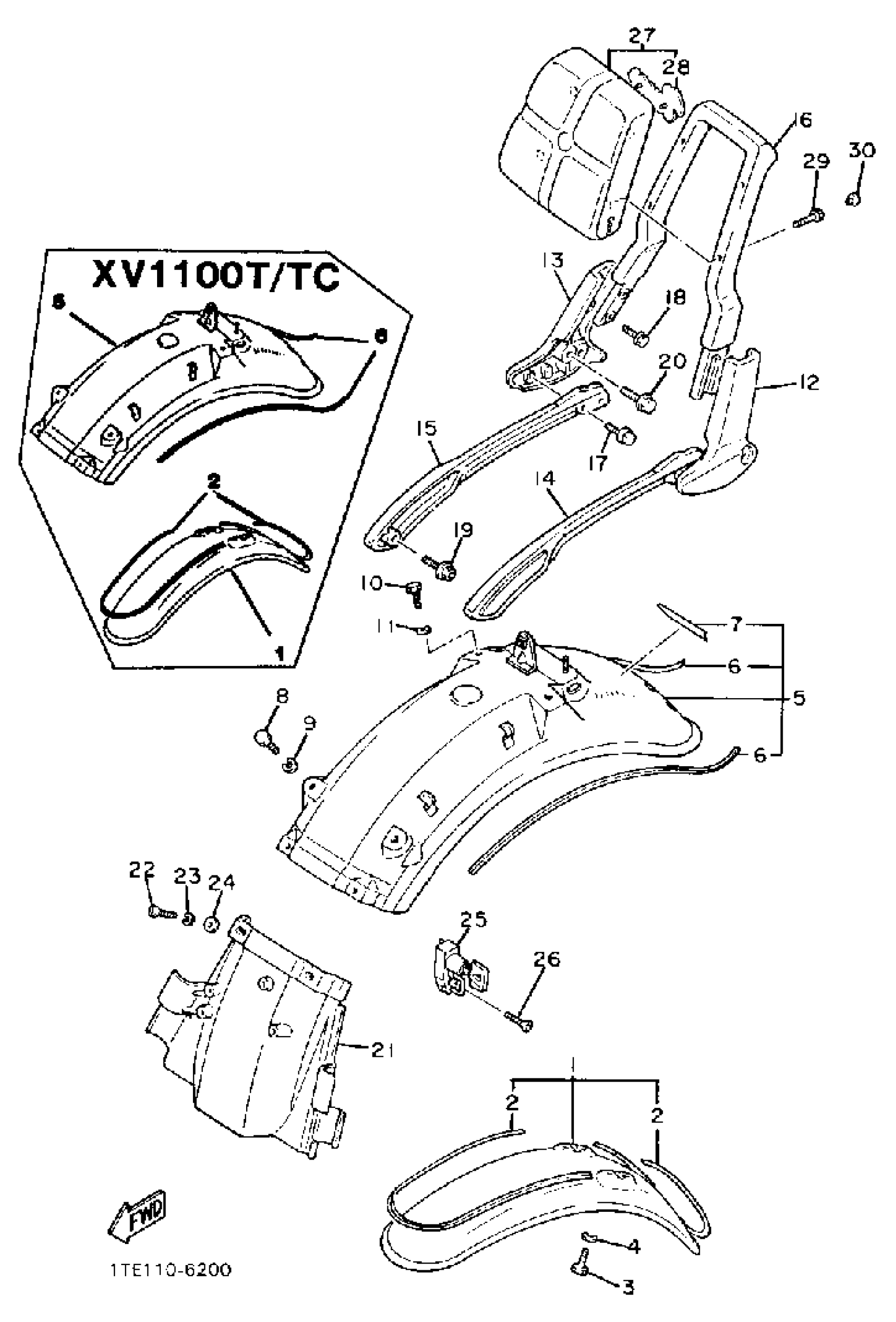

Yamaha XV1100SC (VIRAGO 1100 CA) 1986 FENDER Diagram
#
1
FENDER, FRONT
1MY-21510-00-TJ
Unavailable
1
FENDER, FRONT
1MY-21510-00-UE
Unavailable
1
FRONT FENDER ASSEMBLY
1MY-Y2150-00-3X
Unavailable
1
FRONT FENDER ASSEMBLY
1MY-Y2150-10-4X
Unavailable
2
. GRPHC SET, FRT FNDR (MARSHAL GOLD) (NEW YAMAHA BLACK)
1TA-21570-00-00
Unavailable
2
. GRPHC SET, FRT FNDR (NEW YAMAHA BLACK) (APPLE RED)
1TA-21570-10-00
Unavailable
2
. GRPHC SET, FRT FNDR
1TA-21570-20-00
Unavailable
2
. GRPHC SET, FRT FNDR
1TA-21570-30-00
Unavailable
4
WASHER, SPRING
92995-06100-00
Unavailable
5
FENDER, REAR
1RM-21610-01-TJ
Unavailable
5
FENDE, REAR
1RM-21610-01-UE
Unavailable
5
REAR FENDER
1RM-Y2161-00-3X
Unavailable
5
REAR FENDER
1RM-Y2161-10-4X
Unavailable
6
. GRAPHIC SET, RFEND (MARSHAL GOLD) (NEW YAMAHA BLACK)
1TA-2165A-00-00
Unavailable
6
. GRAPHIC SET, RFEND (NEW YAMAHA BLACK) (APPLE RED)
1TA-2165A-10-00
Unavailable
6
. GRAPHIC, SET RFEND
1TA-2165A-20-00
Unavailable
6
. GRAPHIC, SET RFEND
1TA-2165A-30-00
Unavailable
7
EMBLEM, YAMAHA
99245-00080-00
Unavailable
9
WASHER, SPRING
92995-06100-00
Unavailable
10
BOLT(62E)
97013-08012-00
Unavailable
11
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
12
STAY 1
1RM-2164F-00-00
Unavailable
13
STAY 2
1RM-2164G-00-00
Unavailable
14
STAY 3
1RM-2164H-00-00
Unavailable
15
STAY 4
1RM-2164J-00-00
Unavailable
16
GRIP 1
42H-2164A-02-00
Unavailable
17
BOLT, FLANGE
95817-06016-00
Unavailable
18
BOLT, FLANGE
95817-06016-00
Unavailable
19
SCREW
90149-08225-00
Unavailable
20
BOLT, FLANGE
95817-10020-00
Unavailable
21
GUARD, MUD
42X-21629-00-00
Unavailable
22
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
25
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
26
SCREW, FLAT
98707-06030-00
Unavailable
27
. BACK REST ASSEMBLY
1TA-2840F-00-00
Unavailable
28
.. EMBLEM
42H-24786-00-00
Unavailable
29
BOLT, SOCKET
91314-06035-00
Unavailable
30
PLUG(42H)
90338-06162-00
Unavailable
