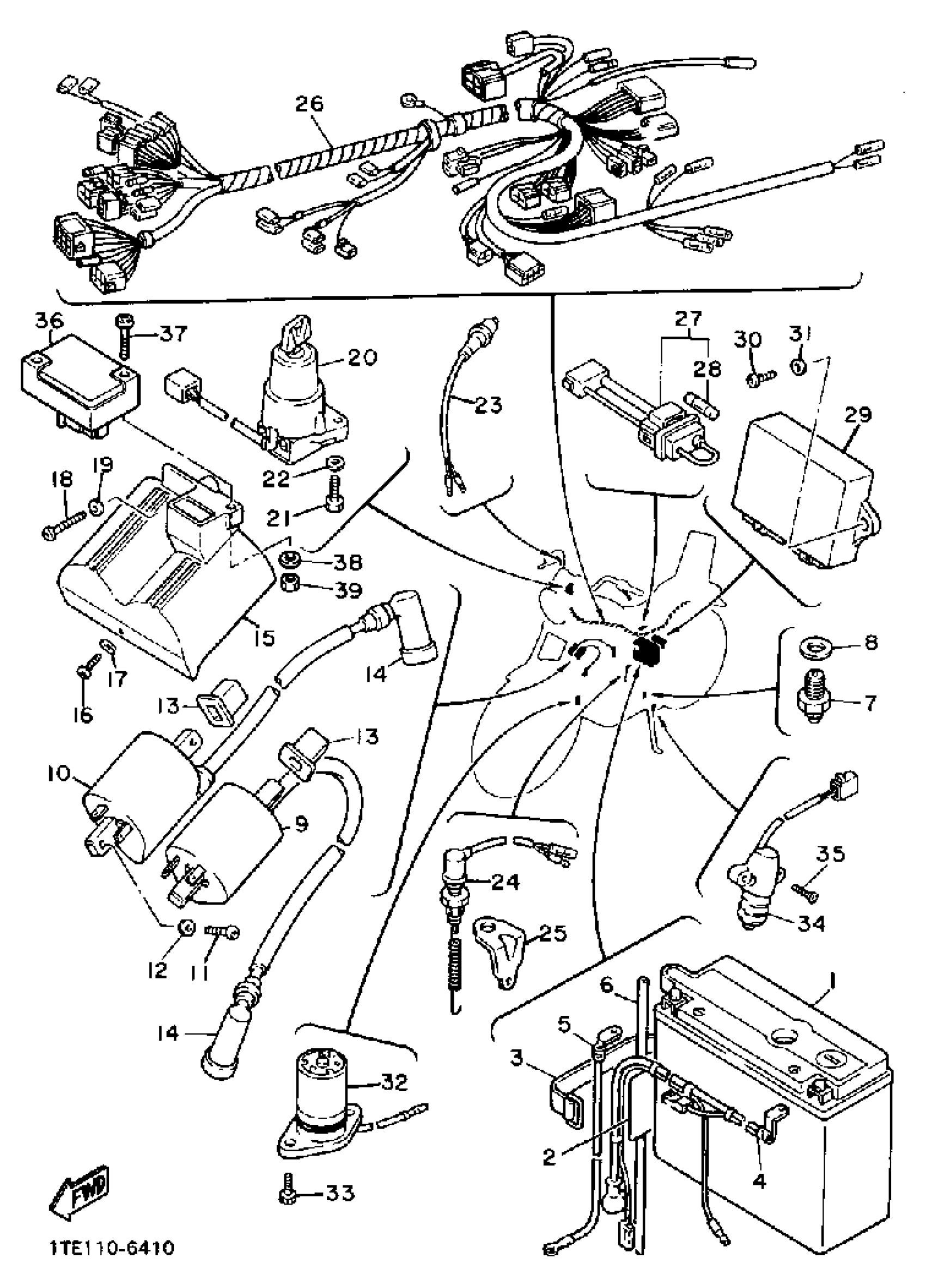

Yamaha XV1100SC (VIRAGO 1100 CA) 1986 ELECTRICAL 1 Diagram

#

Description
Price

1

SY50N18LAT YUASA BATTERY

SY5-0N18L-A0-00

Unavailable

2

LABEL, BATTERY

40A-82141-G0-00

Unavailable

3

BAND, BATTERY

1E6-82131-00-00

$27.99

4

WIRE, PLUS LEAD

42H-82115-01-00

Unavailable

5

WIRE, MINUS LEAD

42X-82116-00-00

Unavailable

6

HOSE (L1500)

90445-084J0-00

$18.99

7

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

8

GASKET (5R6)

90430-10171-00

$3.18

9

IGNITION COIL ASSEMBLY

42X-82310-70-00

Unavailable

10

IGNITION COIL ASSEMBLY

42X-82320-70-00

Unavailable

11

SCREW, PAN HEAD

98580-05020-00

Unavailable

12

WASHER, PLAIN (646)

92990-05600-00

$0.80

13

DAMPER, IGNITION COIL

42X-82317-00-00

Unavailable

14

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

15

COVER,IGNITN COIL

42X-82314-01-00

Unavailable

16

SCREW, PAN

98517-06012-00

Unavailable

17

WASHER(6TA)

92907-06600-00

Unavailable

18

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

19

WASHER(6TA)

92907-06600-00

Unavailable

20

MAIN SWITCH STEERING LOCK

42H-82501-50-00

Unavailable

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

24

STOP SWITCH ASSY

42X-82530-02-00

Unavailable

25

STAY, STOP SWITCH

1FK-82539-00-00

Unavailable

26

WIRE HARNESS ASSEMBLY

1TA-82590-00-00

Unavailable

27

FUSE HOLDER ASSEMBLY

3H5-82150-00-00

Unavailable

28

FUSE (12V 30A)

2H7-82151-00-00

Unavailable

29

IGNITOR UNIT ASSEMBLY 1

1TA-82305-20-00

Unavailable

30

SCREW, TAPPING(JA3)

97707-60520-00

Unavailable

31

WASHER, PLATE (4F4)

90201-063A5-00

Unavailable

32

OIL LEVEL GAUGE ASSEMBLY

3JK-85720-00-00

Unavailable

33

BOLT, SOCKET

91314-06016-00

Unavailable

34

SWITCH, SIDE STAND

33E-82566-00-00

Unavailable

35

SCREW, FLAT

98707-05016-00

Unavailable

36

SENSOR, PRESSURE

1TA-82380-20-00

Unavailable

37

SCREW, PAN

98517-06030-00

Unavailable

38

WASHER(6TA)

92907-06600-00

Unavailable

39

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable
