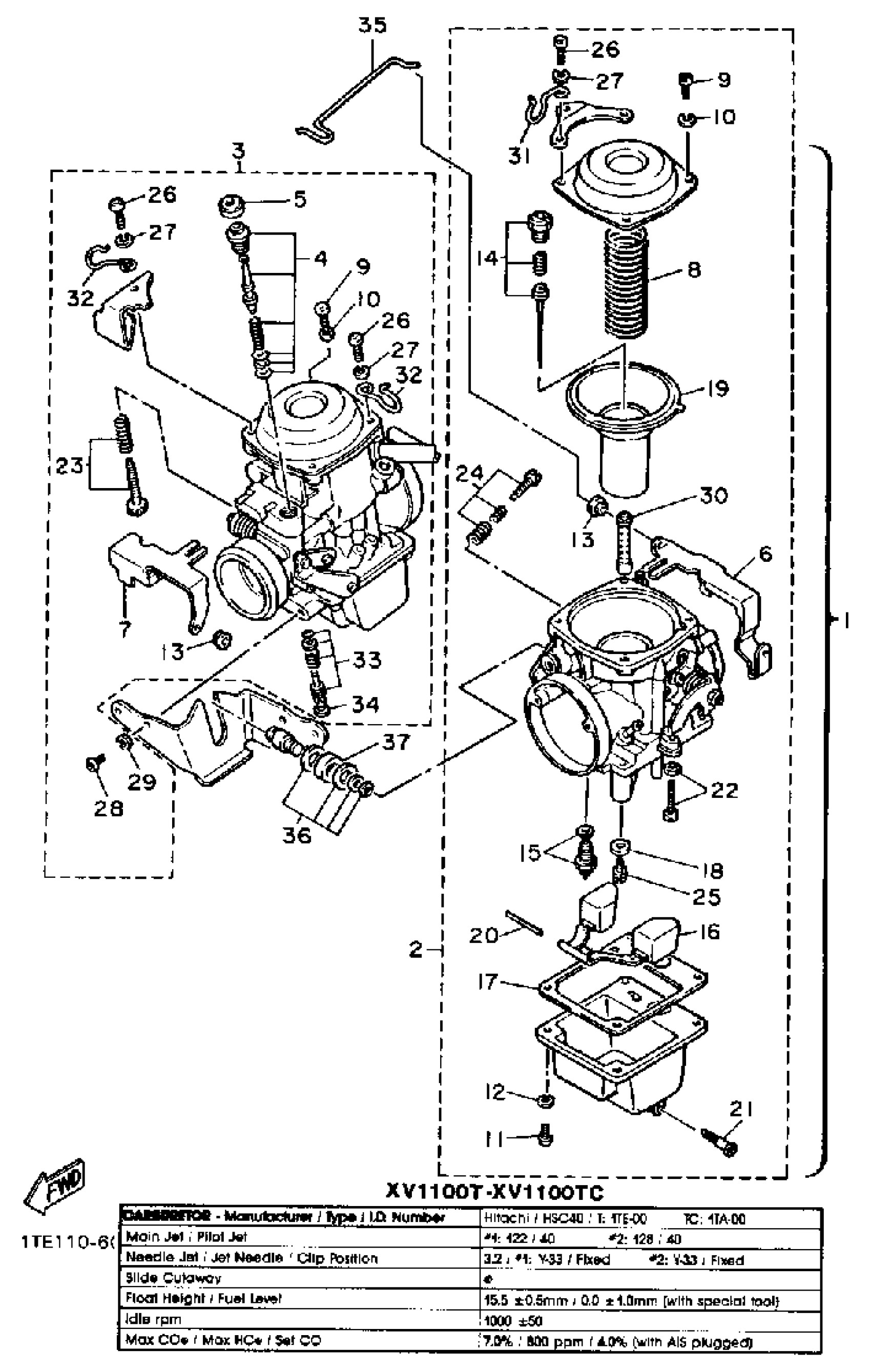

Yamaha XV1100SC (VIRAGO 1100 CA) 1986 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK (SC)
[1T-A1490-00-00
Unavailable
1
UNAVAILABLE IN PRICE BOOK (S)
[1T-E1490-00-00
Unavailable
2
CARBURETOR ASSEMBLY 1
(1TA-14901-00-00)
Unavailable
2
CARBURETOR ASSEMBLY 1
(1TE-14901-00-00)
Unavailable
3
CARBURETOR ASSEMBLY 2
(1TA-14902-00-00)
Unavailable
3
. CARBURETOR ASSEMBLY 2 (S)
1TE-14902-00-00
Unavailable
4
.. PLUNGER, STARTER
4X7-14371-01-00
Unavailable
5
.. COVER, PLUNGER CAP
4H7-14173-00-00
Unavailable
6
.. LEVER, STARTER 2
10L-14976-01-00
Unavailable
7
LEVER, STARTER 2
(10L-14976-11-00)
Unavailable
8
.. SPRING, DIAPHRAGM
4X7-14933-10-00
Unavailable
11
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
13
.. BUSH
4X7-14998-01-00
Unavailable
14
.. NEEDLE Y-33OK (4X7-14916-30)
4X7-14916-33-00
Unavailable
15
.. NEEDLE VALVE ASSEMBLY
42H-14390-00-00
Unavailable
16
.. FLOAT
10L-14985-01-00
Unavailable
17
.. GASKET, FLOAT CHMBR
10L-14984-02-00
Unavailable
18
.. WASHER, MAIN JET
4H7-14945-00-00
Unavailable
19
.. DIAPHRAGM ASSEMBLY
42H-14940-00-00
Unavailable
20
.. PIN, FLOAT
4H7-14186-00-00
Unavailable
21
.. PLUG, DRAIN
4X7-14191-01-00
Unavailable
22
.. SCREW, THROTTLE
4X7-14321-02-00
Unavailable
23
.. SCREW, THRTL STOP
4X7-14121-02-00
Unavailable
24
.. SCREW, ADJUST
4X7-14522-01-00
Unavailable
25
.. JET, MAIN (#122)
4X7-14925-22-00
Unavailable
25
.. JET, MAIN
4X7-14925-28-00
Unavailable
26
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
28
SCREW, PAN
98507-06014-00
Unavailable
29
WASHER, SPRING
92995-06100-00
Unavailable
30
.. NOZZLE, MAIN
1TA-14921-32-00
Unavailable
31
CLIP, PIPE
(22N-14139-00-00)
Unavailable
32
CLIP
(10L-14937-00-00)
Unavailable
33
.. SCREW, PILOT
10L-14923-01-00
Unavailable
34
.. CAP (10L-14118-01)
10L-14118-11-00
Unavailable
35
ROD, STARTER LEVER
(4X7-14177-01-00)
Unavailable
36
. WASHER
4X7-14962-00-00
Unavailable
37
. ROLLER
4X7-14267-00-00
Unavailable
